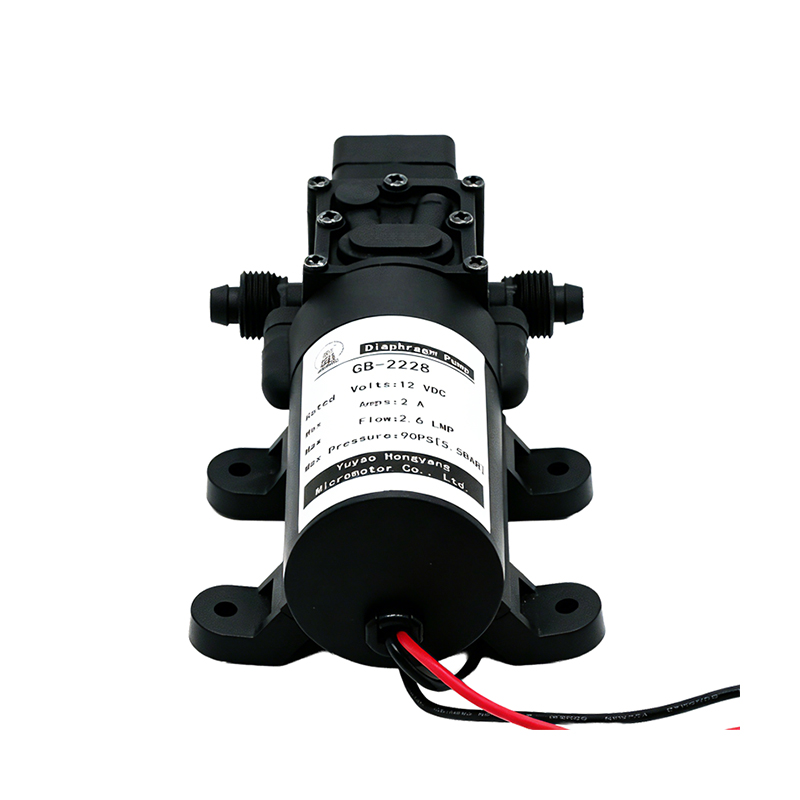

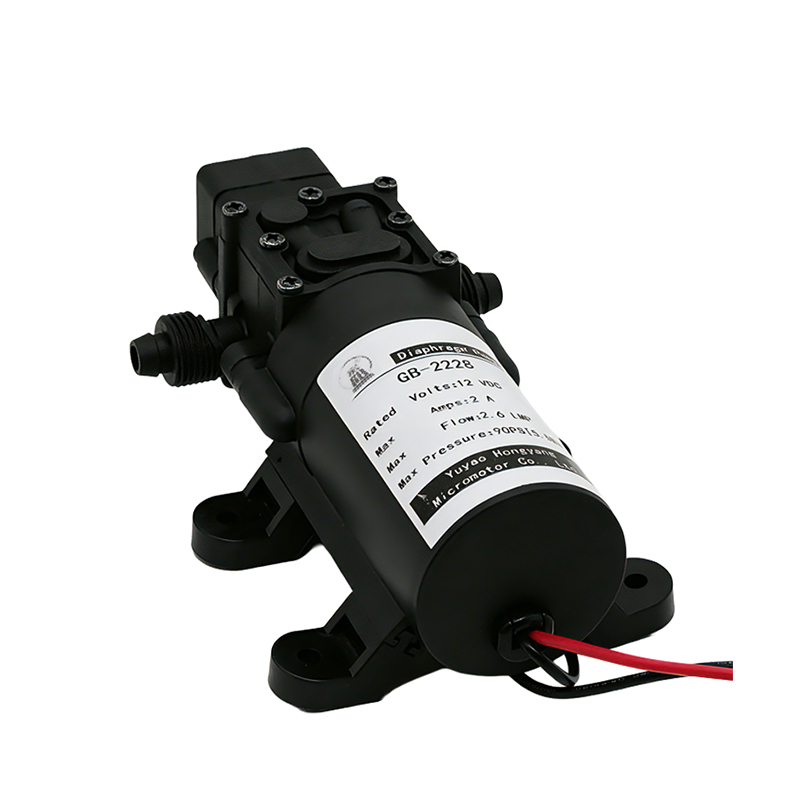

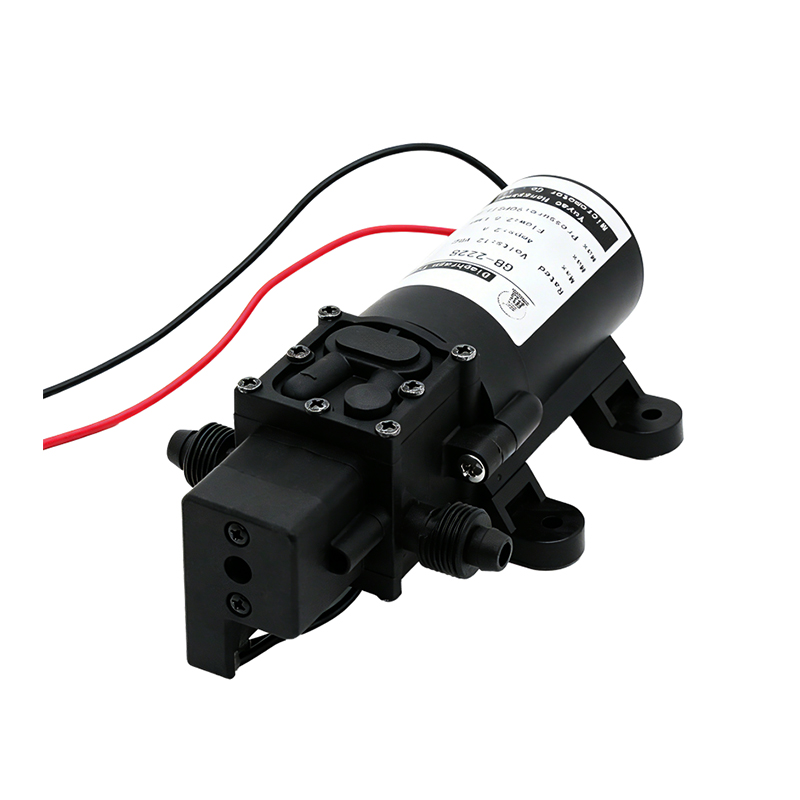

GB-2228 High-Pressure Diaphragm Water Pump with Dual-Threaded Outlet

The GB-2228 high-pressure diaphragm pump with dual threaded ports is a high-performance miniature booster pump designed for applications demanding superior sealing, installation stability, and long-term reliability. Powered by a 12V DC motor system with a rated current of 2A, it delivers a maximum flow rate of 2.6 L/min and a peak output pressure of 90 PSI (5.5 Bar), ensuring consistent, stable pressure for various water supply, spraying, and fluid transfer systems.
Unlike standard hose connections, this model features dual threaded inlet and outlet ports that connect directly to standard fittings, ensuring a secure, reliable installation and effectively minimizing the risk of leaks caused by vibration or pressure fluctuations during long-term operation. Internally, the pump utilizes high-quality diaphragm components and wear-resistant valve structures, offering exceptional durability, self-priming capabilities, and operational stability for continuous, long-duration use.
With its high-pressure output and reliable connection design, the GB-2228 is ideally suited for industrial, medical, and chemical equipment, as well as agricultural (lawn and garden) and recreational vehicle applications. It enables both equipment manufacturers and system integrators to achieve stable, efficient fluid transfer performance.

Key Features and Selling Points:
• 12V DC power supply; rated current: 2A
• Maximum flow rate: 2.6 L/min
• Maximum output pressure: 90 PSI (5.5 Bar)
• Dual threaded port design for secure connections
• Excellent sealing performance and leak resistance
• Strong self-priming capability and rapid startup response
• Long-life diaphragm structure design
• Suitable for continuous operation
• Customizable port and wiring harness options available
