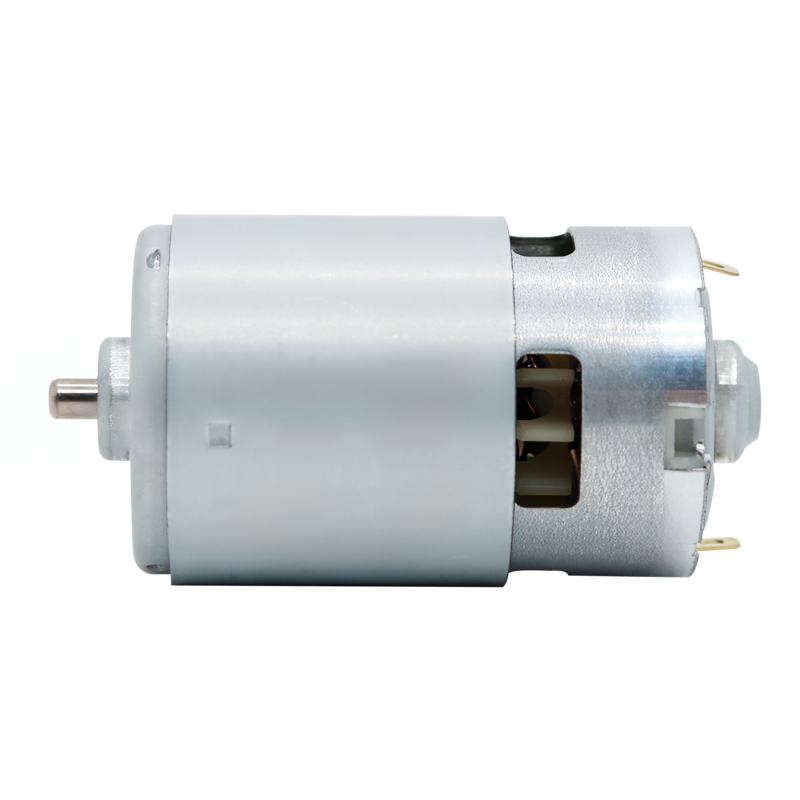

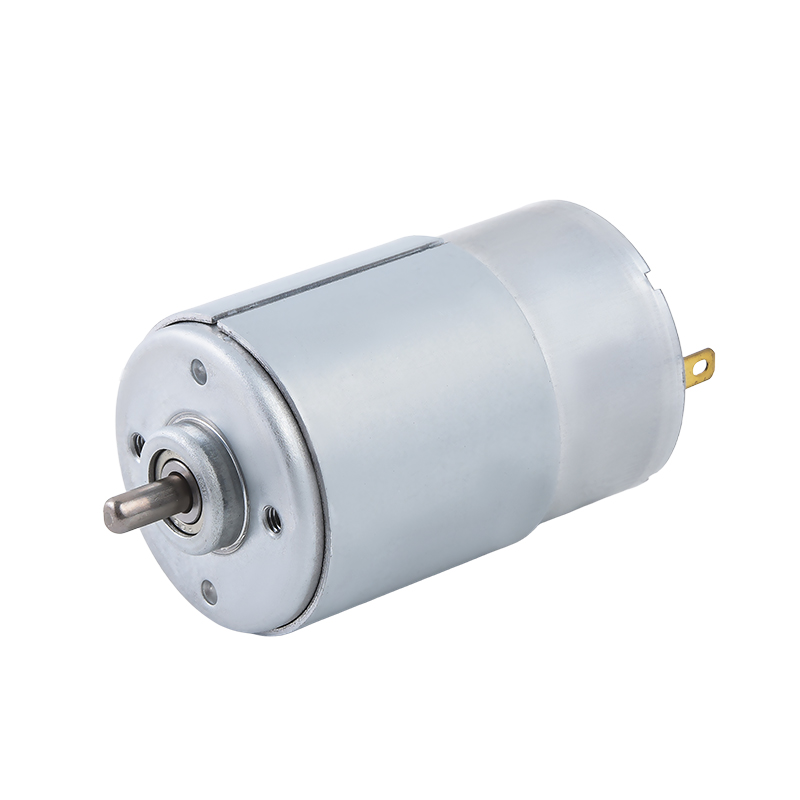

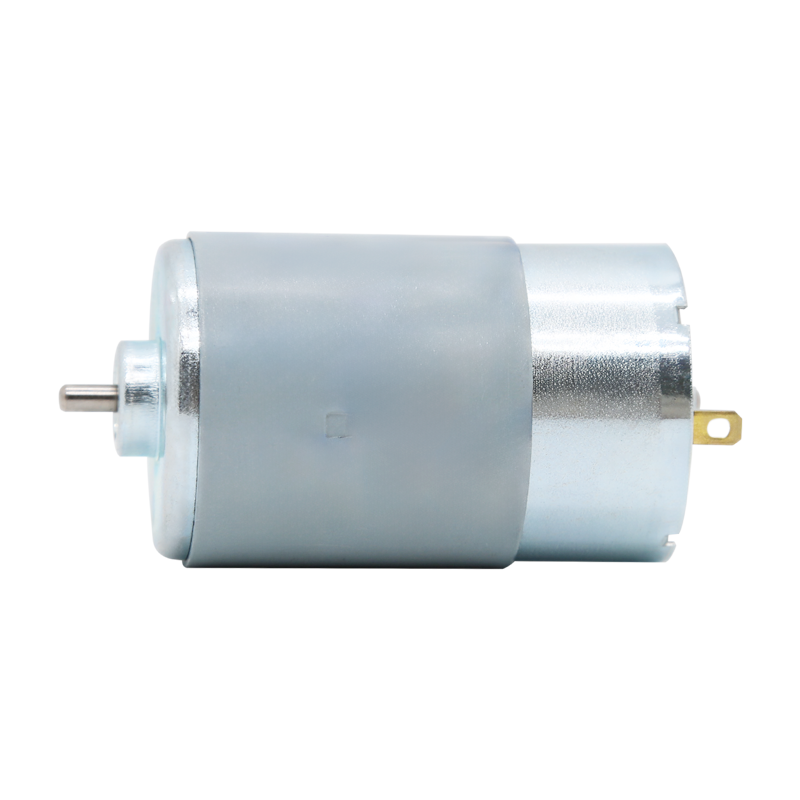

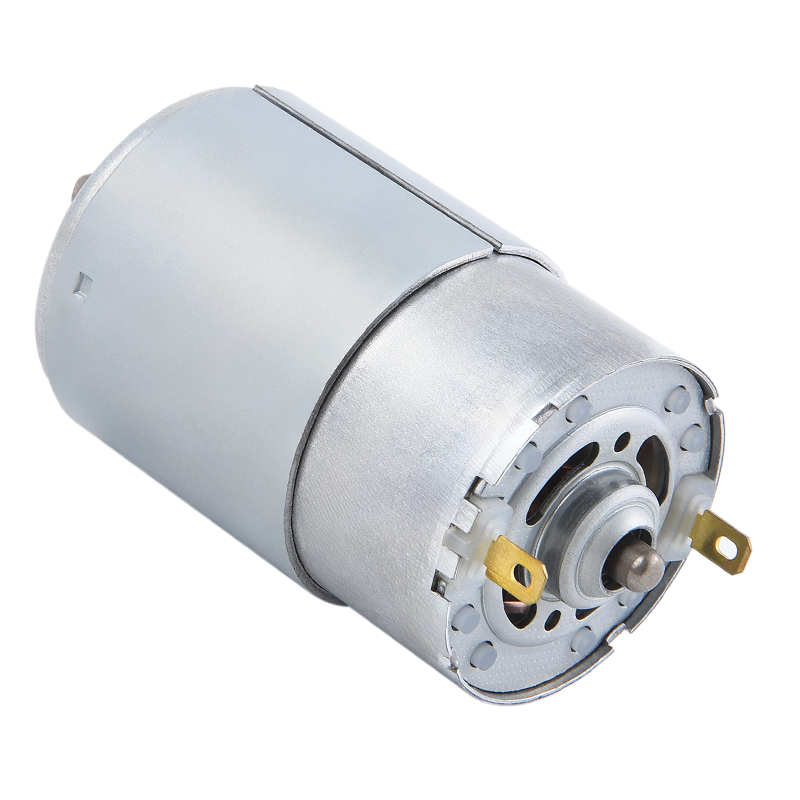

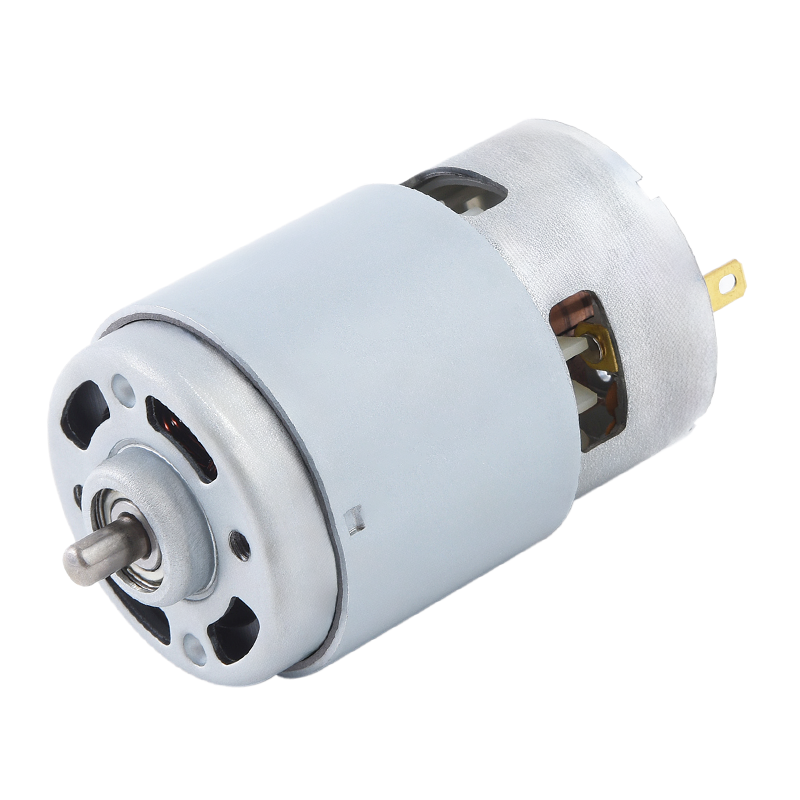

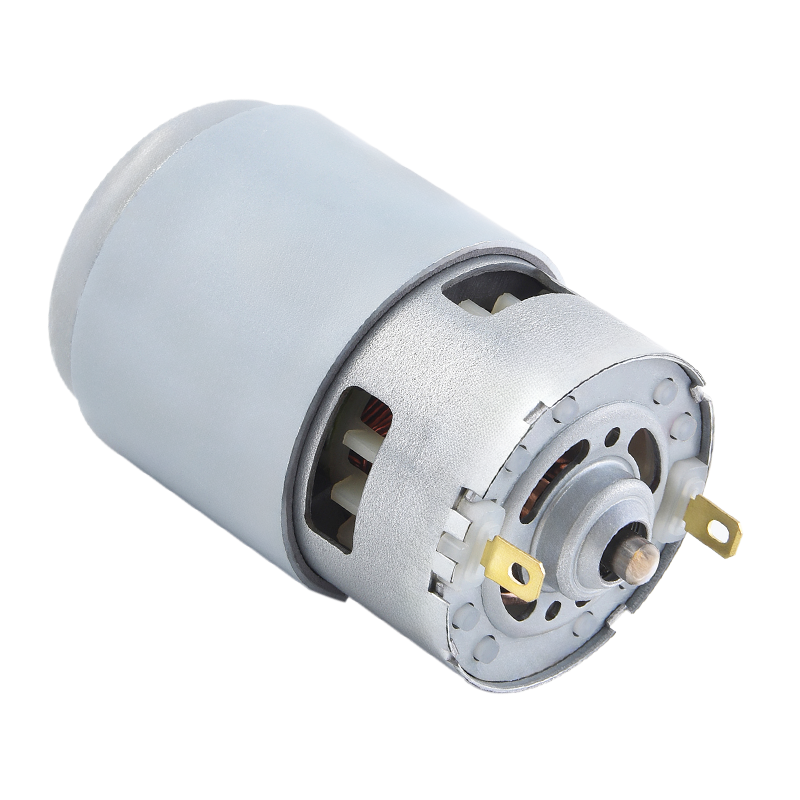

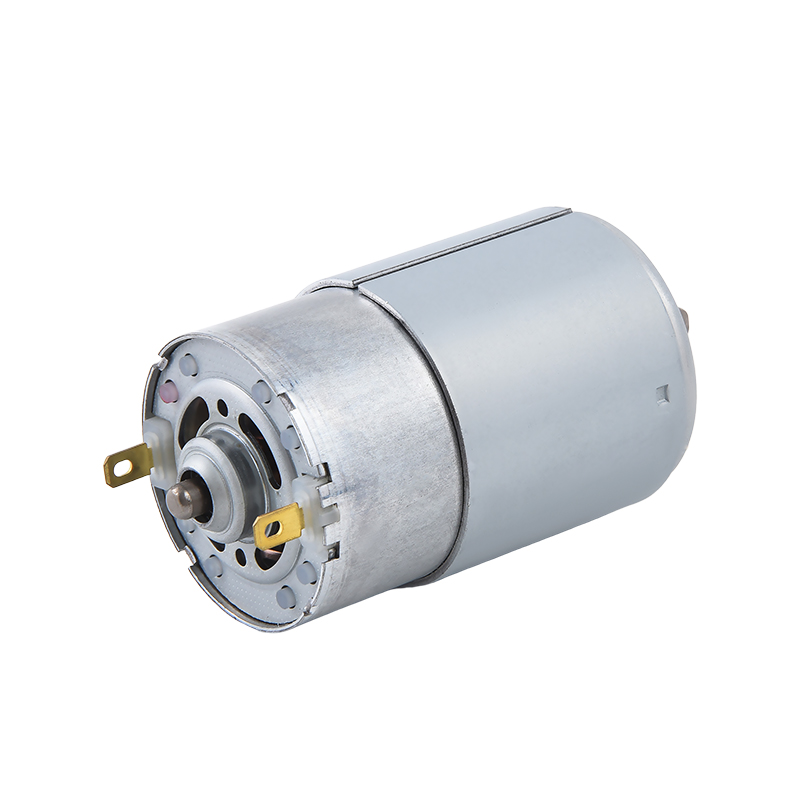

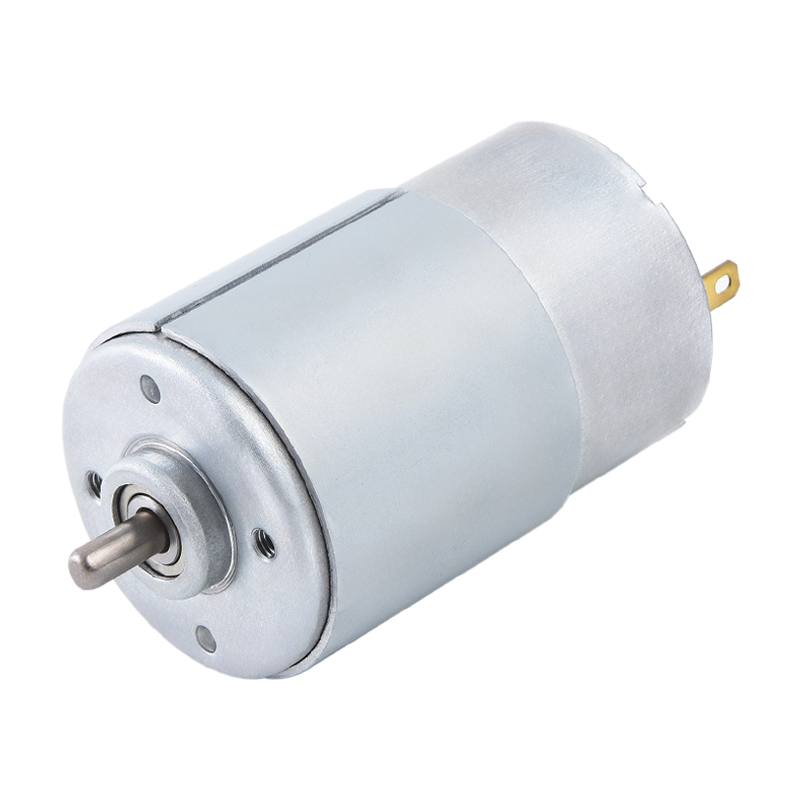

RS775 Brush DC Motor for underwater cleaning

The RS775 brushed DC motor for water pumps is designed specifically for equipment such as water pumps. Measuring 66.5mm in length and 42mm in housing diameter, it supports 0-36V voltages and reaches a maximum speed of 30,000rpm, providing strong and stable power output. With a no-load current of 0-3A, a load current of up to 20A, and a load torque range of 500-2000g·cm, it can adapt to a variety of high-load applications, ensuring efficient operation and stability. The RS775 motor offers exceptional low energy consumption and high efficiency, making it ideal for equipment subject to prolonged, high-load operation.

CONTACT US RS775 Brush DC Motor for underwater cleaning
  • RS775 Brush DC Motor for underwater cleaning
  • RS775 Brush DC Motor for underwater cleaning
  • RS775 Brush DC Motor for underwater cleaning
  • RS775 Brush DC Motor for underwater cleaning
  • RS775 Brush DC Motor for underwater cleaning

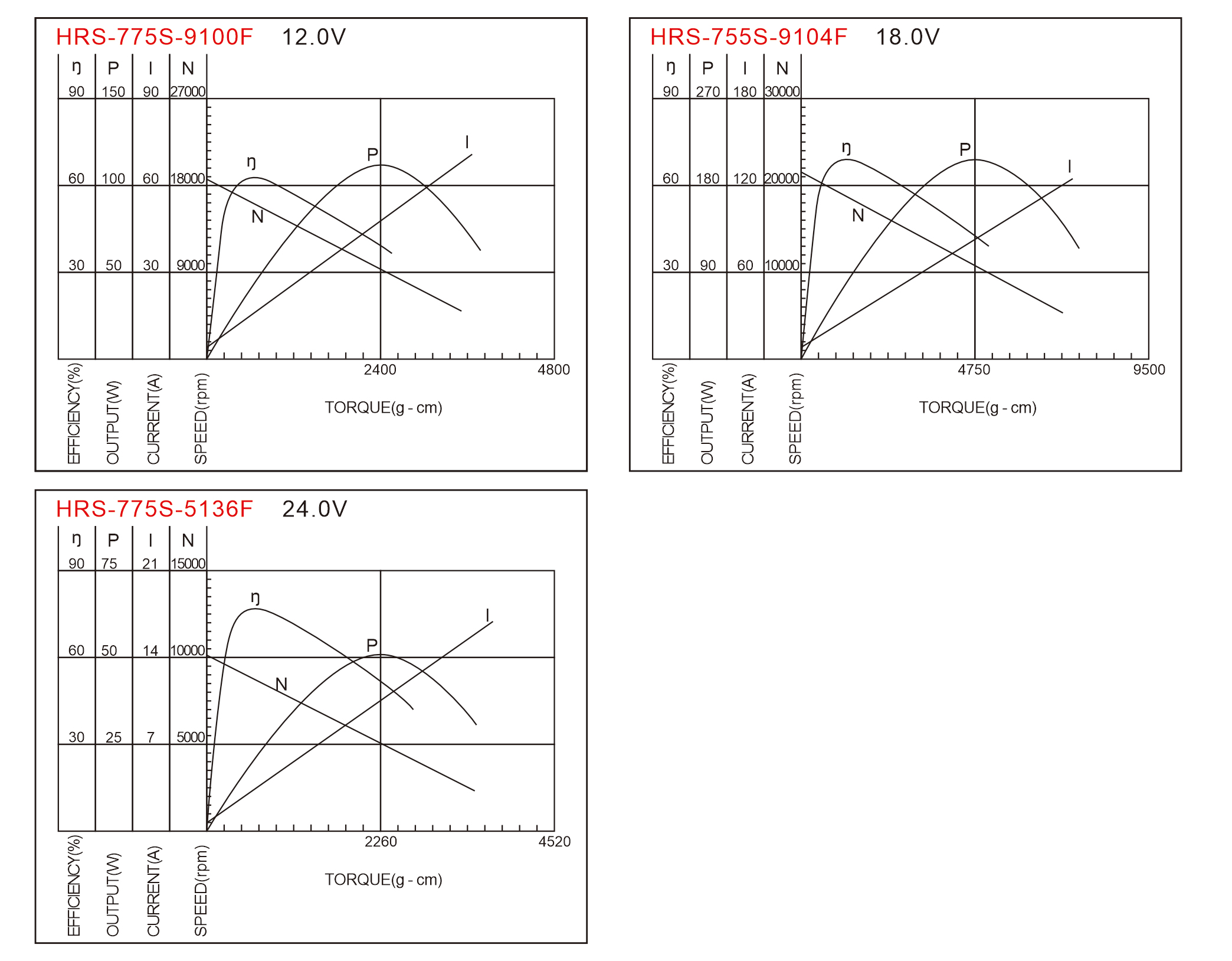

Specifications

Motor Body Length: 66±0.5mm
Shaft Length: Custom
Motor Diameter: 42mm (add magnet retaining ring: 46.5mm max)
Voltage: 0-36V
No-Load Current: 0-3A
Load Current: 0-20A
Rotational Speed: 1000-30000rpm
Load Torque: 500-2000g.cm
Weight: 345g
