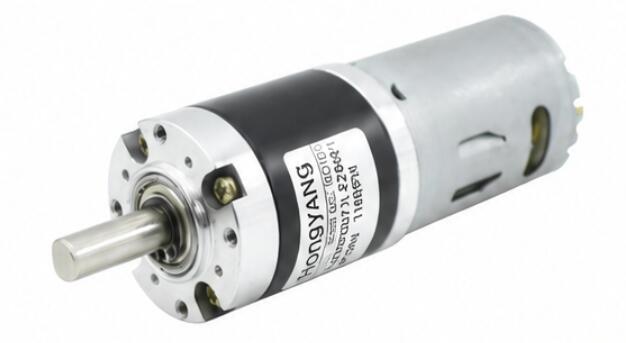

38jx545 Planetary gear motor

1. Robust planetary gear structure generates consistent high torque to handle continuous heavy load working conditions.
2. Adopt 0.5M 40Cr steel gear material to strengthen surface hardness and bring excellent wear resistance for long-cycle operation.
3. Support optional 5V 12PPR two-channel encoder to realize precise speed monitoring and accurate position closed-loop control.
4. Zinc alloy housing paired with premium ball bearing greatly reduces transmission backlash and maintains quiet, smooth running performance.
5. A wide range of configurable gear ratios satisfies varied speed and torque requirements for automation robotics and smart device projects.

CONTACT US 38jx545 Planetary gear motor
  • 38jx545 Planetary gear motor
  • 38jx545 Planetary gear motor

Specifications

38jx545 Housing material Zinc alloy Encoder Optional

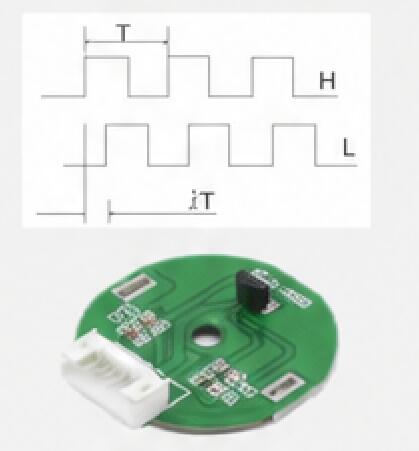

Model TJX38RGb 38jx545-2

A-B 2 channels
555Encoder-5V 12PPR
Bearing Ball bearing
Gear Modulus 0.5M
Commutator Brushed
Gear material 40Cr steel
Max pressure force on shaft ≤15kgf
Back lash ≤2°
Brake available No
Gear construction Planetary gear

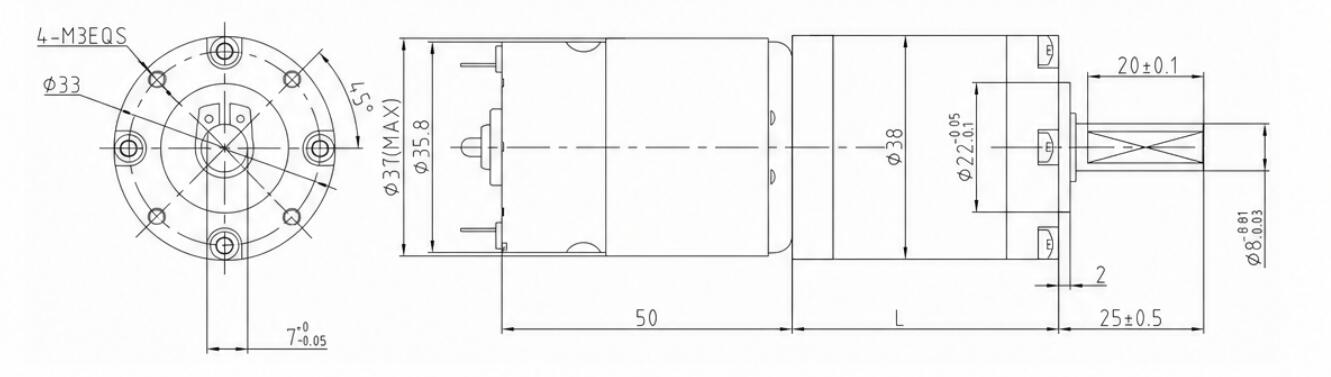

Dimensions(mm)
38jx545-1
Technical Data

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM Dia L Min-Max V V mA RPM mA N.m RPM
8300 3.7 1 38 28.2 TJX38RGb3.7i-24V-2243.2R 6.0-36.0 24 200 2243.2 850 0.06 1794.6
8300 5.2 1 38 28.2 TJX38RGb5.2i-24V-1596.2R 6.0-36.0 24 200 1596.2 850 0.09 1276.9
8300 13.7 2 38 37 TJX38RGb13.7i-24V-605.8R 6.0-36.0 24 200 605.8 850 0.21 484.7
8300 19.2 2 38 37 TJX38RGb19.2i-24V-432.3R 6.0-36.0 24 200 432.3 850 0.3 345.8
8300 26.9 2 38 37 TJX38RGb26.9i-24V-308.6R 6.0-36.0 24 200 308.6 850 0.42 246.8
8300 51 3 38 45.8 TJX38RGb51i-24V-162.7R 6.0-36.0 24 200 162.7 850 0.71 130.2
8300 71 3 38 45.8 TJX38RGb71i-24V-116.9R 6.0-36.0 24 200 116.9 850 0.99 93.5
8300 100 3 38 45.8 TJX38RGb100i-24V-83R 6.0-36.0 24 200 83 850 1.39 66.4
8300 139 3 38 45.8 TJX38RGb139i-24V-59.7R 6.0-36.0 24 200 59.7 850 1.39 47.8
8300 189 4 38 54.7 TJX38RGb189i-24V-43.9R 6.0-36.0 24 200 43.9 850 2.36 35.1
8300 264 4 38 54.7 TJX38RGb264i-24V-31.4R 6.0-36.0 24 200 31.4 850 3.3 25.2
8300 369 4 38 54.7 TJX38RGb369i-24V-22.5R 6.0-36.0 24 200 22.5 850 4.62 18
8300 512 4 38 54.7 TJX38RGb512i-24V-16.2R 6.0-36.0 24 200 16.2 850 6.41 13
8300 721 4 38 54.7 TJX38RGb721i-24V-11.5R 6.0-36.0 24 200 11.5 850 8 9.2
8300 699 5 38 64 TJX38RGb699i-24V-11.9R 6.0-36.0 24 200 11.9 850 8 9.5
8300 977 5 38 64 TJX38RGb977i-24V-8.5R 6.0-36.0 24 200 8.5 850 8 6.8
8300 1367 5 38 64 TJX38RGb1367i-24V-6.1R 6.0-36.0 24 200 6.1 850 8 4.9
8300 1911 5 38 64 TJX38RGb1911i-24V-4.3R 6.0-36.0 24 200 4.3 850 8 3.5
8300 2672 5 38 64 TJX38RGb2672i-24V-3.1R 6.0-36.0 24 200 3.1 850 8 2.5
8300 3736 5 38 64 TJX38RGb3736i-24V-2.2R 6.0-36.0 24 200 2.2 850 8 1.8

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
