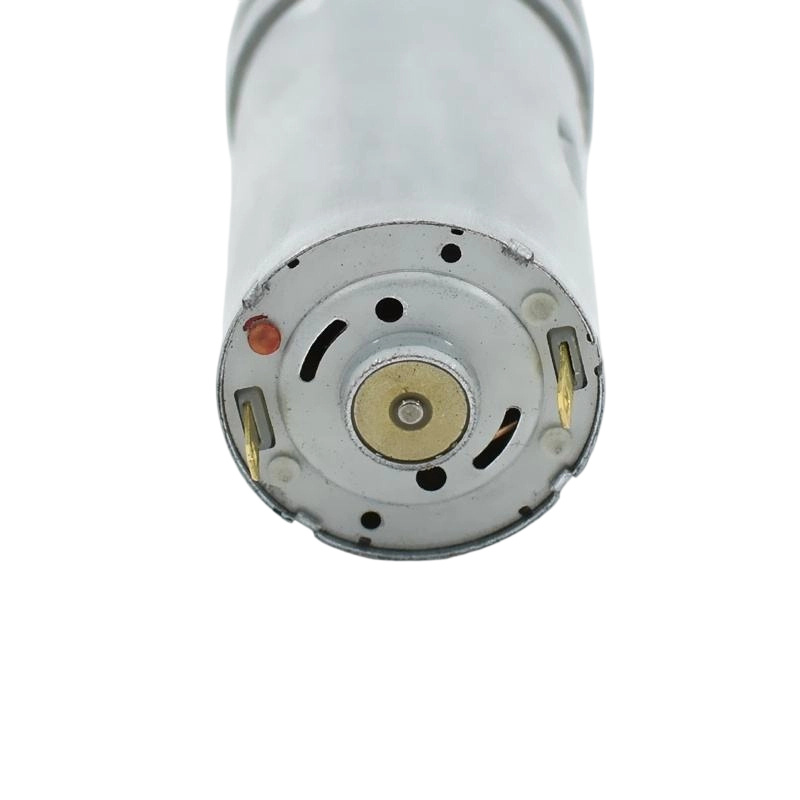

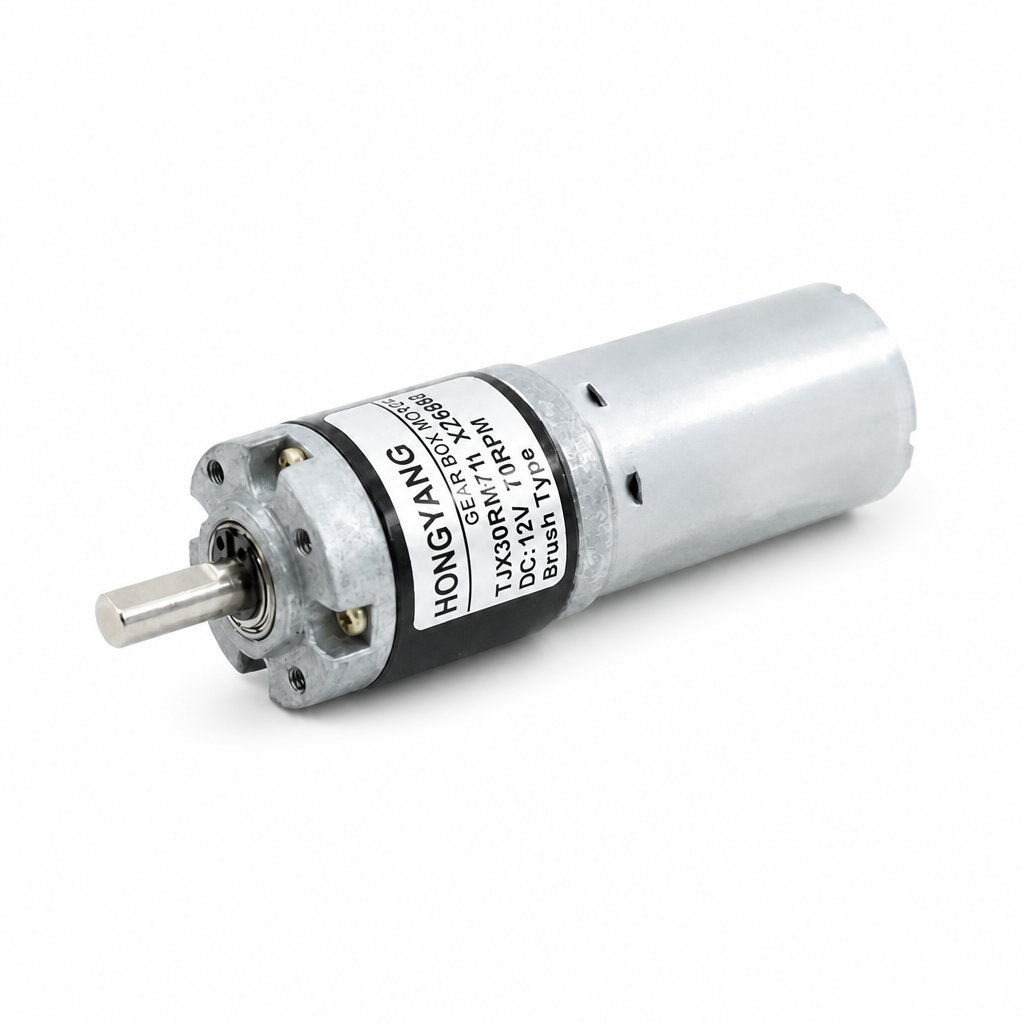

30jx395 30mm planetary gear motor

1. [PLANETARY GEARBOX DESIGN]: Engineered with a planetary gear system that maximizes efficiency and power density for smooth, quiet performance. Unlike conventional spur gears that concentrate loads on individual teeth, this planetary system distributes torque across multiple gears for smoother rotation, higher load capacity, and significantly reduced gear noise.
2. [DURABLE ALL-METAL GEARS]: Built with durable all-metal gears and driven by a robust 12V DC brushed motor to deliver strong output torque, smooth operation, and reliable performance in demanding applications.
3. [INCLUDES MOUNTING BRACKET & HARDWARE]: Complete installation kit included. Every motor comes equipped with 1 heavy-duty mounting bracket and 8 M3 screws, eliminating the hassle of sourcing compatible mounting accessories separately.

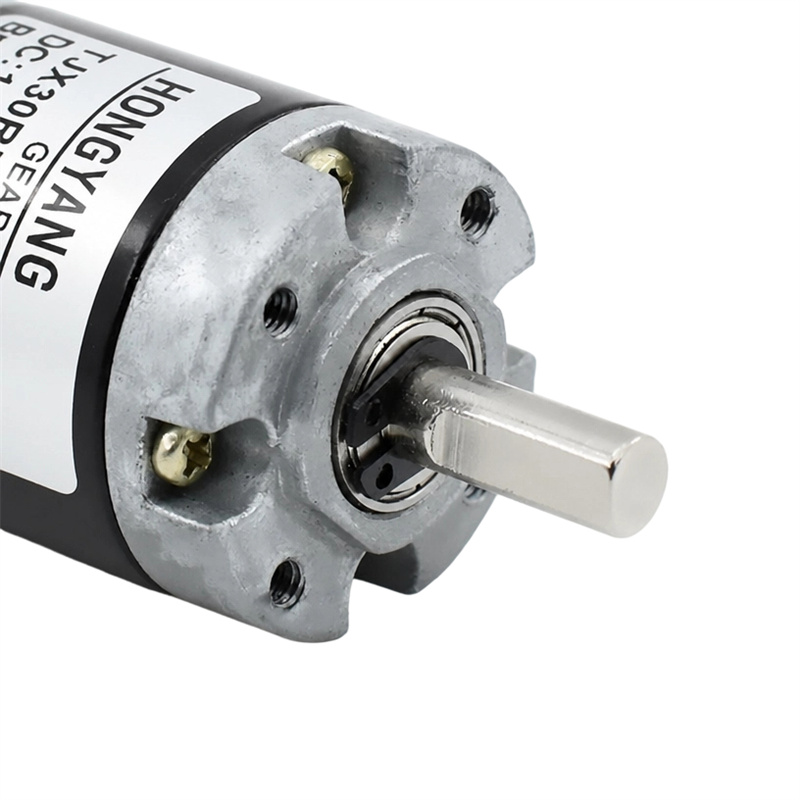

4. [STANDARD D-SHAPE OUTPUT SHAFT]: Engineered with a durable 6mm hardened-steel D-shaft designed to prevent slipping and ensure secure coupling with gears, wheels, pulleys, and other mechanical components under demanding loads.
5. [REVERSIBLE DC MOTOR]: Designed for forward and reverse rotation, making it versatile for robotics, automation, vending machines, conveyors, and other motion-control applications. Available in multiple output speeds to match different project requirements.

CONTACT US 30jx395 30mm planetary gear motor
  • 30jx395 30mm planetary gear motor
  • 30jx395 30mm planetary gear motor
  • 30jx395 30mm planetary gear motor

Specifications

Housing material Zinc alloy Encoder Optional
Model TJX30RM 30jx395-2

A-B 2 channels
395Encoder-5V 12PPR
Bearing Ball bearing
Gear Modulus 0.5M
Commutator Brushed
Gear material 40Cr steel
Max pressure force on shaft ≤12kgf
Back lash ≤2°
Brake available No
Gear construction Planetary gear

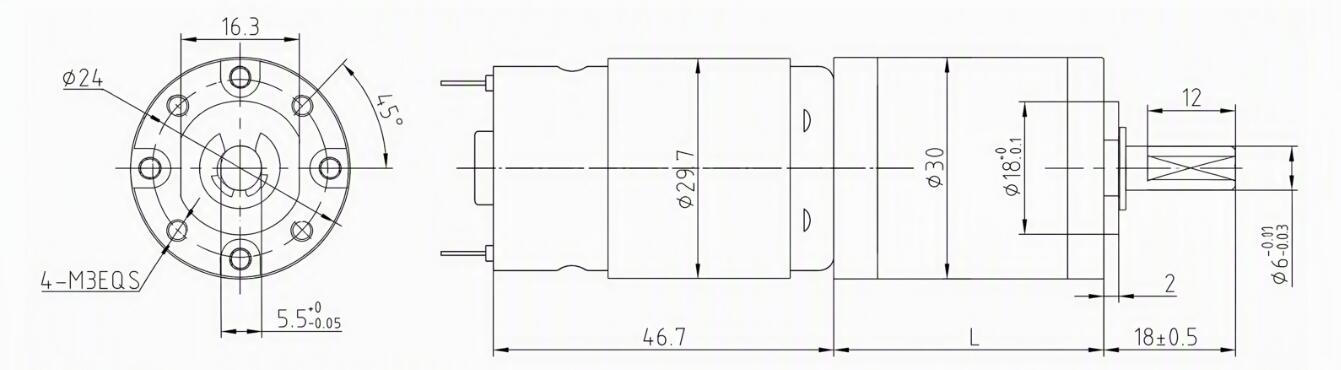

Dimensions(mm)
30jx395
Technical Data

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM Dia L Min-Max V V mA RPM mA N.m RPM
7500 3.7 1 30 28 TJX30RM3.7i-12V-2027R 3.0-18.0 12 160 2027 600 0.02 1621.6
7500 5.2 1 30 28 TJX30RM5.2i-12V-1442.3R 3.0-18.0 12 160 1442.3 600 0.03 1153.8
7500 13.7 2 30 37 TJX30RM13.7i-12V-547.4R 3.0-18.0 12 160 547.4 600 0.08 438
7500 19.2 2 30 37 TJX30RM19.2i-12V-390.6R 3.0-18.0 12 160 390.6 600 0.12 312.5
7500 26.9 2 30 37 TJX30RM26.9i-12V-278.8R 3.0-18.0 12 160 278.8 600 0.16 223
7500 51 3 30 46 TJX30RM51i-12V-147.1R 3.0-18.0 12 160 147.1 600 0.28 117.6
7500 71 3 30 46 TJX30RM71i-12V-105.6R 3.0-18.0 12 160 105.6 600 0.39 84.5
7500 100 3 30 46 TJX30RM100i-12V-75R 3.0-18.0 12 160 75 600 0.54 60
7500 139 3 30 46 TJX30RM139i-12V-54R 3.0-18.0 12 160 54 600 0.75 43.2
7500 189 4 30 55 TJX30RM189i-12V-39.7R 3.0-18.0 12 160 39.7 600 0.92 31.7
7500 264 4 30 55 TJX30RM264i-12V-28.4R 3.0-18.0 12 160 28.4 600 1.29 22.7
7500 369 4 30 55 TJX30RM369i-12V-20.3R 3.0-18.0 12 160 20.3 600 1.8 16.3
7500 512 4 30 55 TJX30RM512i-12V-14.6R 3.0-18.0 12 160 14.6 600 2.5 11.7
7500 721 4 30 55 TJX30RM721i-12V-10.4R 3.0-18.0 12 160 10.4 600 3.52 8.3
7500 699 5 30 64 TJX30RM699i-12V-10.7R 3.0-18.0 12 160 10.7 600 3.07 8.6
7500 977 5 30 64 TJX30RM977i-12V-7.7R 3.0-18.0 12 160 7.7 600 4.3 6.1
7500 1367 5 30 64 TJX30RM1367i-12V-5.5R 3.0-18.0 12 160 5.5 600 6.01 4.4
7500 1911 5 30 64 TJX30RM1911i-12V-3.9R 3.0-18.0 12 160 3.9 600 8 3.1
7500 2672 5 30 64 TJX30RM2672i-12V-2.8R 3.0-18.0 12 160 2.8 600 8 2.2
7500 3736 5 30 64 TJX30RM3736i-12V-2R 3.0-18.0 12 160 2 600 8 1.6

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
