4058WG395 Worm Gear Motor

1. Self locking on power off: the inherent mechanical self locking of the worm gear drive locks the load in place the moment the motor stops, with no extra brake needed (the drawing confirms no brake required), making lifting tables, gate openers, and conveyors safer.
2. High torque for heavy duty use: reduction ratios from 27:1 to 710:1, with 3 to 4 gear stages, deliver load torque up to 3.0 N·m (about 30.6 kgf·cm), packing big power into a small body.
3. Low power consumption with dual voltage: no load current as low as 48 mA (24V) and on load current only 200 mA; available in 12V and 24V, saving energy and fitting various power systems.
4. Precision materials for long life: zinc alloy housing, sintered steel worm gear, and ball bearings, with max shaft pressure ≤15 kgf and backlash ≤2°, offering high precision, wear resistance, and long service life.
5. Optional encoder: 5V 12PPR dual channel encoder available for accurate speed and position feedback, suitable for closed loop control and automation.

CONTACT US 4058WG395 Worm Gear Motor
  • 4058WG395 Worm Gear Motor
  • 4058WG395 Worm Gear Motor

Specifications

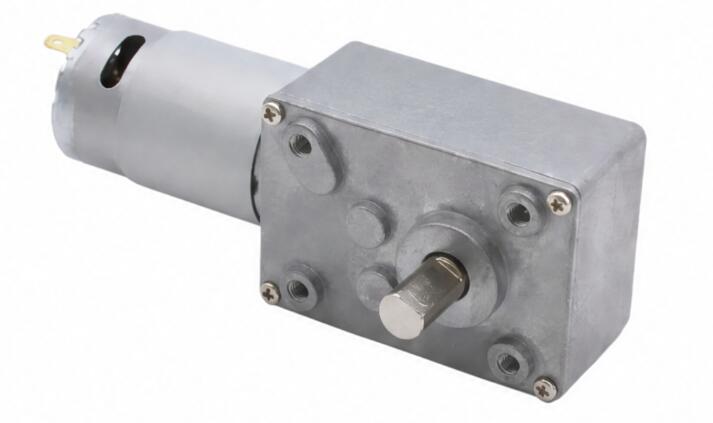

4058WG395-1 Housing material Zinc alloy Encoder Optional

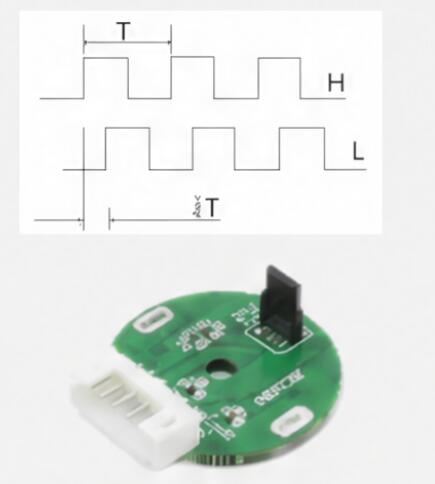

Model TJW58FM 4058WG395-2

A-B 2 channels
395Encoder-5V 12PPR
Bearing Ball bearing
Gear Modulus 0.6M
Commutator Brushed
Gear material Sintered steel
Max pressure force on shaft ≤15kgf
Back lash ≤2°
Brake available No
Gear construction Worm gear

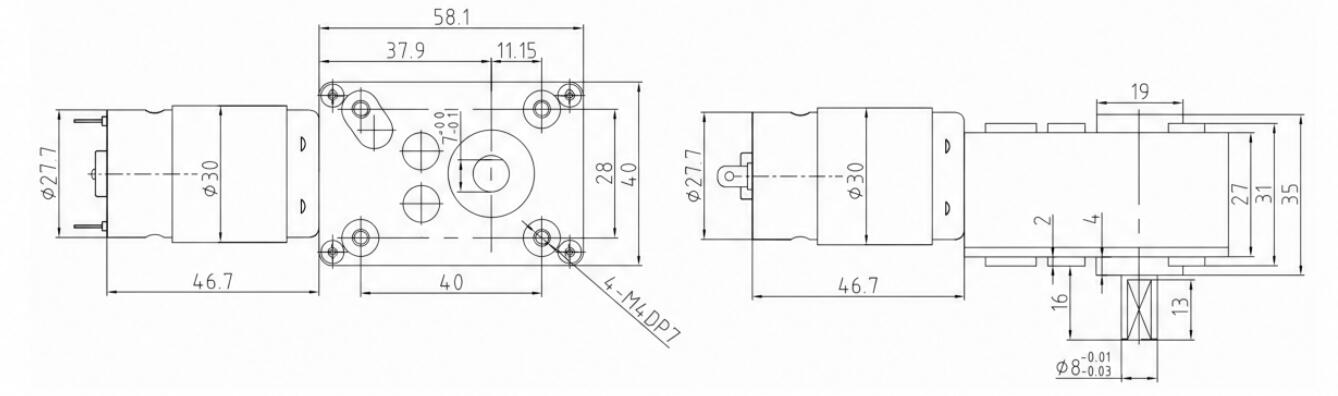

Dimensions(mm)
4058WG395-3
Technical Data

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM L W Min-Max V V mA RPM mA N.m RPM
5000 27 3 58 40 TJW58FM27i-24V-185.2R 6-36 24 48 185.2 200 0.15 148.1
5000 50 3 58 40 TJW58FM50i-24V-100R 6-36 24 48 100 200 0.27 80
5000 79 3 58 40 TJW58FM79i-24V-63.3R 6-36 24 48 63.3 200 0.43 50.6
5000 93 3 58 40 TJW58FM93i-24V-53.8R 6-36 24 48 53.8 200 0.51 43
5000 122 3 58 40 TJW58FM122i-24V-41R 6-36 24 48 41 200 0.66 32.8
5000 167 3 58 40 TJW58FM167i-24V-29.9R 6-36 24 48 29.9 200 0.91 24
5000 213 3 58 40 TJW58FM213i-24V-23.5R 6-36 24 48 23.5 200 1.16 18.8
5000 263 4 58 40 TJW58FM263i-24V-19R 6-36 24 48 19 200 1.29 15.2
5000 311 4 58 40 TJW58FM311i-24V-16.1R 6-36 24 48 16.1 200 1.52 12.9
5000 407 4 58 40 TJW58FM407i-24V-12.3R 6-36 24 48 12.3 200 1.99 9.8
5000 556 4 58 40 TJW58FM556i-24V-9R 6-36 24 48 9 200 2.72 7.2
5000 710 4 58 40 TJW58FM710i-24V-7R 6-36 24 48 7 200 3 5.6

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
