N20 Gear Motor

Name: N20 Gear Motor
Rating: 5 (99 reviews)

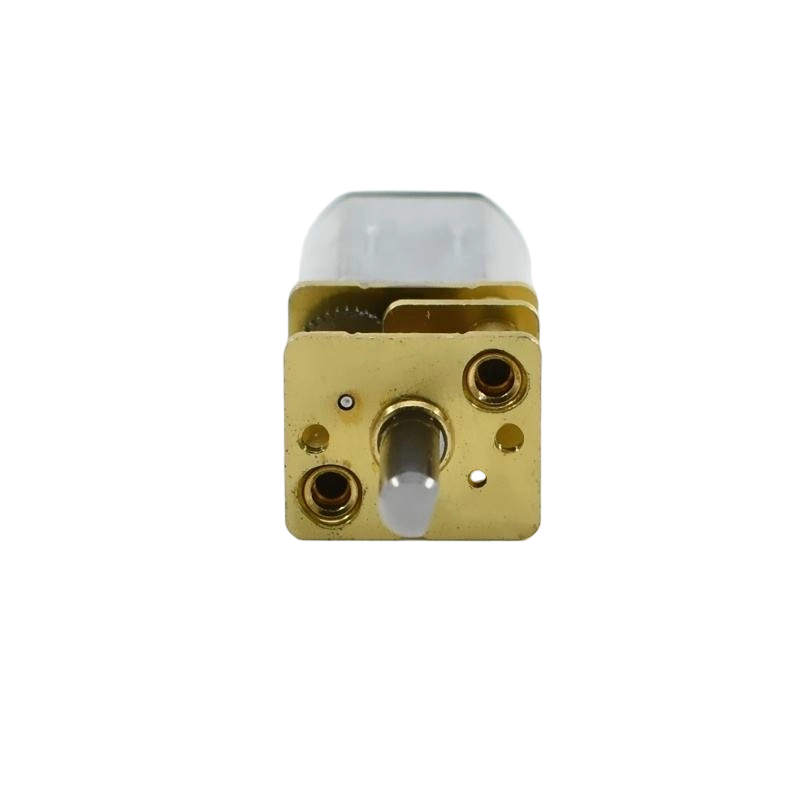

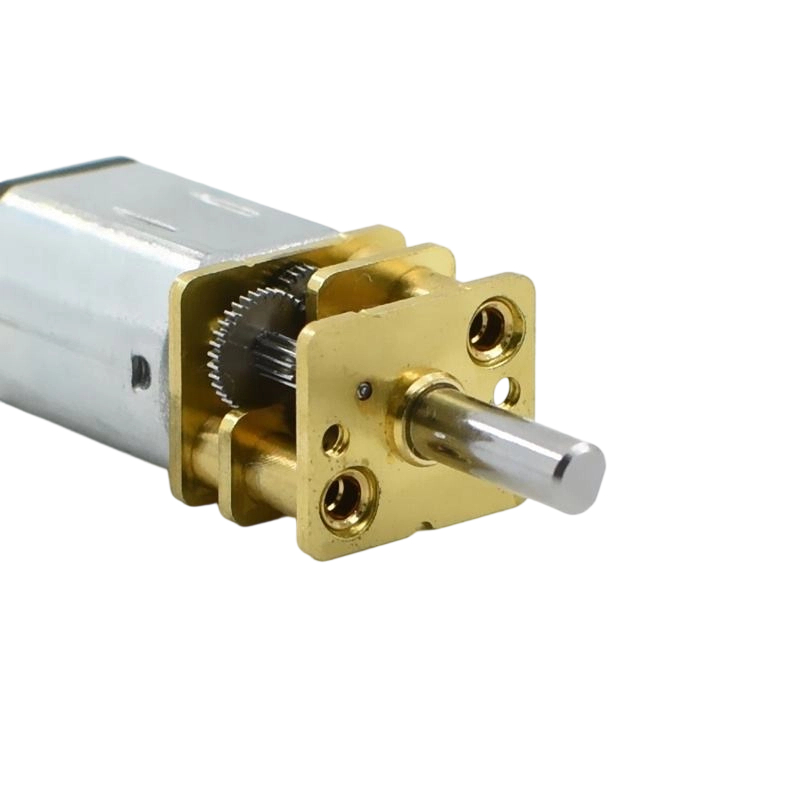

The N20 geared motor is a compact brushed DC geared motor that, thanks to its small size and high torque, is widely used in products such as robots, smart homes, and medical equipment.

Housing material	Zinc alloy	Encoder Optional

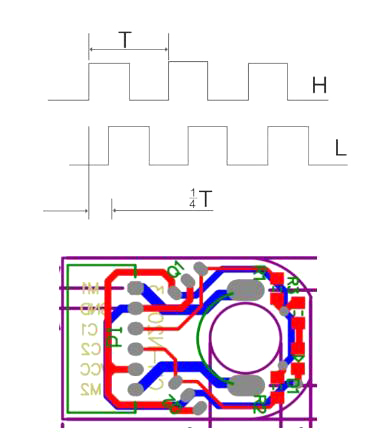

Model	TJZ12FN20	A‑B 2 channels N20Encoder‑5V 7PPR
Bearing	Oil bearing
Gear Modulus	0.15M
Commutator	Brushed
Gear material	#45 steel
Max pressure force on shaft	≤1.5kgf
Back lash	≤2°
Brake available	No
Gear construction	Spur gear

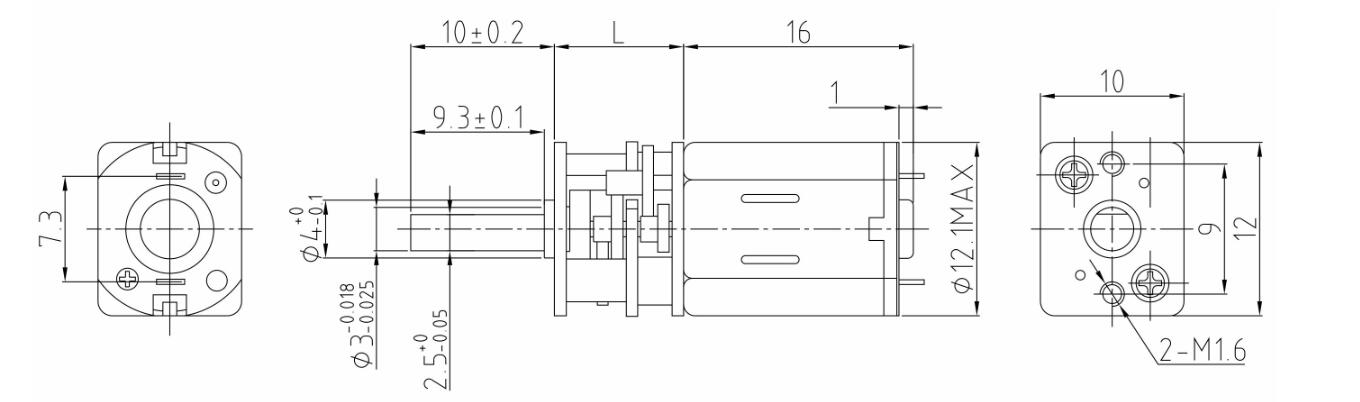

Dimensions(mm)
20260817164334-

Technical Data

DC MOTOR SPEED(RPM)	Ratio	Gear Stages	Gearbox Size‑Dia	Gearbox Size‑L	Model Number	Operating Range Min‑Max V	Rated Voltage(V)	No Load‑Current(mA)	No Load‑Speed(RPM)	On Load‑Current(mA)	On Load‑Torque(N.m)	On Load‑Speed(RPM)
16000	5	2	12	9	TJZ12FN20‑5i‑12V‑3200R	3.0‑18.0	12	18	3200	62	0.001	2560
16000	10	2	12	9	TJZ12FN20‑10i‑12V‑1600R	3.0‑18.0	12	18	1600	62	0.003	1280
16000	30	2	12	9	TJZ12FN20‑30i‑12V‑533.3R	3.0‑18.0	12	18	533.3	62	0.009	426.7
16000	50	3	12	9	TJZ12FN20‑50i‑12V‑320R	3.0‑18.0	12	18	320	62	0.013	256
16000	75	3	12	9	TJZ12FN20‑75i‑12V‑213.3R	3.0‑18.0	12	18	213.3	62	0.02	170.7
16000	100	3	12	9	TJZ12FN20‑100i‑12V‑160R	3.0‑18.0	12	18	160	62	0.026	128
16000	150	4	12	9	TJZ12FN20‑150i‑12V‑106.7R	3.0‑18.0	12	18	106.7	62	0.036	85.3
16000	210	4	12	9	TJZ12FN20‑210i‑12V‑76.2R	3.0‑18.0	12	18	76.2	62	0.05	61
16000	250	4	12	9	TJZ12FN20‑250i‑12V‑64R	3.0‑18.0	12	18	64	62	0.059	51.2
16000	298	5	12	9	TJZ12FN20‑298i‑12V‑53.7R	3.0‑18.0	12	18	53.7	62	0.063	43
16000	380	5	12	9	TJZ12FN20‑380i‑12V‑42.1R	3.0‑18.0	12	18	42.1	62	0.081	33.7
16000	1000	5	12	12	TJZ12FN20‑1000i‑12V‑16R	3.0‑18.0	12	18	16	62	0.213	12.8

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
