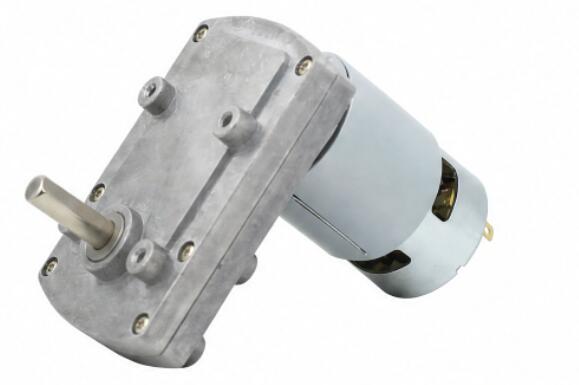

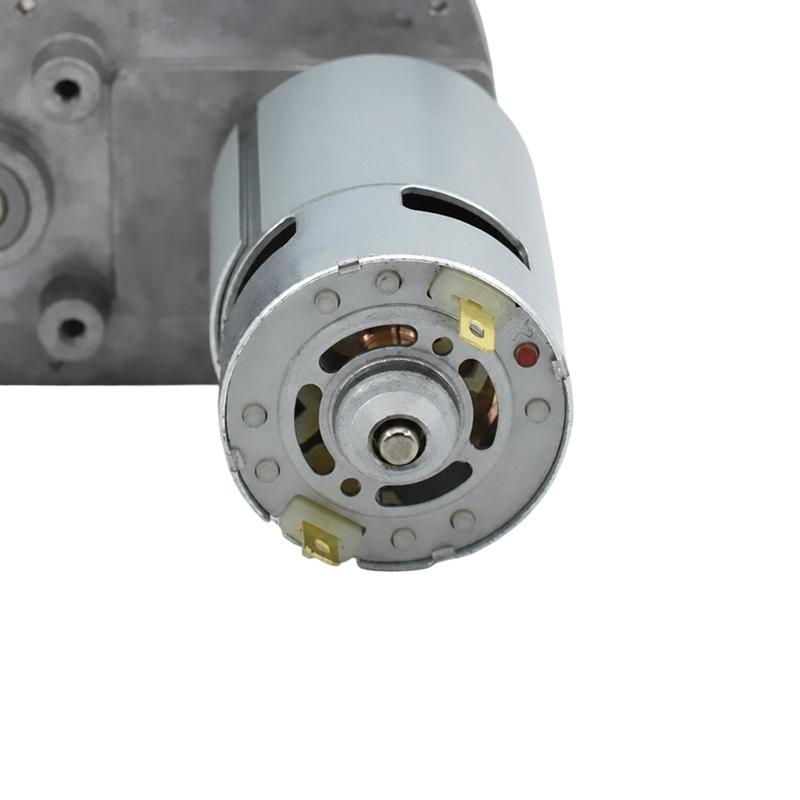

6096FG775 dc square gearbox motor

1. Flat gearbox for space-saving: the 96×60 mm flat housing keeps the axial height low, fitting slim device layouts and saving significant installation space.
2. High torque for heavy load output: load torque up to 5.0 N·m (about 51 kgf·cm), with reduction ratios from 37:1 to 1247:1 in 3 to 5 gear stages, delivering a stable, low-speed, high-torque drive.
3. Wide voltage for flexible use: rated at 24V with a 6 to 36V operating range, fitting various power systems and working conditions.
4. Precision materials for long life: 40Cr alloy steel gear, 0.8M module, zinc alloy housing, and oil bearing, with max shaft pressure ≤15 kgf and backlash ≤2°, offering wear resistance and long service life.

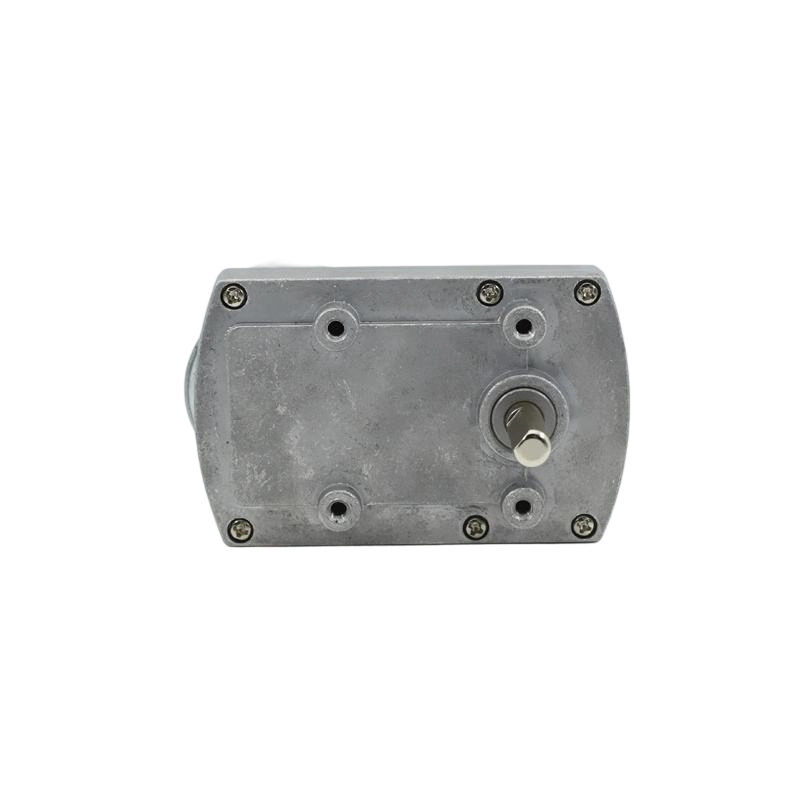

5. Offset output shaft, motor with optional encoder: the output shaft sits off-center to fit misaligned drive layouts; the motor can be equipped with a 5V 13PPR dual-channel encoder for accurate speed and position feedback.

CONTACT US 6096FG775 dc square gearbox motor
  • 6096FG775 dc square gearbox motor
  • 6096FG775 dc square gearbox motor
  • 6096FG775 dc square gearbox motor

Specifications

6096FG775 Housing material Zinc alloy Encoder Optional
Model TJP96FT 6096FG775-1

A-B 2 channels
775Encoder-5V 13PPR
Bearing Oil bearing
Gear Modulus 0.8M
Commutator Brushed
Gear material 40Cr steel
Max pressure force on shaft ≤15kgf
Back lash ≤2°
Brake available No
Gear construction Spur gear

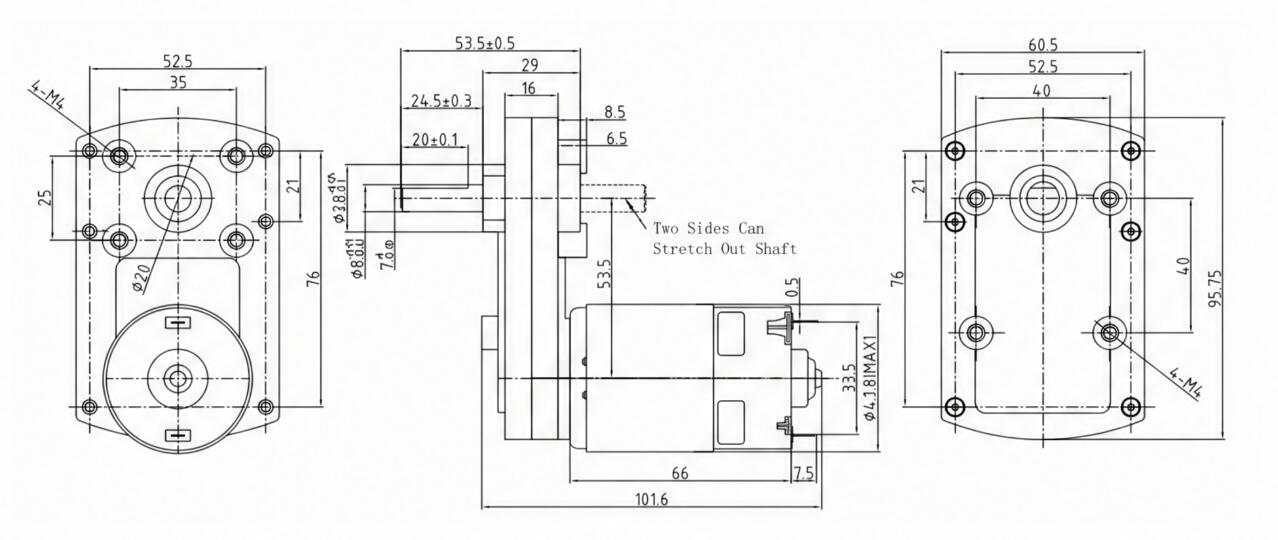

Dimensions(mm)
6096FG775-2
Technical Data

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM L W Min-Max V V mA RPM mA N.m RPM
6500 37 3 96 60 TJP96FT37i-24V-175.7R 6-36 24 400 175.7 3000 2.32 140.5
6500 77.8 3 96 60 TJP96FT77.8i-24V-83.5R 6-36 24 400 83.5 3000 4.87 66.8
6500 156 4 96 60 TJP96FT156i-24V-41.7R 6-36 24 400 41.7 3000 5 33.3
6500 197 4 96 60 TJP96FT197i-24V-33R 6-36 24 400 33 3000 5 26.4
6500 254 4 96 60 TJP96FT254i-24V-25.6R 6-36 24 400 25.6 3000 5 20.5
6500 297 4 96 60 TJP96FT297i-24V-21.9R 6-36 24 400 21.9 3000 5 17.5
6500 327 4 96 60 TJP96FT327i-24V-19.9R 6-36 24 400 19.9 3000 5 15.9
6500 653 5 96 60 TJP96FT653i-24V-10R 6-36 24 400 10 3000 5 8
6500 826 5 96 60 TJP96FT826i-24V-7.9R 6-36 24 400 7.9 3000 5 6.3
6500 1027 5 96 60 TJP96FT1027i-24V-6.3R 6-36 24 400 6.3 3000 5 5.1
6500 1247 5 96 60 TJP96FT1247i-24V-5.2R 6-36 24 400 5.2 3000 5 4.2

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
