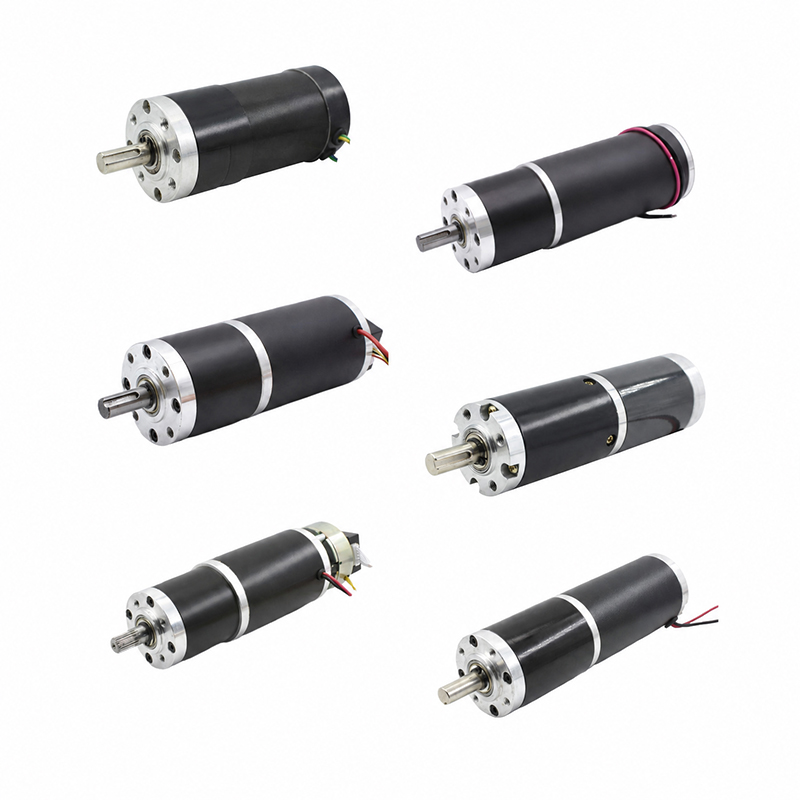

57JX5795BL Brushless planetary geared motor

1. Brushless Gear Motor For Extended Continuous Operation
The Motor combines a brushless DC motor with a planetary gearbox to provide stable power for long operating cycles. Its brushless commutation design avoids mechanical brush contact, making it suitable for equipment that requires consistent rotation, reduced brush-related wear and dependable long-term drive performance.

2. 20N.m High Torque From A Compact Planetary Gearbox
With output torque up to 20.0N.m, the motor converts high-speed motor input into strong usable output force. It is suitable for lifting mechanisms, electric actuators, conveyors, valve drives, gate systems and other automation equipment that requires high torque at controlled speed.

3. Flexible Output Selection From 3.7:1 To 3736:1
The gearbox offers reduction ratios from 3.7:1 to 3736:1 with 1 to 5 gear stages. Output speed ranges from approximately 1621.6RPM to 1.6RPM, enabling one motor series to cover fast transmission, controlled movement and ultra-low-speed heavy-load applications.

4. Hall Feedback And External Driver For Responsive BLDC Control
The motor uses three-phase BLDC wiring with MA, MB and MC phase connections, Hall signals and a 24V VCC input, and requires an external motor driver. This configuration supports electronic commutation, speed regulation, rotation direction control and system-level motion coordination in automated machinery.

5. Low-Backlash Transmission With Brake Availability
Specified gearbox backlash is ≤2°, helping reduce unwanted movement during reversing and repeated positioning. A brake configuration is available for applications requiring controlled stopping or holding. The gearbox also uses 40Cr steel gears, ball bearing support and a zinc alloy housing, with shaft pressure force up to ≤30kgf.
