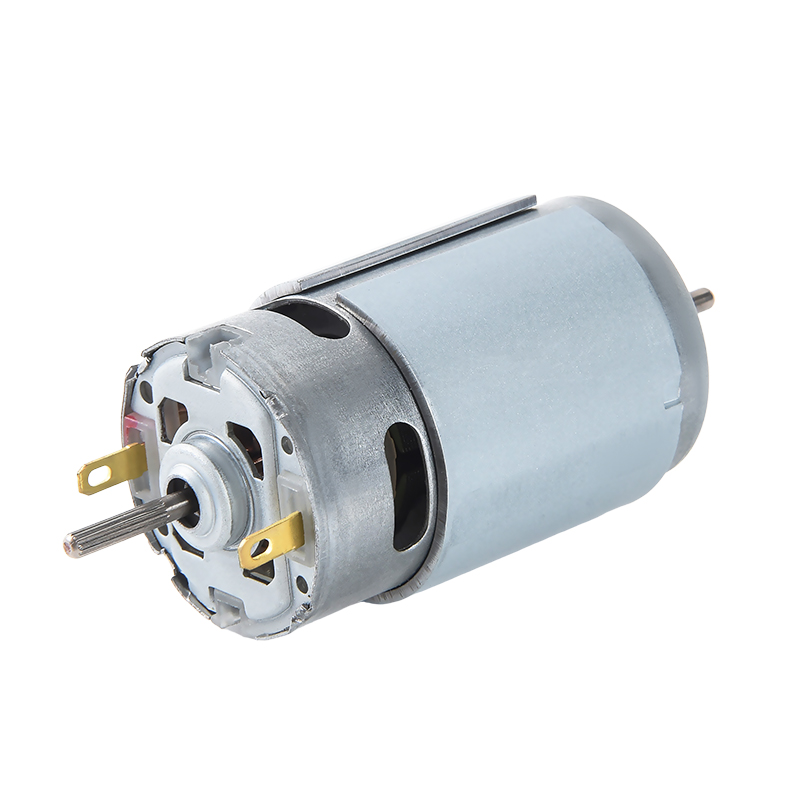

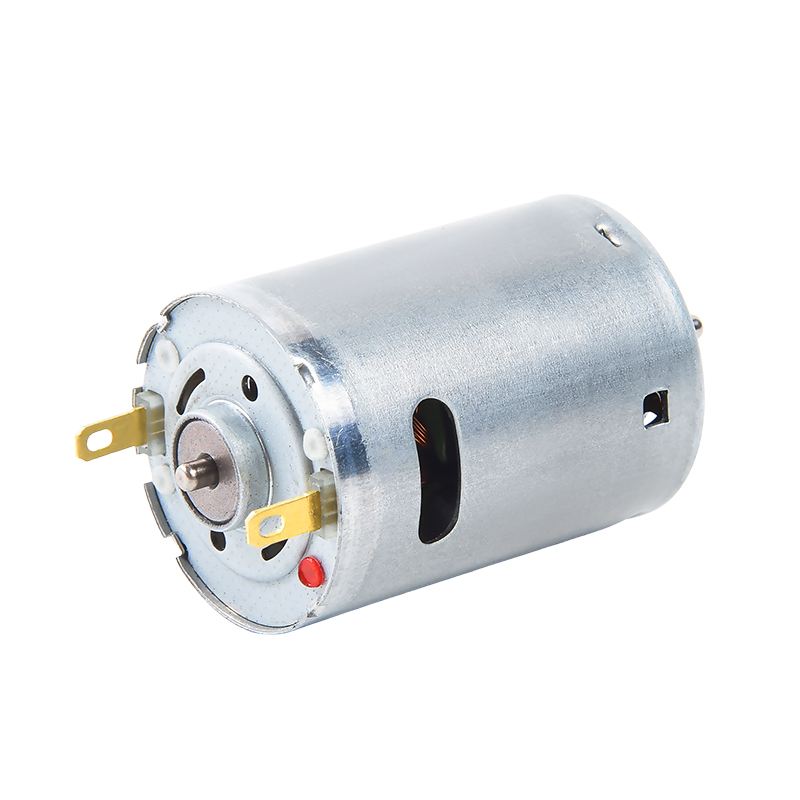

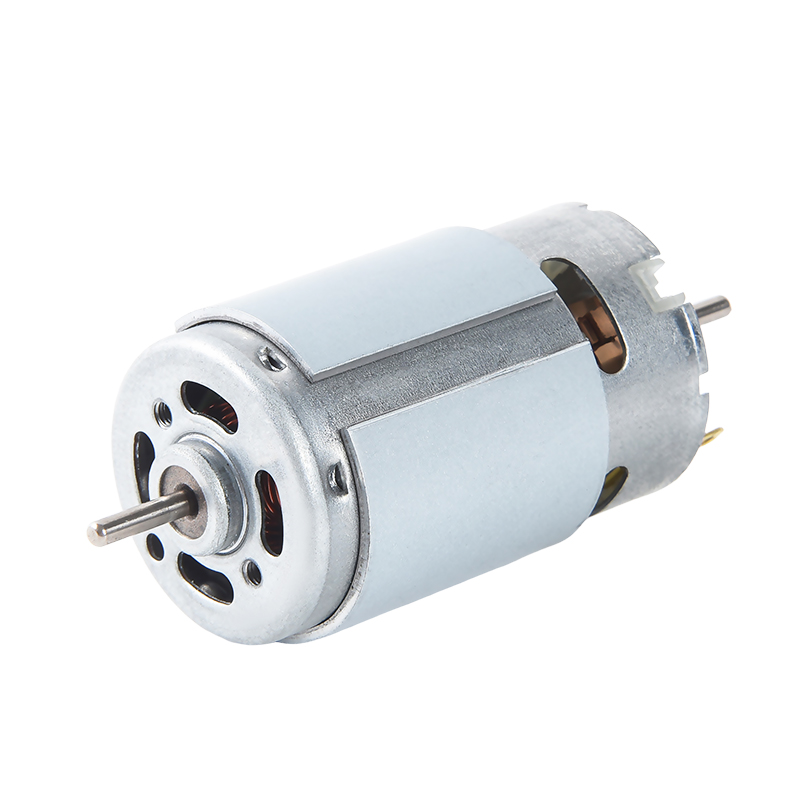

RS390 Permanent Magnet Brush DC Motor for vacuum cleaner

The RS390 Permanent Magnet Brush DC Motor for vacuum cleaner is a highly efficient and stable permanent magnet brush DC motor suitable for a wide range of applications, including power tools, automotive air pumps, household appliances, vacuum cleaners, model airplanes, and vending machines. It operates with a voltage range of 0-36V, supports an adjustable speed of 1000-20000rpmrpm, and can provide a load torque of up to 0-500g.cm, adapting to the speed and torque requirements of various applications. With a no-load current of only 0-2A and a load current of 0-20A, the motor offers high-efficiency output and stable operation under high loads. Its compact design (motor length 46.5mm, housing diameter 27.7mm) saves space and enhances device design flexibility.

CONTACT US RS390 Permanent Magnet Brush DC Motor for vacuum cleaner
  • RS390 Permanent Magnet Brush DC Motor for vacuum cleaner
  • RS390 Permanent Magnet Brush DC Motor for vacuum cleaner
  • RS390 Permanent Magnet Brush DC Motor for vacuum cleaner
  • RS390 Permanent Magnet Brush DC Motor for vacuum cleaner
  • RS390 Permanent Magnet Brush DC Motor for vacuum cleaner

Specifications

Motor Body Length: 46.5mm
Shaft Length: Custom
Motor Diameter: 27.7mm (add magnet retaining ring: 29.5mm max)
Voltage: 0-36V
No-Load Current: 0-2A
Load Current: 0-20A
Rotational Speed: 0-20000rpm
Load Torque: 0-500g.cm
