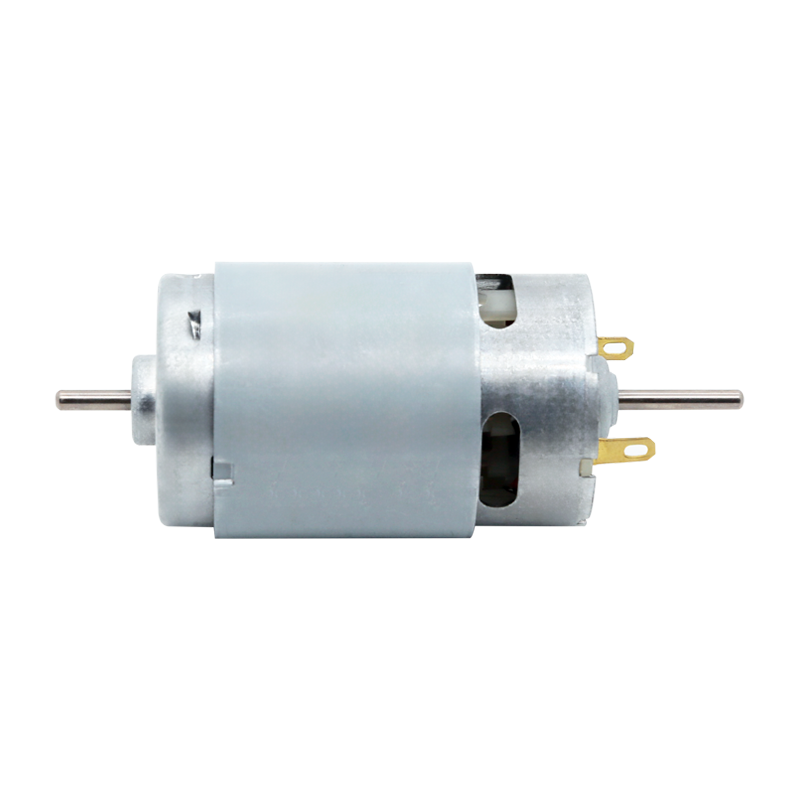

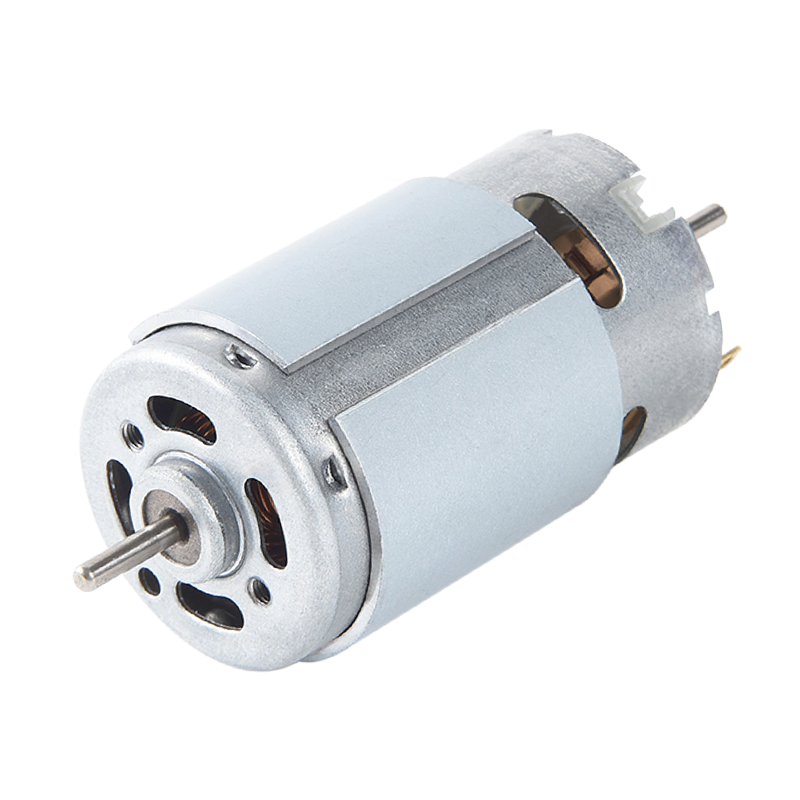

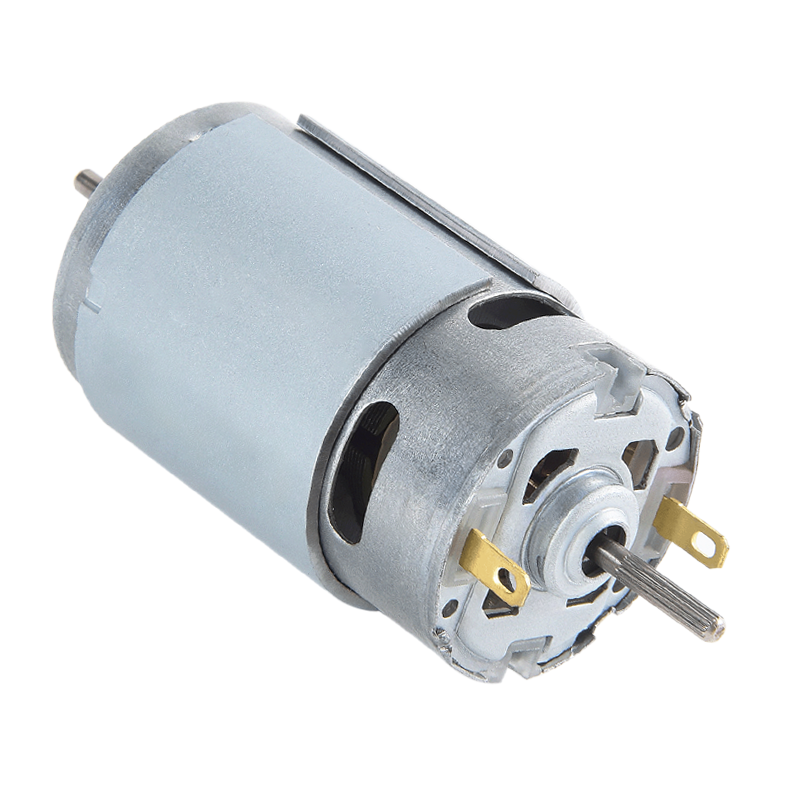

RS-380SL Brushed PMDC Motor for Coffee Makers

The RS-380/385SL is a brushed permanent magnet DC motor and an extended model of the RS-380/385. It has a diameter of 27.7mm (30mm with the Magnet Shield Ring) and a length of 47mm, with customizable shaft length and type.
Constructed with pure copper windings, the motor can be equipped with an internal cooling fan to enhance durability and extend service life. Two bearing options are available: oil-impregnated bearings and ball bearings.
Our motors comply with international standards including EMC, VDE, RoHS, REACH and FFU.
These motors are widely applied in various fields such as coffee makers, sanders, tape dispensers, glue guns, handheld cutters and air pumps.
For custom specifications such as voltage, speed and torque, please feel free to contact us.

CONTACT US RS-380SL Brushed PMDC Motor for Coffee Makers
  • RS-380SL Brushed PMDC Motor for Coffee Makers
  • RS-380SL Brushed PMDC Motor for Coffee Makers
  • RS-380SL Brushed PMDC Motor for Coffee Makers

Specifications

Motor Length:

46.5mm(Excluding the Shaft)

Motor Diameter:

27.7mm(Add Magnet Shield Ring: 30mm Max)

Shaft Length:

Custom

Shaft Diameter:

2.3mm

Shaft Type:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Speed:

2000-30000RPM

Torque:

0-0.15N.m



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
HRS-380PL-8103 2.0 - 6.0 3.6V CONSTANT 18800 1.6 15400 9.6 150 14.7 23.69 68.5 45.9 829.5 81.29
HRS-380PL-4646 6.0 - 12.0 12.0V CONSTANT 20000 0.53 17300 3.4 110 10.78 13.32 67.3 21.8 1259 123.38
HRS-385PL-28094 12.0 - 24.0 24.0V CONSTANT 9000 0.09 7600 0.52 105 10.29 8.18 65.6 2.9 675 66.15
HRS-385PL-3253 12.0 - 30.0 24.0V CONSTANT 15000 0.19 13200 0.8 80 7.84 8.12 67.6 5.3 835 81.83

Please inquire with your sales representative for output, performance, and EMC solution.
