Yuyao Hongyang Micromotor Co., Ltd. Home / Products / Brush DC Motor / RS-997 Brush DC Motor for Snow Blowers

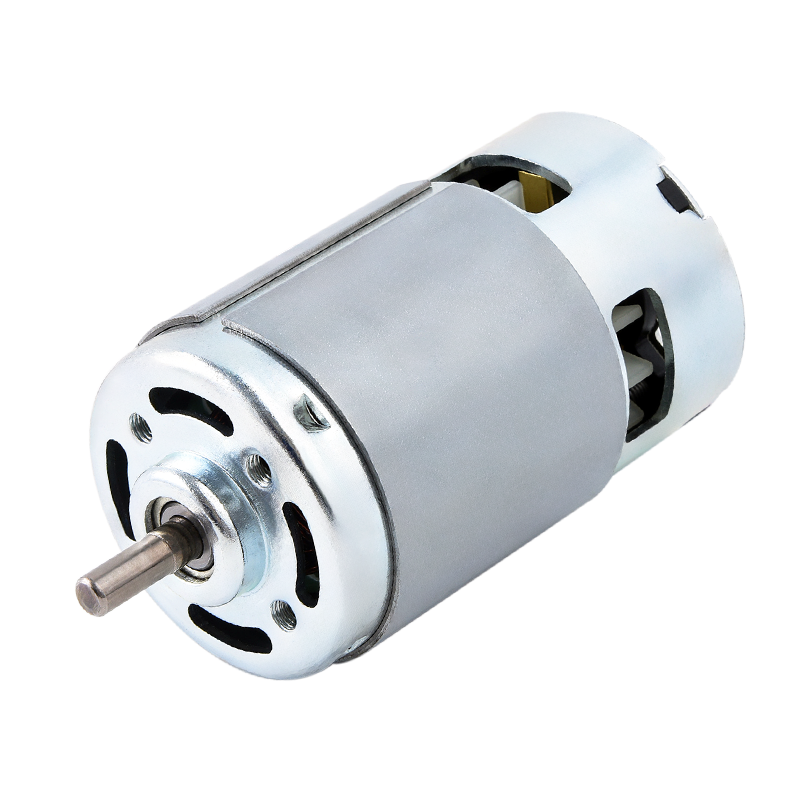

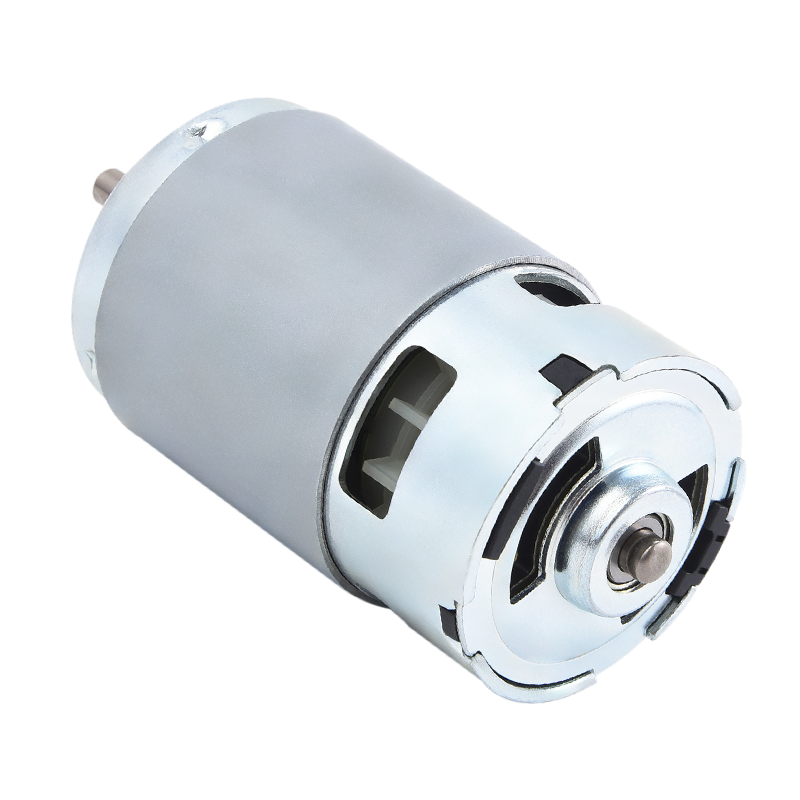

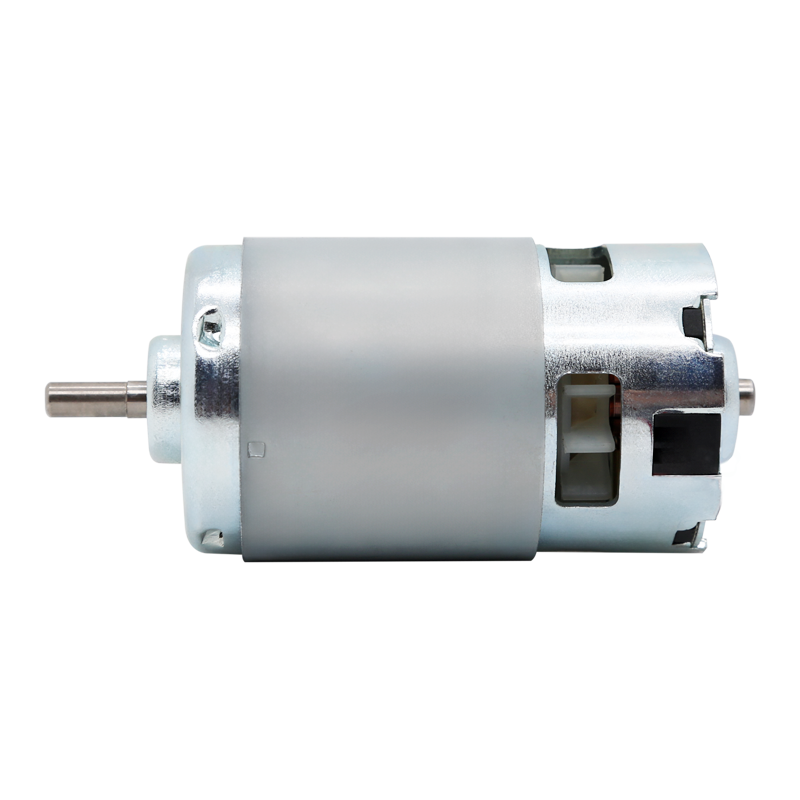

RS-997 Brush DC Motor for Snow Blowers

The RS-997 series brushed permanent magnet DC motor features pure copper windings and can be equipped with an internal cooling fan to boost continuous running performance. Two bearing options are available: oil-impregnated bearings (cost-effective with low noise) and ball bearings (reduces friction under high-load conditions for improved durability). It can also be configured with side exit wiring.
Compliant with EMC, VDE, RoHS, REACH and FFU standards, this motor streamlines customers' product certification processes. It is widely applied in lawn mowers, snow blowers, chainsaws, etc., and more.
For custom specifications, please contact us.

CONTACT US RS-997 Brush DC Motor for Snow Blowers
  • RS-997 Brush DC Motor for Snow Blowers
  • RS-997 Brush DC Motor for Snow Blowers
  • RS-997 Brush DC Motor for Snow Blowers

Specifications

Motor Length:

85mm(Excluding the Shaft)

Motor Diameter:

52mm(Add Magnet Shield Ring: 54.5mm Max)

Shaft Length:

Custom

Shaft Diameter:

6.35mm

Shaft Type:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Speed:

2000-30000RPM

Torque:

0-1.5N.m

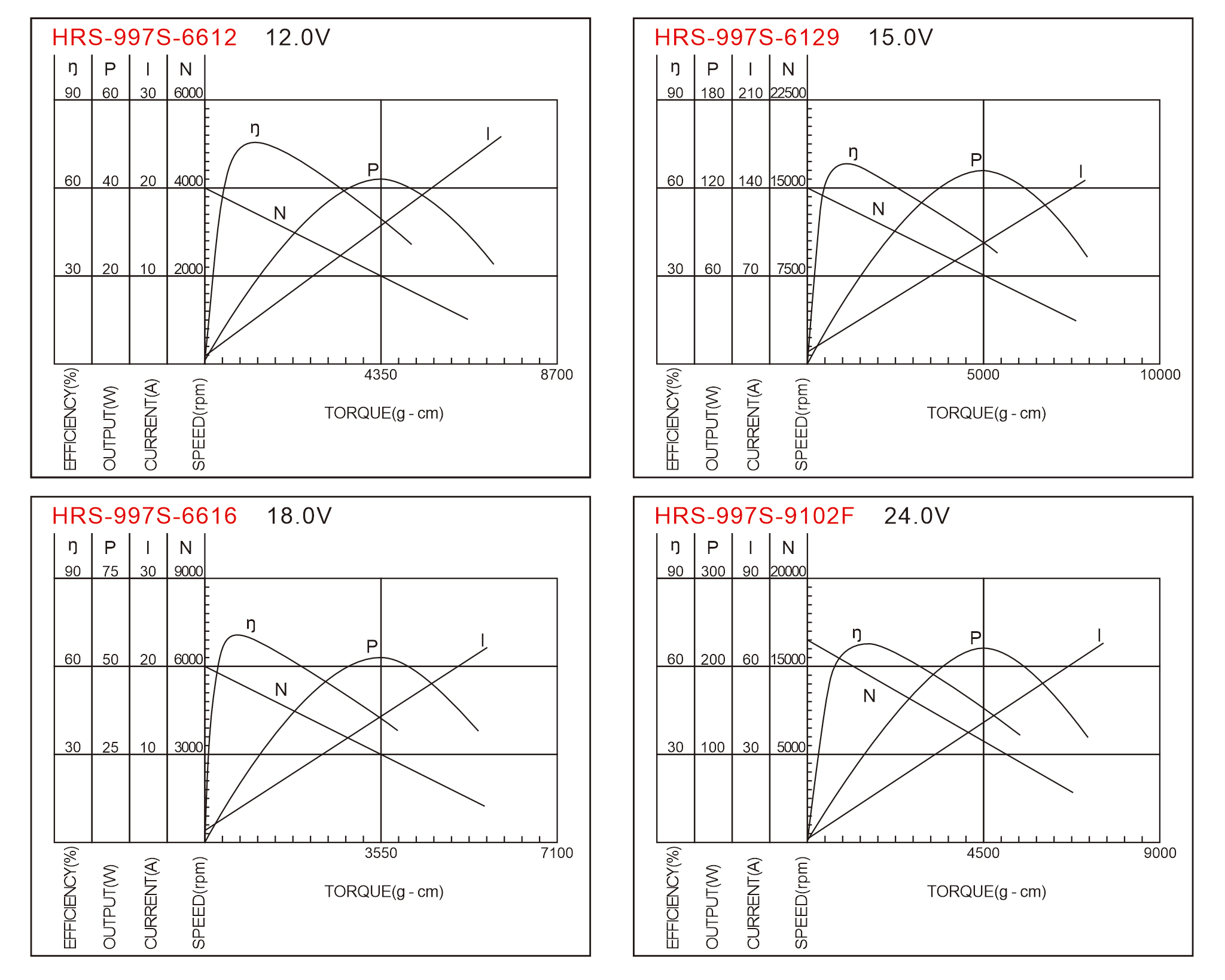

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
HRS-997S-6612 8.0 - 15.0 12.0V CONSTANT 4000 1 3400 4.8 1300 127.4 45.33 78.7 26.4 8666 849.3
HRS-997S-6129 12.0 - 18.0 15.0V CONSTANT 4080 1 3520 4.3 1200 117.6 43.32 67.2 25.1 8743 856.8
HRS-997S-6616 12.0 - 18.0 18.0V CONSTANT 6000 1 5150 4 1000 98 52.82 73.4 22.2 7058 691.7
HRS-997S-9102F 12.0 - 24.0 24.0V CONSTANT 16500 1.95 13580 13.5 1580 154.84 220.1 67.9 67.3 8928 874.9

Please inquire with your sales representative for output, performance, and EMC solution.
