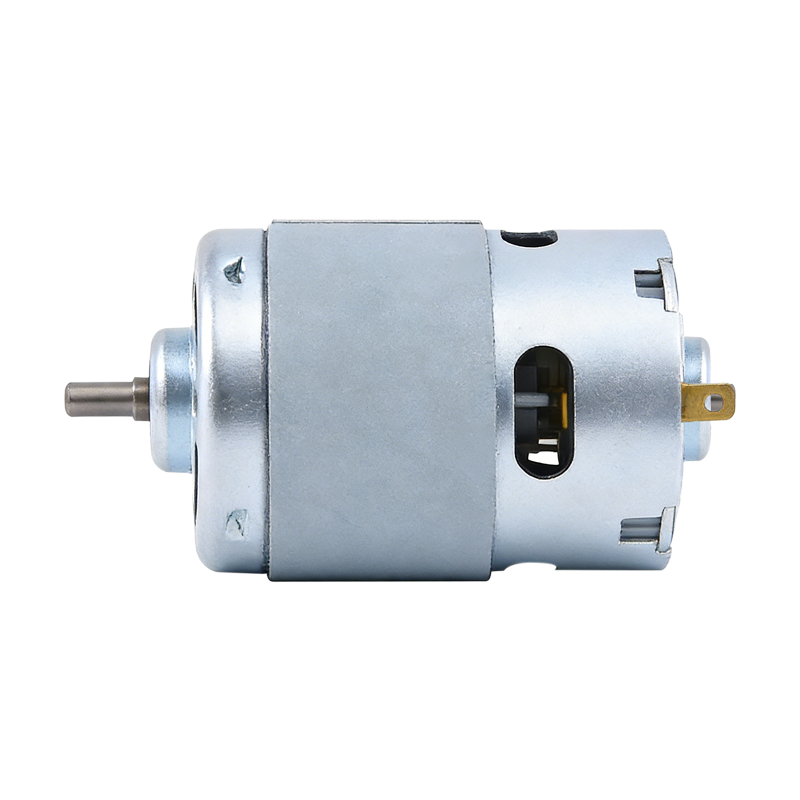

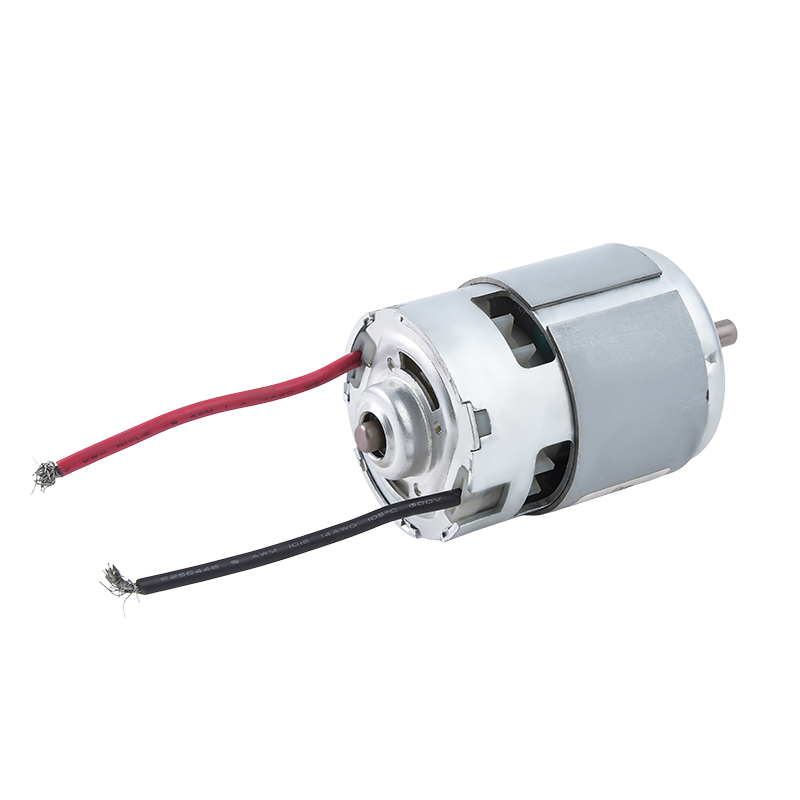

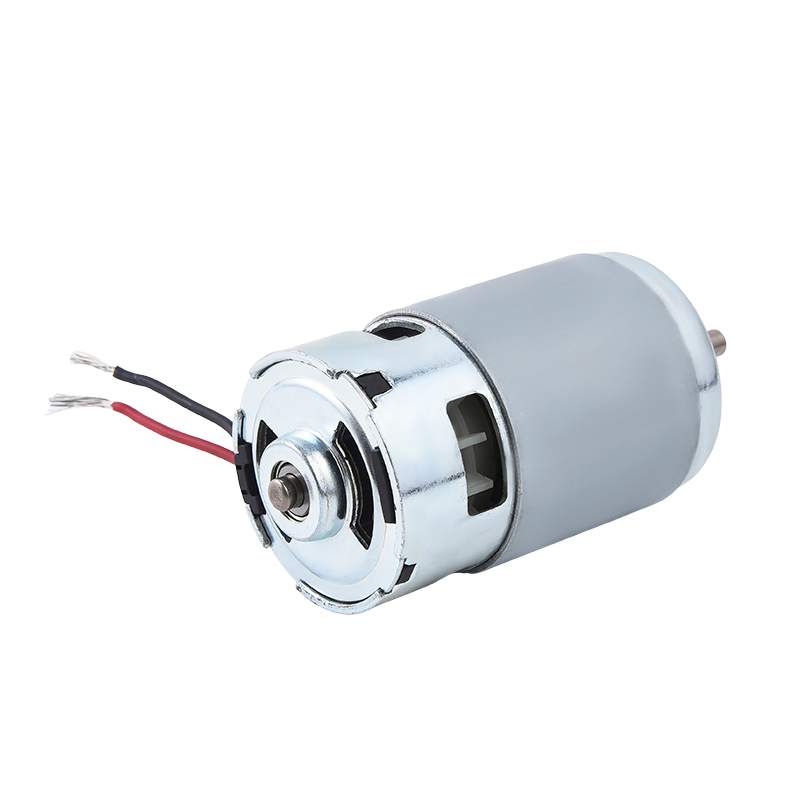

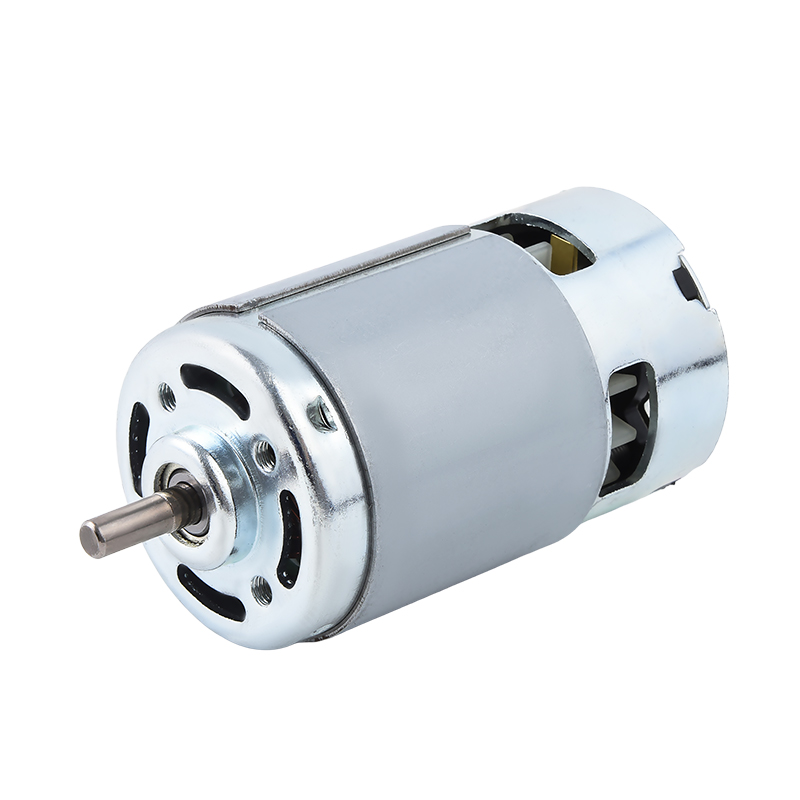

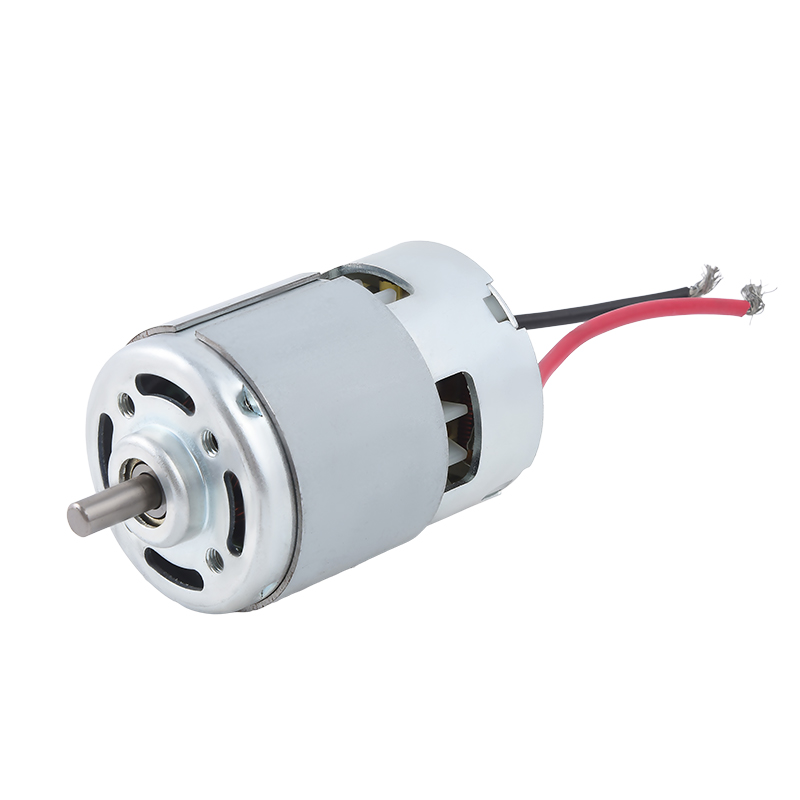

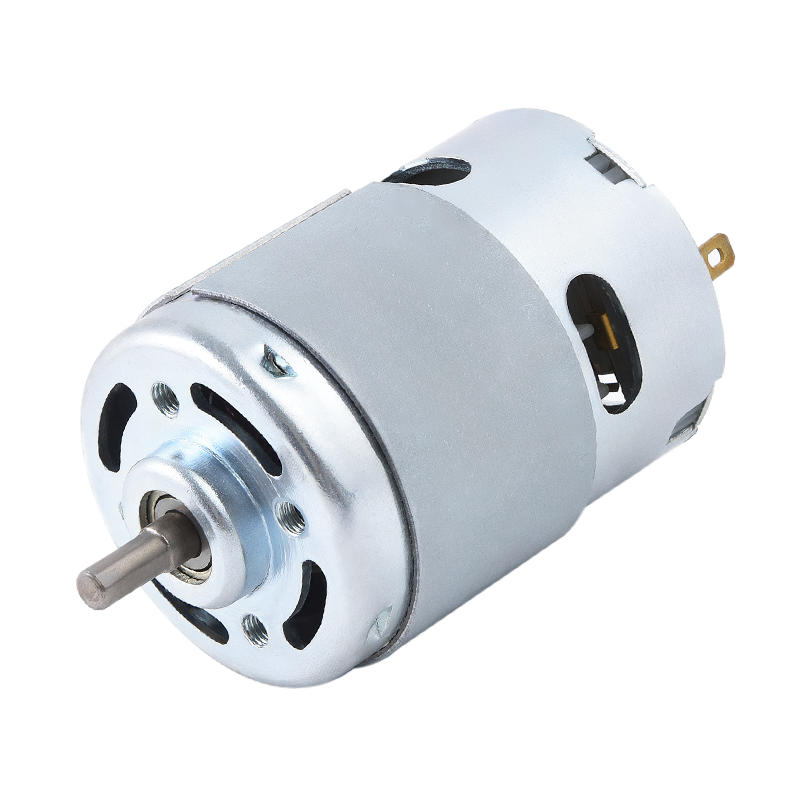

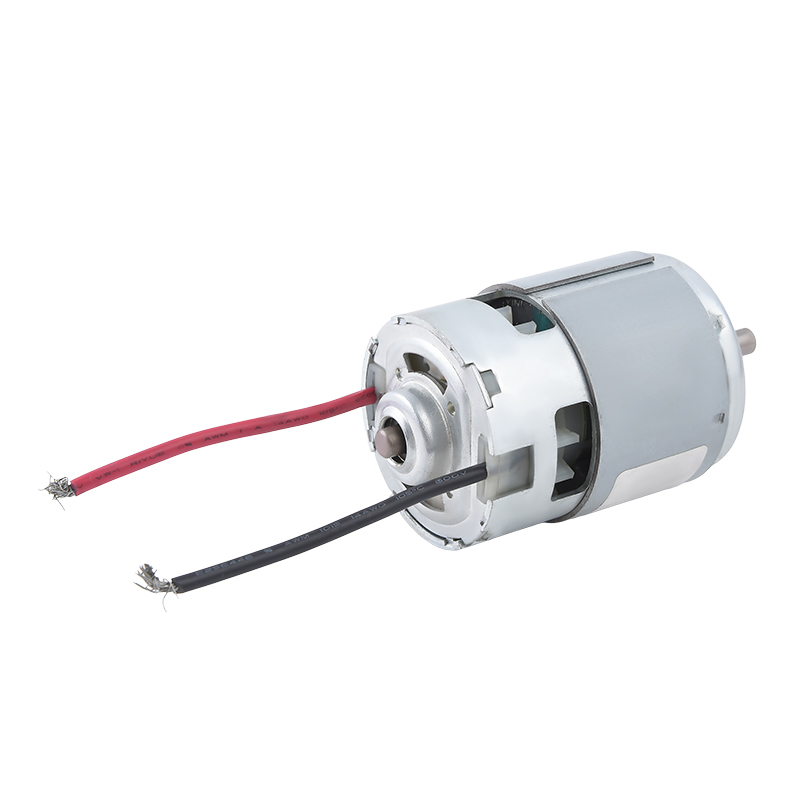

RS-977 High Speed Brush DC Motor for Lawn Mowers

HongYang RS-977 is a high-performance brushed permanent magnet DC motor. Operating at a voltage range of 0-48V, it boasts a no-load speed exceeding 30,000 RPM and a peak torque of 0.8 Nm, combining high-speed output with stable load capacity. Its precision-balanced rotor and silent bearings keep noise below 75 dB, ensuring long-term efficient and energy-saving operation.
Suitable for lawn mowers, power tools, household appliances, garden equipment, and car air pumps, the motor complies with international standards including EMC, VDE, RoHS, REACH and FFU and offers flexible customization services from HongYang.

CONTACT US RS-977 High Speed Brush DC Motor for Lawn Mowers
  • RS-977 High Speed Brush DC Motor for Lawn Mowers
  • RS-977 High Speed Brush DC Motor for Lawn Mowers
  • RS-977 High Speed Brush DC Motor for Lawn Mowers

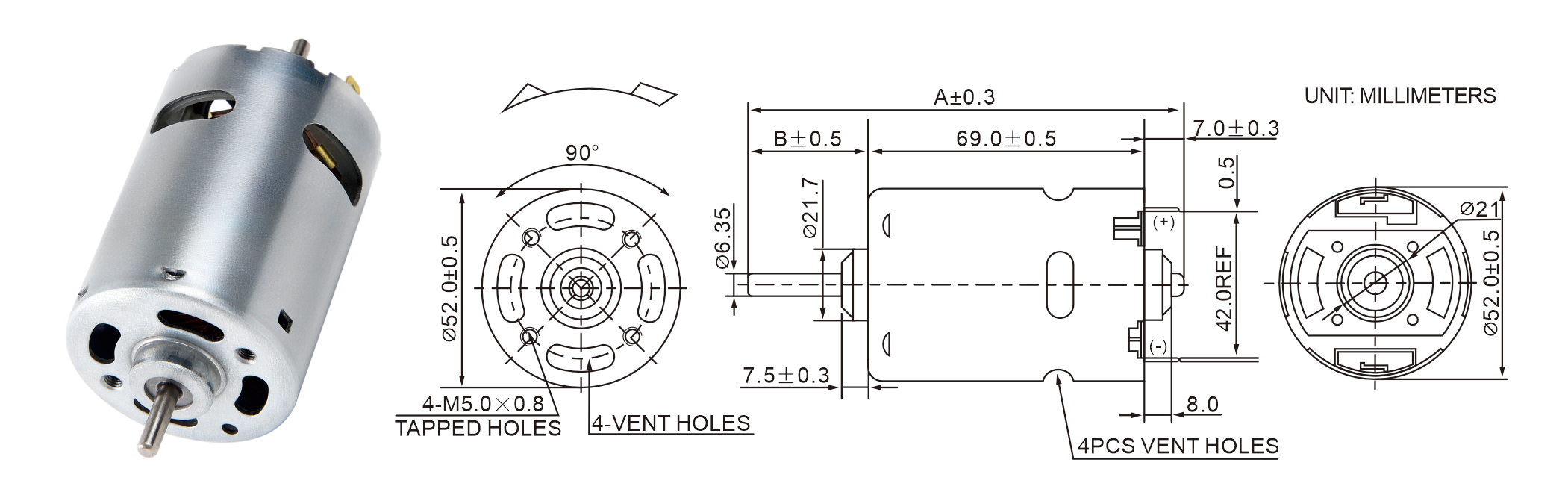

Specifications

Motor Length:

69mm(Excluding the Shaft)

Motor Diameter:

52mm(Add Magnet Shield Ring: 54mm Max)

Shaft Length:

Custom

Shaft Diameter:

6.35mm

Shaft Type:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Speed:

2000-30000RPM

Torque:

0-1.5N.m

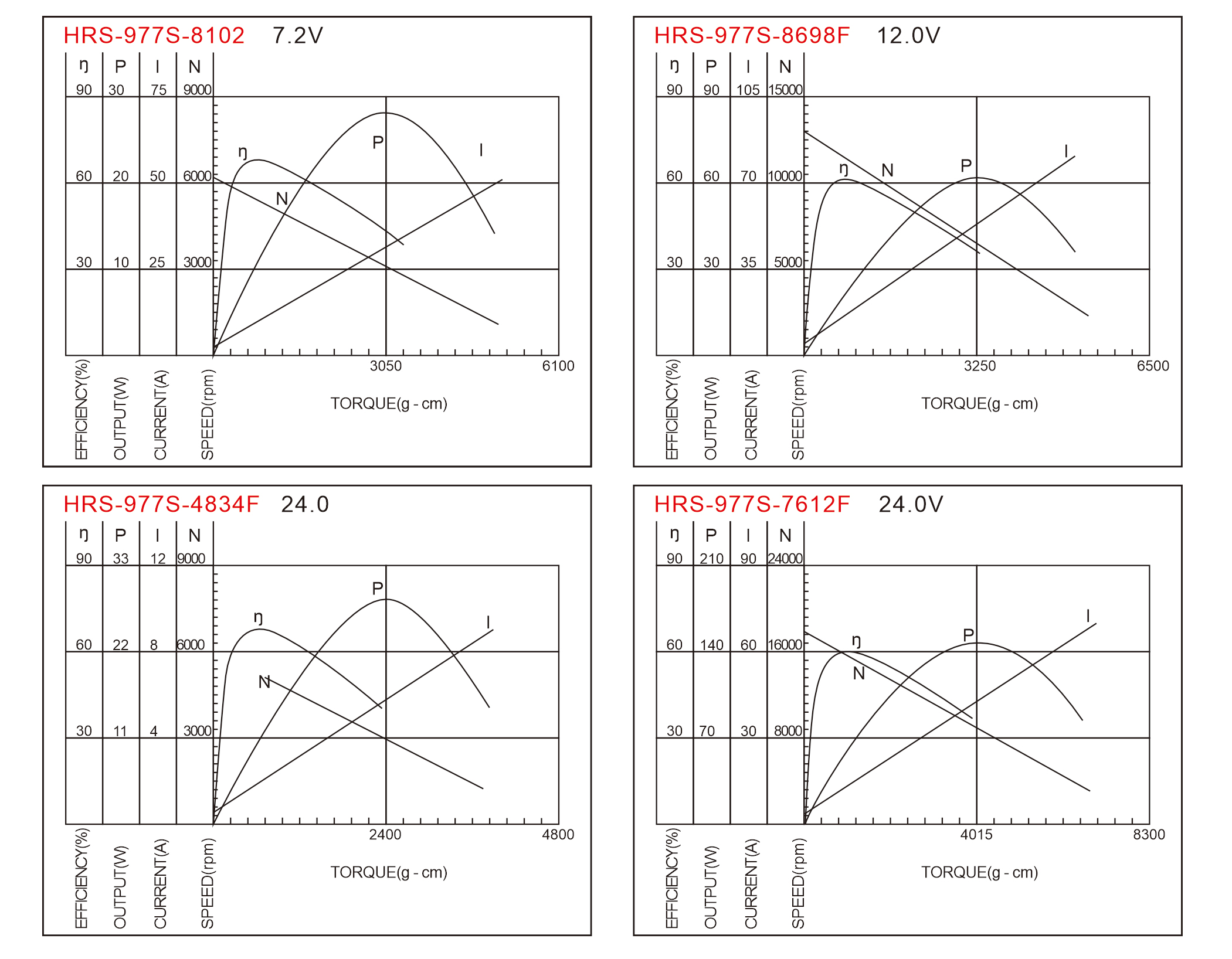

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
HRS-977S-8102 6.0 - 9.0 7.2V CONSTANT 6100 2 5600 6 500 49 28.71 66.5 50.8 6100 597.8
HRS-977S-8698F 9.0 - 15.0 12.0V CONSTANT 13000 2.6 12000 8.5 500 49 61.53 60.3 79.3 6500 637
HRS-977S-4834F 18.0 - 24.0 24.0V CONSTANT 6200 0.9 5550 1.75 500 49 28.46 67.8 9.01 4769 467.4
HRS-977S-7612F 18.0 - 24.0 24.0V CONSTANT 17500 2.5 15600 10 900 88.2 144 60 71.6 8290 812.4

Please inquire with your sales representative for output, performance, and EMC solution.
