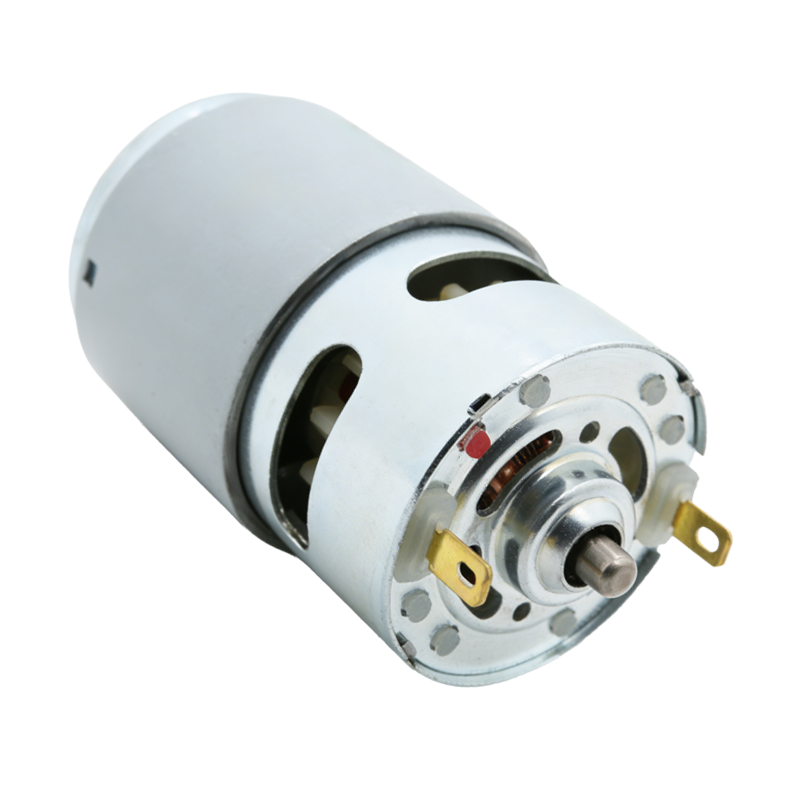

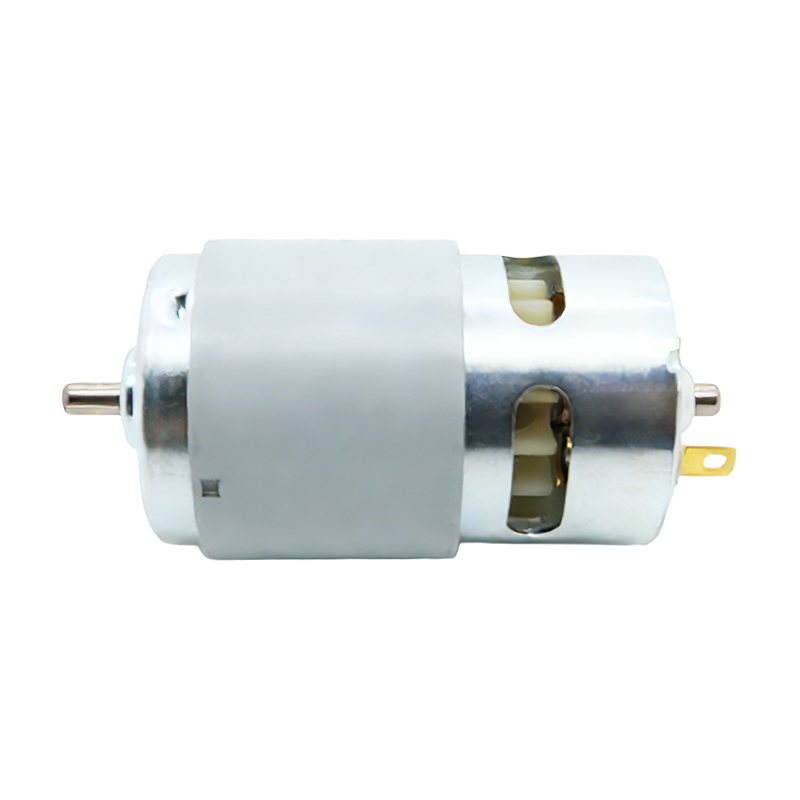

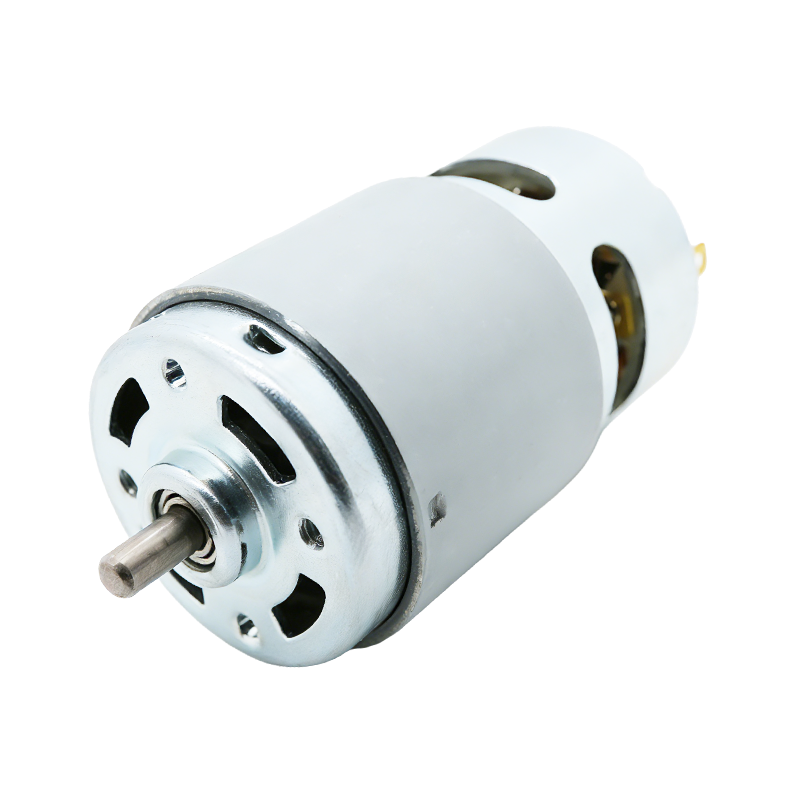

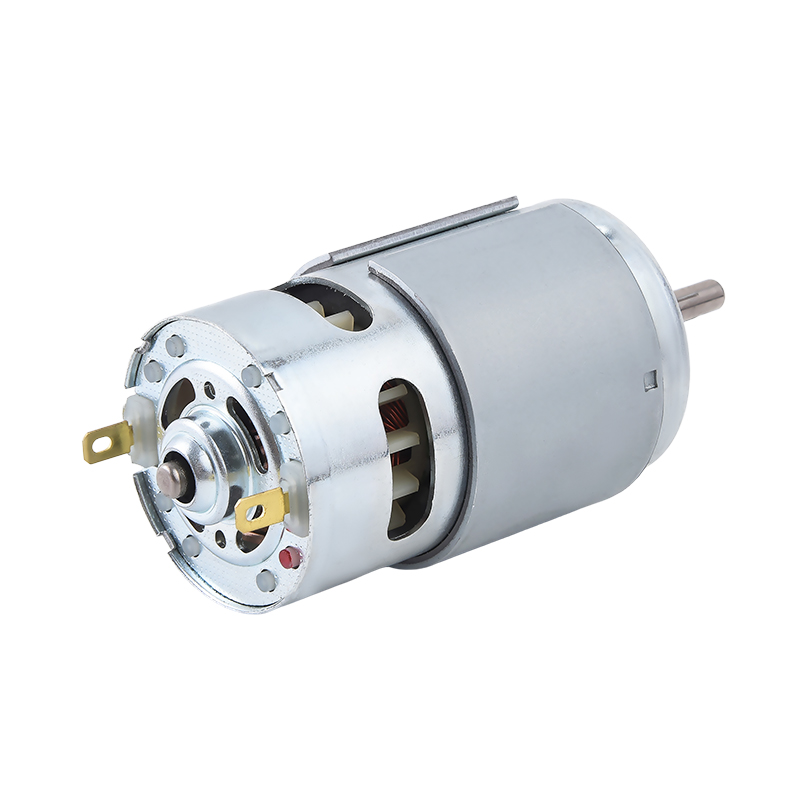

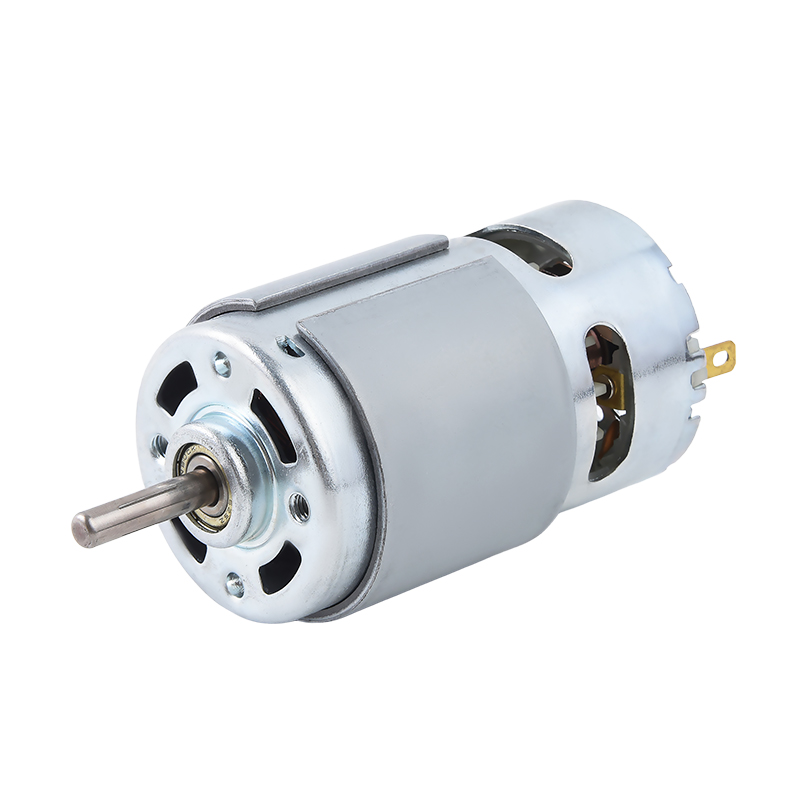

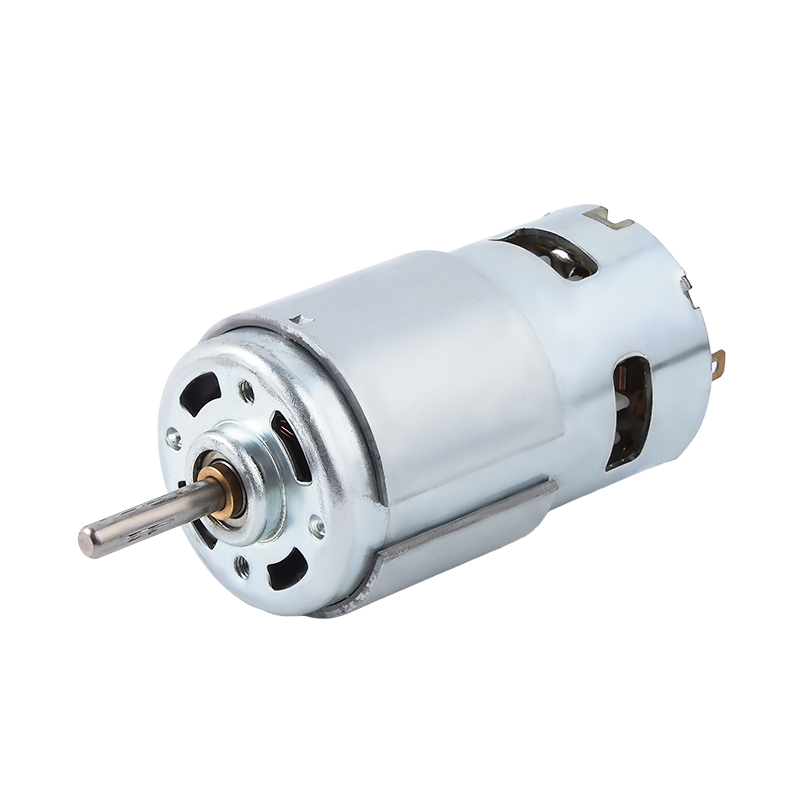

RS-785 Electric Brush DC Motor for Electric Saws

The RS-785 is a high-power brushed permanent magnet DC motor constructed with pure copper windings. An optional built-in cooling fan boosts its continuous operation performance. It is available with oil-impregnated or ball bearings, and optional built-in varistors, capacitors and inductors. Boasting an output power of over 100W and noise levels below 75dB, it excels in power tools (such as drilling and cutting equipment), household appliances (such as hair dryers and juicers) and garden tools (such as pole saws and lawn rollers).
Compliant with EMC, VDE, RoHS, REACH and FFU standards, this motor meets global regulatory requirements. HongYang provides one-stop solutions with personalized parameter customization to boost adaptability and fully satisfy customer-specific needs.

CONTACT US RS-785 Electric Brush DC Motor for Electric Saws
  • RS-785 Electric Brush DC Motor for Electric Saws
  • RS-785 Electric Brush DC Motor for Electric Saws
  • RS-785 Electric Brush DC Motor for Electric Saws
  • RS-785 Electric Brush DC Motor for Electric Saws
  • RS-785 Electric Brush DC Motor for Electric Saws
  • RS-785 Electric Brush DC Motor for Electric Saws
  • RS-785 Electric Brush DC Motor for Electric Saws

Specifications

Motor Length:

70.3mm(Excluding the Shaft)

Motor Diameter:

42mm(Add Magnet Shield Ring: 46.5mm Max)

Shaft Length:

Custom

Shaft Diameter:

5mm

Shaft Type:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Speed:

2000-30000RPM

Torque:

0-1N.m
