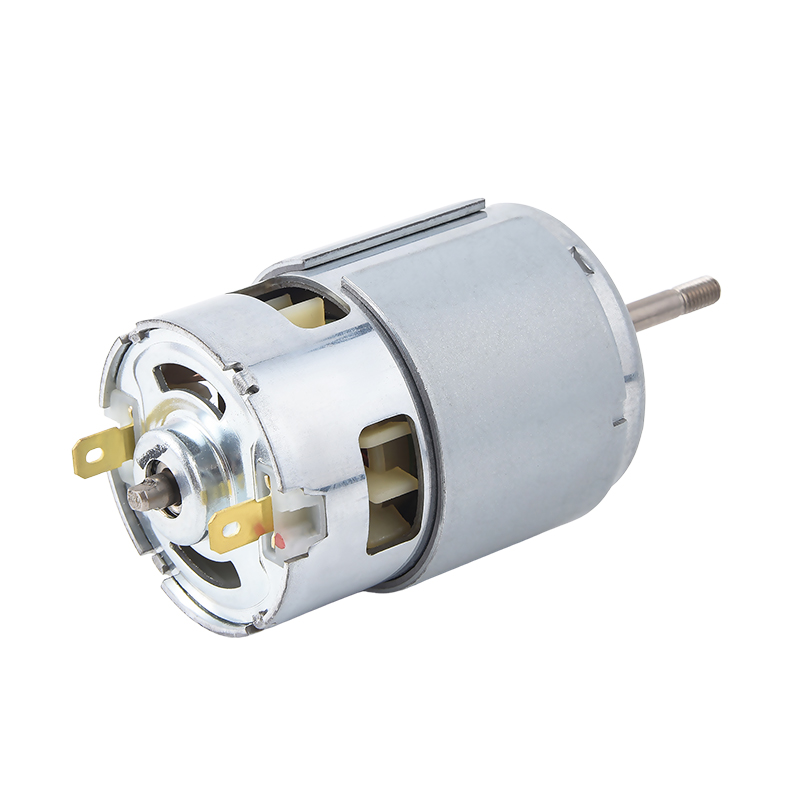

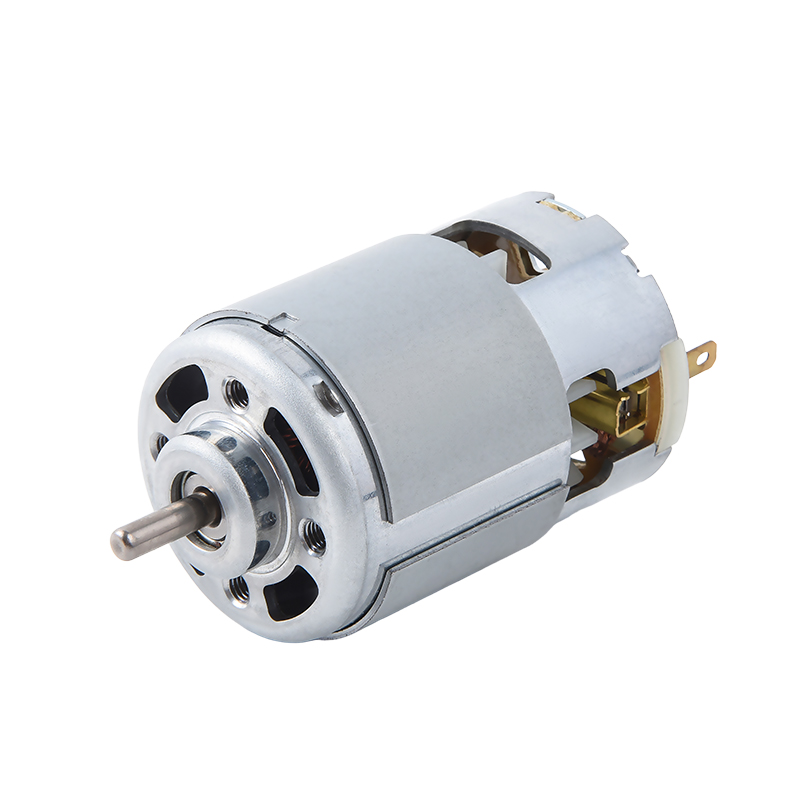

RS-887 Temperature Resistance Brush DC Motor for Electric Chainsaws

The RS-887 brushed permanent magnet DC motor delivers ultra-high torque (up to 1000+ g·cm), meeting the high thrust and heavy-load requirements of various equipment. It features high speed and stable, low-vibration performance under load. Compact and lightweight at just 506g, its multi-ventilation casing and built-in fan ensure reliable heat dissipation and continuous running capability.
Compliant with EMC, VDE, RoHS, REACH and FFU standards, the HongYang RS-887 is widely used in blower vacuums, snow blowers, chain grinders, electric chainsaws and more. HongYang is committed to providing one-stop motor solutions for global customers.

CONTACT US RS-887 Temperature Resistance Brush DC Motor  for Electric Chainsaws

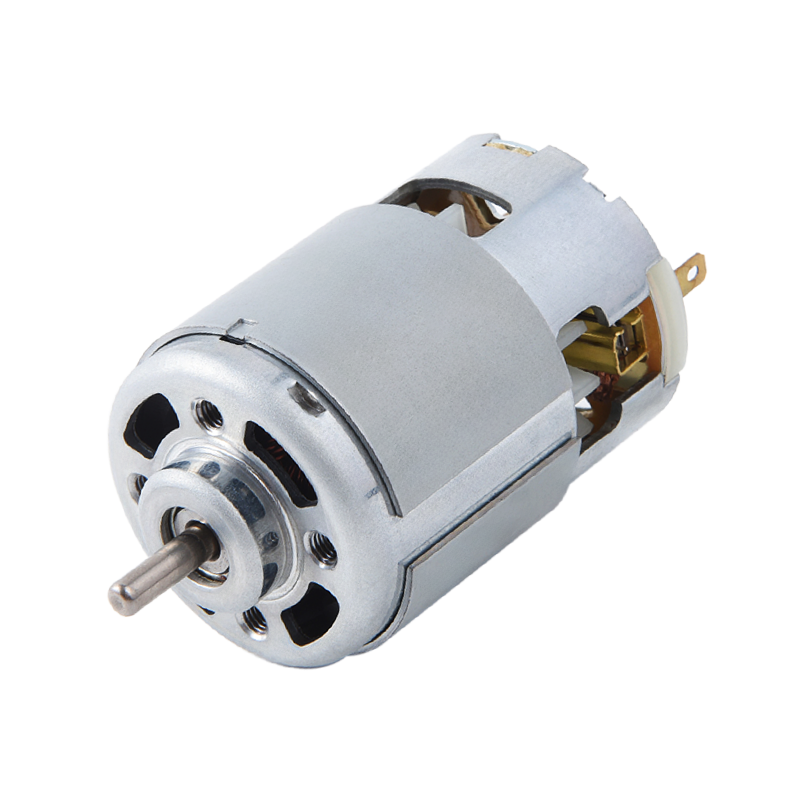

  • RS-887 Temperature Resistance Brush DC Motor  for Electric Chainsaws

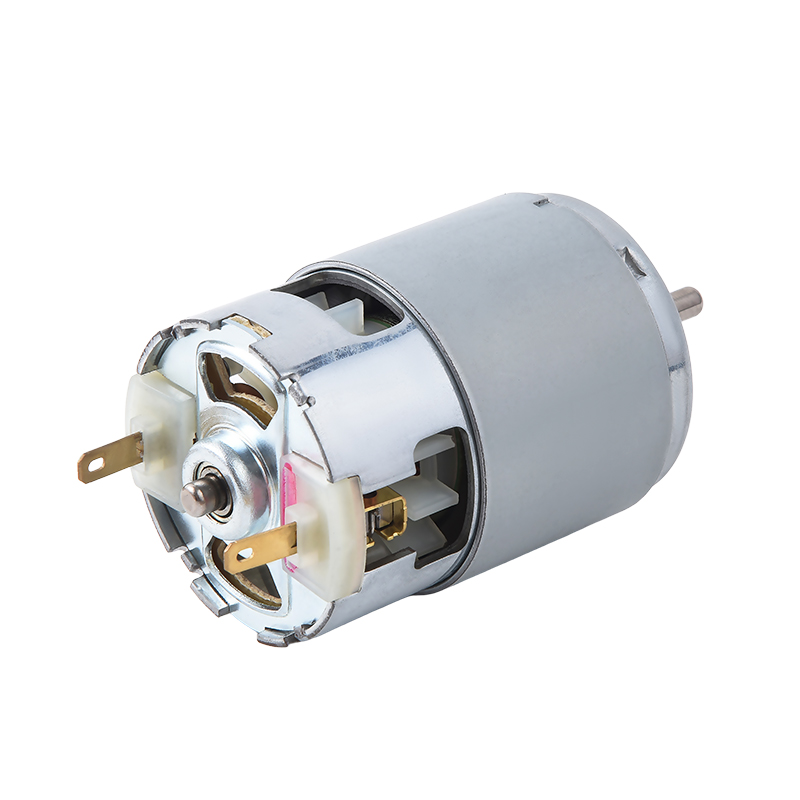

  • RS-887 Temperature Resistance Brush DC Motor  for Electric Chainsaws

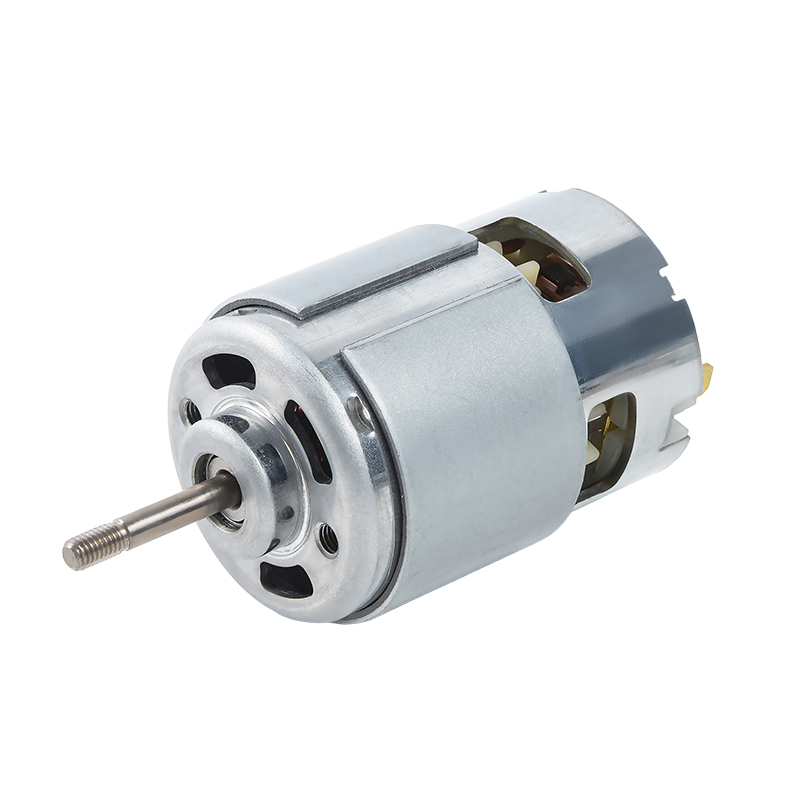

  • RS-887 Temperature Resistance Brush DC Motor  for Electric Chainsaws

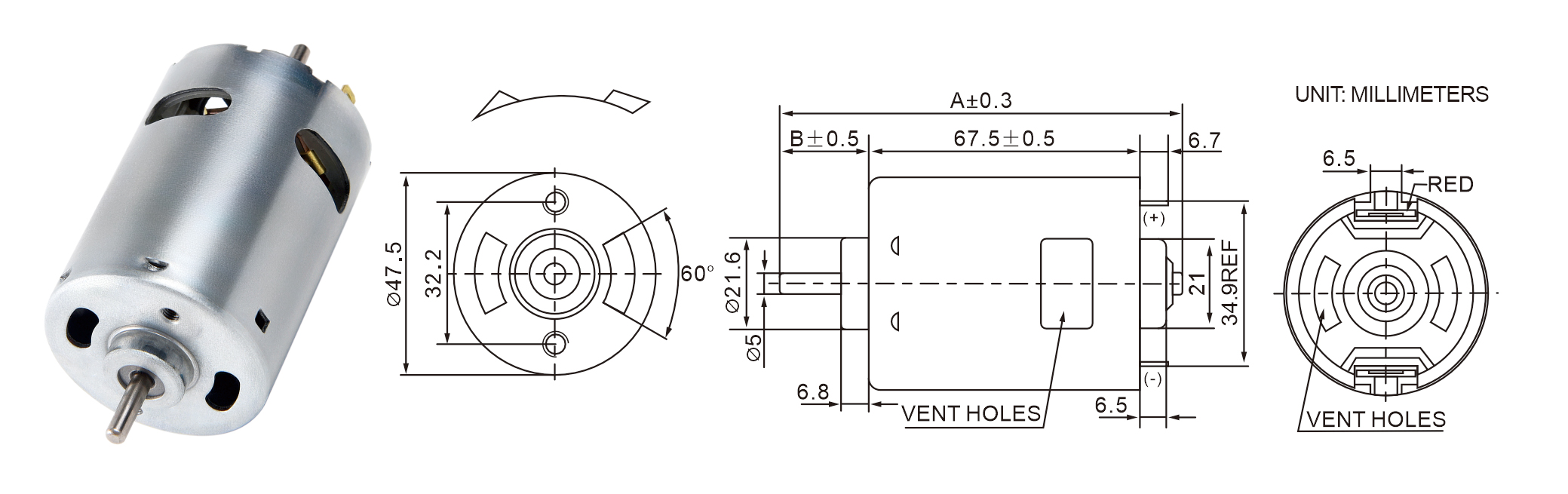

Specifications

Motor Length:

67.5mm(Excluding the Shaft)

Motor Diameter:

48mm(Add Magnet Shield Ring: 52.5mm Max)

Shaft Length:

Custom

Shaft Diameter:

5mm

Shaft Type:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Speed:

2000-30000RPM

Torque:

0-1N.m

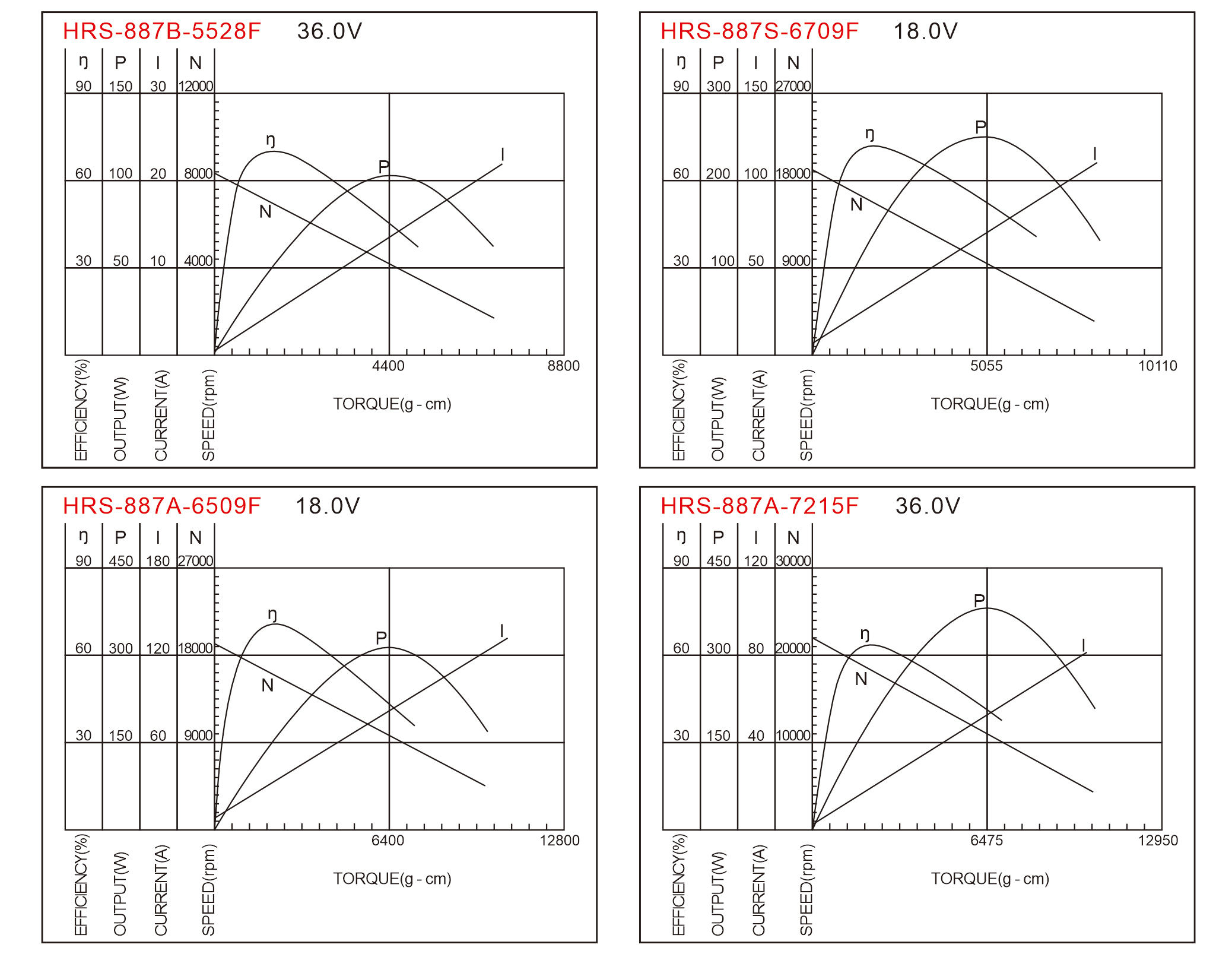

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
HRS-887B-5528F 30.0 - 42.0 36.0V CONSTANT 8800 0.75 7437 4.09 1363 133.6 104 70.6 22.3 8800 862.7
HRS-887S-6709F 16.0 - 20.0 18.0V CONSTANT 19200 3.43 16323 19.3 1514 148.4 253 73 110 10106 990.8
HRS-887A-6509F 16.0 - 20.0 18.0V CONSTANT 19200 4.14 16410 23.5 1860 182.4 313 73.9 138 12800 1254.9
HRS-887A-7215F 30.0 - 42.0 36.0V CONSTANT 22000 2.3 18821 13.6 1870 183.3 361 73.7 80.6 12942 1268.8

Please inquire with your sales representative for output, performance, and EMC solution.



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
HRS-885S-6937F 6.0 - 12.0 12.0V CONSTANT 19000 3 16500 21 980 96.04 165.8 65.8 147.4 7448 729.9
HRS-885S-8511F 6.0 - 15.0 14.4V CONSTANT 20200 2.8 17800 19 1000 98 182.6 63.1 139.2 8417 824.9
HRS-885S-7015F 8.0 - 15.0 18.0V CONSTANT 22500 3.2 19500 19.8 1150 112.7 230 65 124.5 8625 845.3
HRS-885S-6813F 12.0 - 30.0 30.0V CONSTANT 16400 1.5 13600 9.8 1370 134.2 191.1 65 50.12 8025 786.5

Please inquire with your sales representative for output, performance, and EMC solution.
