Yuyao Hongyang Micromotor Co., Ltd. Home / Products / Brush DC Motor / RS-380 Mini Brushed DC Motor for Electric Screw Drivers

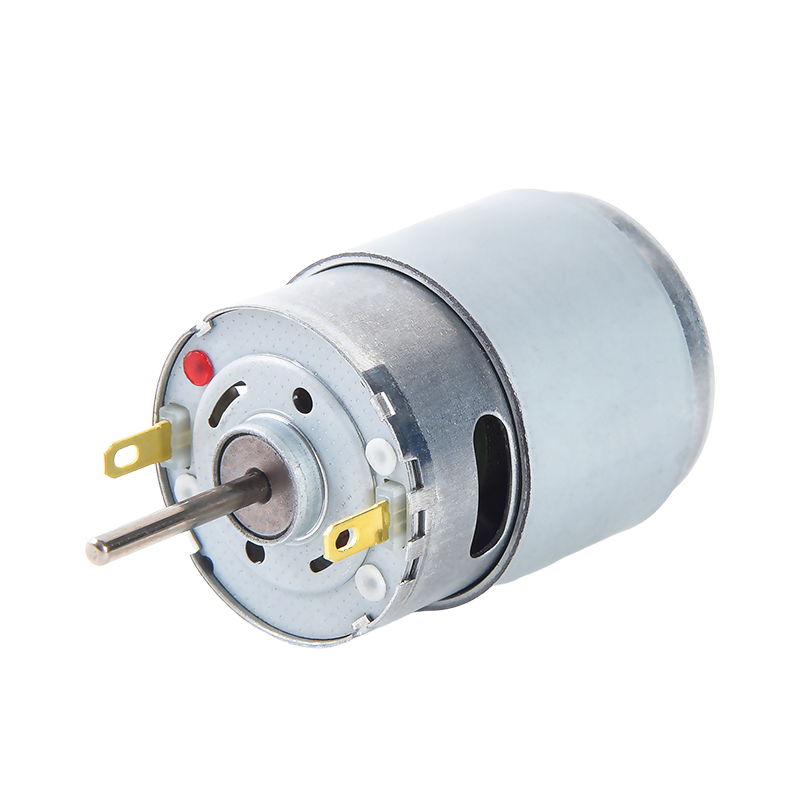

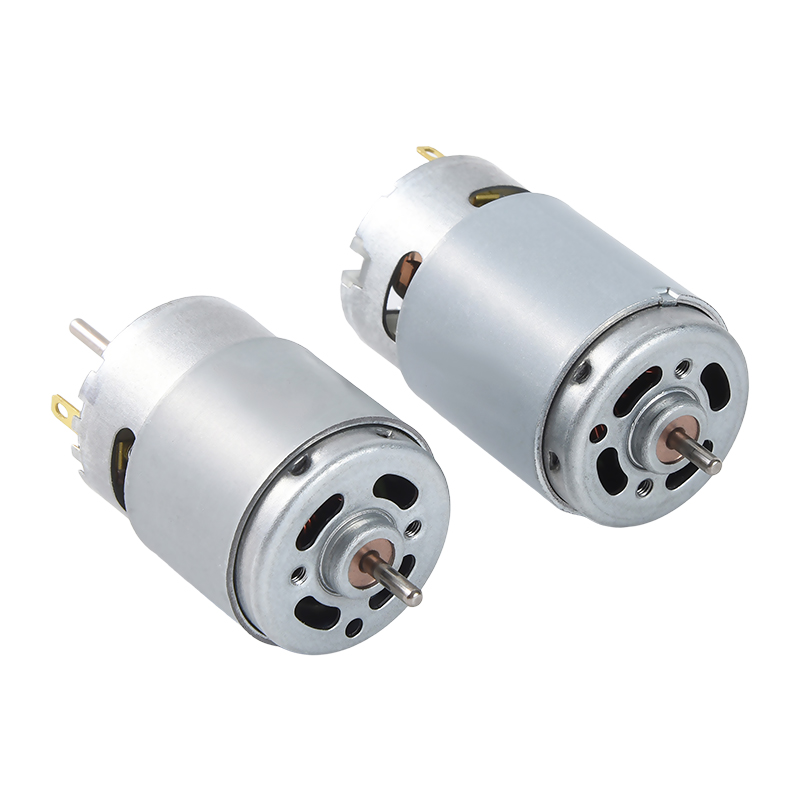

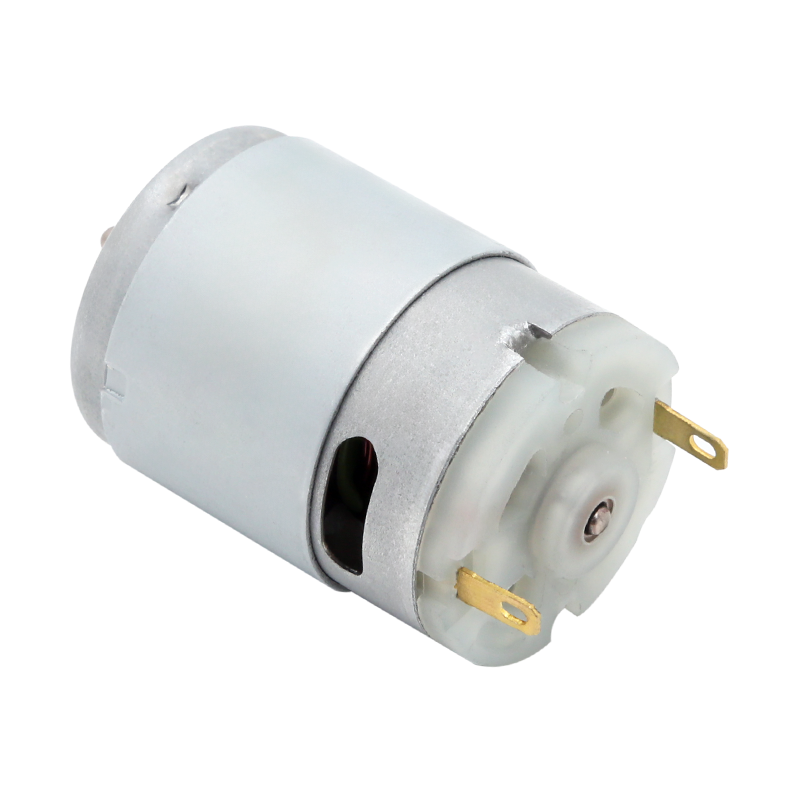

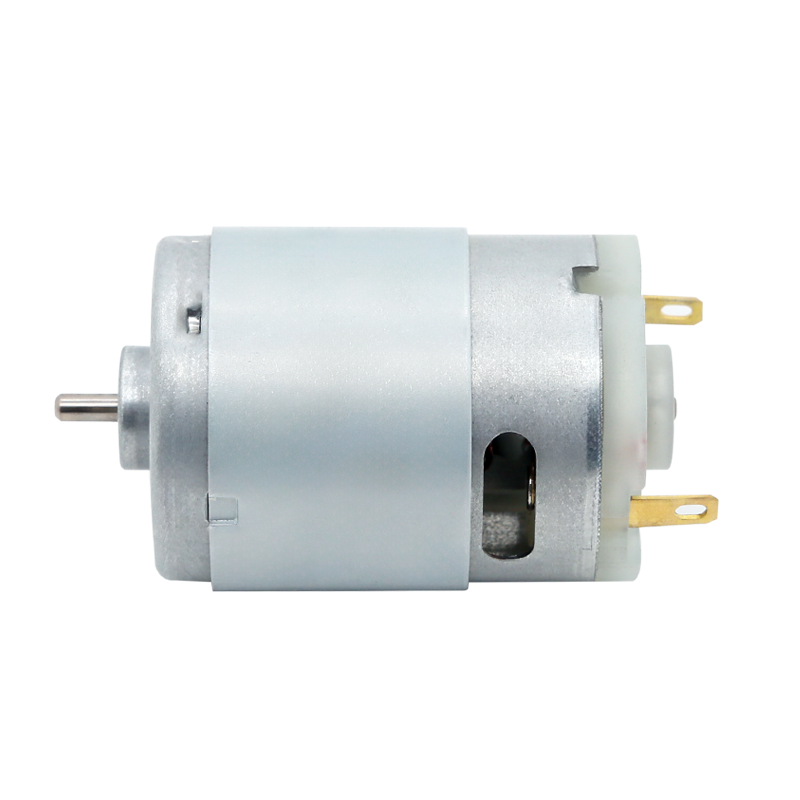

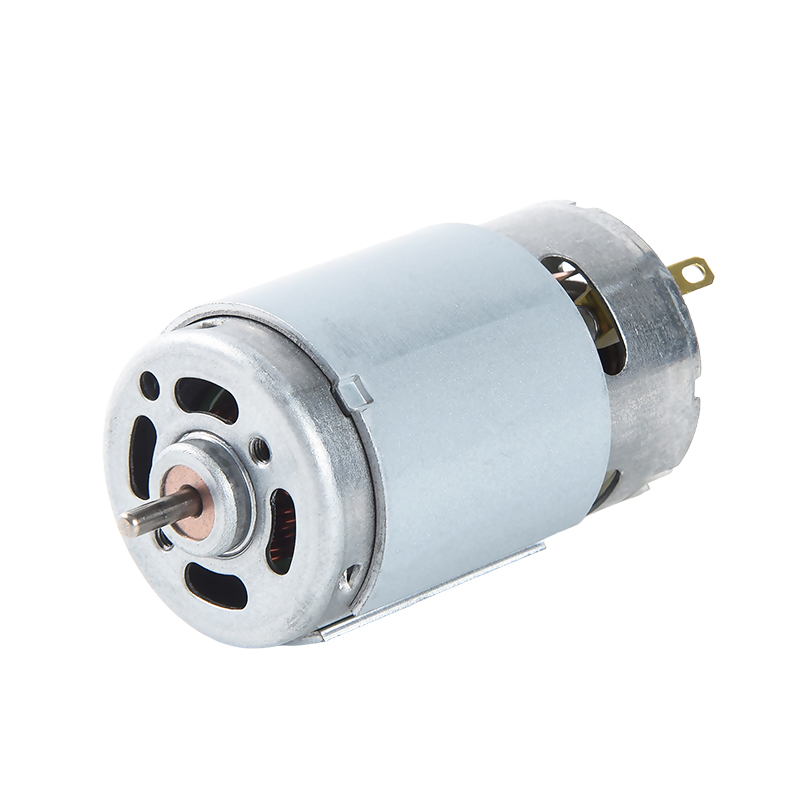

RS-380 Mini Brushed DC Motor for Electric Screw Drivers

The RS-380/385 is a brushed permanent magnet DC motor constructed with pure copper windings. It can be equipped with an internal cooling fan to boost durability and extend service life.
Two bearing options are available: oil-impregnated bearings are cost-effective, while ball bearings reduce friction, minimize end play and lower noise during high-load operation.
Our motors comply with international standards including EMC, VDE, RoHS, REACH and FFU.
These motors are widely applied in various fields such as electric screwdrivers and other power tools, air pumps, handheld fans, robot vacuums, dishwashers and auto parts.
For custom specifications such as voltage, speed and torque, please feel free to contact us.

CONTACT US RS-380 Mini Brushed DC Motor for Electric Screw Drivers
  • RS-380 Mini Brushed DC Motor for Electric Screw Drivers
  • RS-380 Mini Brushed DC Motor for Electric Screw Drivers
  • RS-380 Mini Brushed DC Motor for Electric Screw Drivers

Specifications

Motor Length:

38mm(Excluding the Shaft)

Motor Diameter:

27.7mm(Add Magnet Shield Ring: 30mm Max)

Shaft Length:

Custom

Shaft Diameter:

2.3mm

Shaft Type:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Speed:

2000-30000RPM

Torque:

0-0.01N.m
