37FG555 37mm Gear Motor

1. High Torque DC Brushed Gear Motor. Rated 12V working voltage, output torque reaches up to 2.00 N · m. Multiple gear ratio options deliver diverse speed outputs, with maximum shaft pressure up to 10kgf for stable heavy load performance.
2. Durable zinc alloy gear housing. Spur gears are made of 40Cr steel with an oil-bearing structure. Low backlash within 2 degrees for reliable long-term continuous operation.
3. Optional A‑B 2‑channel 5V 12PPR encoder module. Provides accurate speed and position feedback to support closed‑loop control for automation and robotic projects.
4. Standard square flange with 4‑M4 mounting holes. Complete dimensional drawing supports easy installation for robot equipment and various DIY engineering applications.
5. Wide operating voltage from 3.0V to 18.0V. Multiple model versions are available. Refer to the specification table and select the correct speed and torque for your application scenarios.

CONTACT US 37FG555 37mm Gear Motor
  • 37FG555 37mm Gear Motor

Specifications

55555-1 Housing material Zinc alloy Encoder Optional
Model TJZ37FG 55555-2

A-B 2 channels
555Encoder-5V 12PPR
Bearing Oil bearing
Gear Modulus 0.5M-0.7M
Commutator Brushed
Gear material 40Cr steel
Max pressure force on shaft ≤10kgf
Back lash ≤2°
Brake available No
Gear construction Spur gear

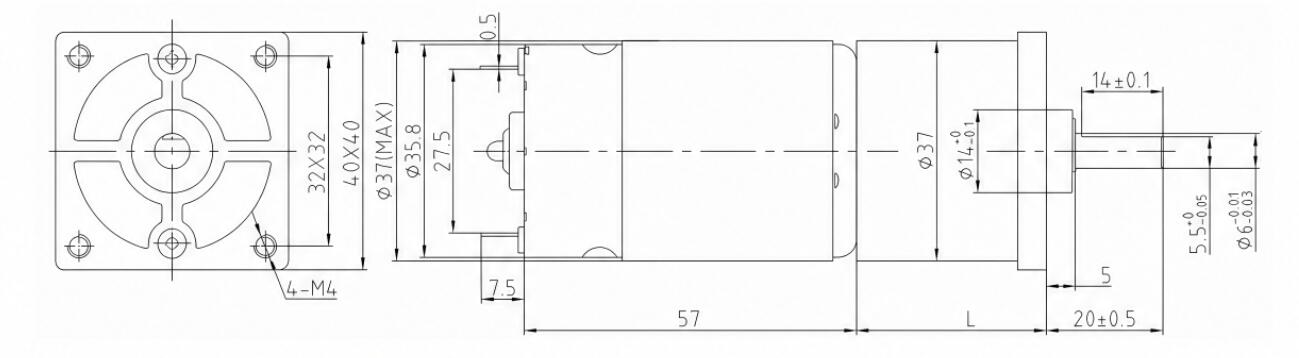

Dimensions(mm)
55555
Technical Data

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM Dia L Min-Max V V mA RPM mA N.m RPM
5700 4.6 2 37 25.5 TJZ37FG4.6i-12V-1239.1R 3.0-18.0 12 310 1239.1 1260 0.08 991.3
5700 5.9 2 37 25.5 TJZ37FG5.9i-12V-966.1R 3.0-18.0 12 310 966.1 1260 0.1 772.9
5700 8.4 3 37 25.5 TJZ37FG8.4i-12V-678.6R 3.0-18.0 12 310 678.6 1260 0.13 542.9
5700 10.6 3 37 25.5 TJZ37FG10.6i-12V-537.7R 3.0-18.0 12 310 537.7 1260 0.16 430.2
5700 13.5 3 37 25.5 TJZ37FG13.5i-12V-422.2R 3.0-18.0 12 310 422.2 1260 0.2 337.8
5700 19.3 4 37 27.5 TJZ37FG19.3i-12V-295.3R 3.0-18.0 12 310 295.3 1260 0.26 236.3
5700 24.4 4 37 27.5 TJZ37FG24.4i-12V-233.6R 3.0-18.0 12 310 233.6 1260 0.33 186.9
5700 31.6 4 37 27.5 TJZ37FG31.6i-12V-180.4R 3.0-18.0 12 310 180.4 1260 0.43 144.3
5700 45 5 37 29.5 TJZ37FG45i-12V-126.7R 3.0-18.0 12 310 126.7 1260 0.55 101.3
5700 57 5 37 29.5 TJZ37FG57i-12V-100R 3.0-18.0 12 310 100 1260 0.69 80
5700 73.6 5 37 29.5 TJZ37FG73.6i-12V-77.4R 3.0-18.0 12 310 77.4 1260 0.89 62
5700 105 6 37 32.5 TJZ37FG105i-12V-54.3R 3.0-18.0 12 310 54.3 1260 1.15 43.4
5700 133 6 37 32.5 TJZ37FG133i-12V-42.9R 3.0-18.0 12 310 42.9 1260 1.45 34.3
5700 172 6 37 32.5 TJZ37FG172i-12V-33.1R 3.0-18.0 12 310 33.1 1260 1.88 26.5
5700 245 7 37 35.5 TJZ37FG245i-12V-23.3R 3.0-18.0 12 310 23.3 1260 2 18.6
5700 310 7 37 35.5 TJZ37FG310i-12V-18.4R 3.0-18.0 12 310 18.4 1260 2 14.7
5700 401 7 37 35.5 TJZ37FG401i-12V-14.2R 3.0-18.0 12 310 14.2 1260 2 11.4

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
