Yuyao Hongyang Micromotor Co., Ltd. Home / Products / Brush DC Motor / RS-365 Micro DC Motor for Vending Machine

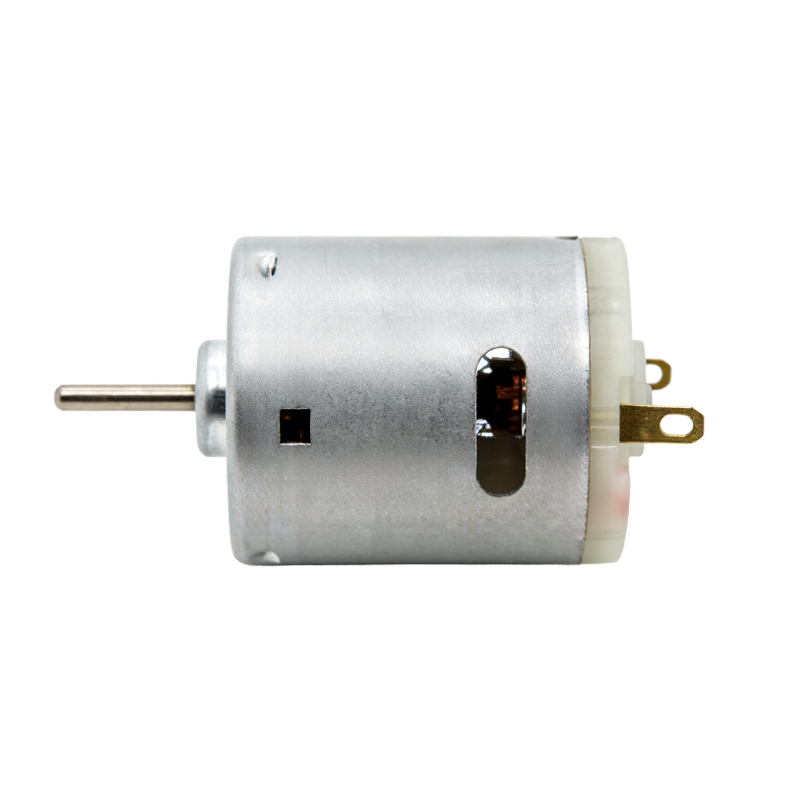

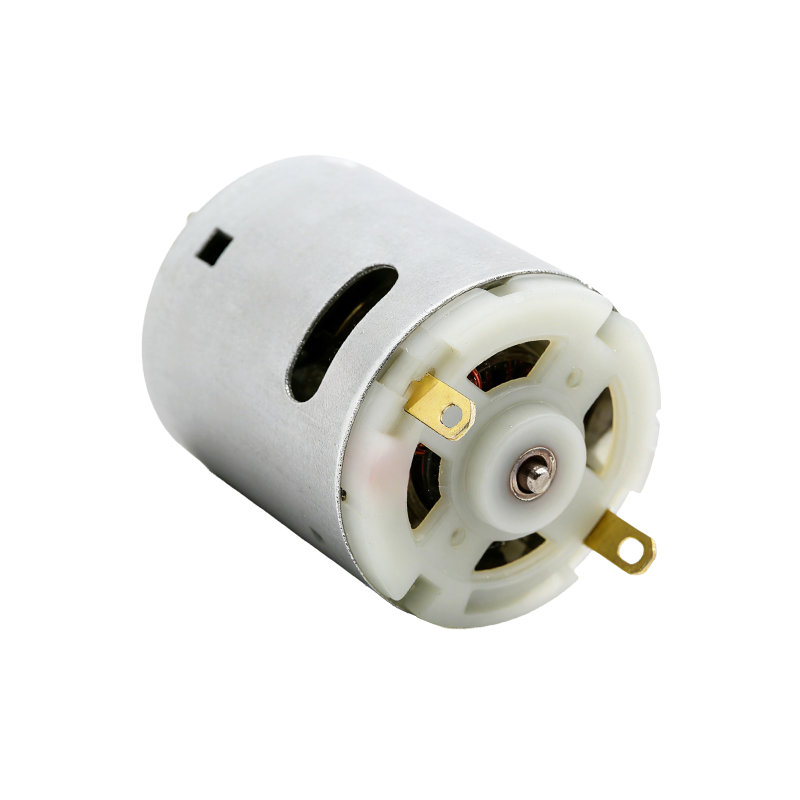

RS-365 Micro DC Motor for Vending Machine

Hongyang RS365 brushed DC motor features fine precision, small tolerance and stable performance. Its high-strength steel shell with high grinding precision, iron or plastic rear cover options, strong magnet for large torque and high efficiency, and low noise. Compact size, it fits electric toothbrushes, shavers, hair dryers, vending machines, toy cars, water pumps, etc. Reliable quality, customized service available.

Suitable for applications such as vending machines, electric toothbrushes, shavers, and air pumps; features a compact size for easy installation in small devices, precision tolerances, low noise, and high reliability. Supports high-volume custom production.

Customizable options: Voltage, shaft type, shaft length, speed, current, end cap material (iron/plastic), magnetic shielding ring (optional), EMC/CE certification.

Customization process: ① Inform us of your needs → ② Solution confirmation → ③ Prototype production (15–25 days) → ④ Mass production (20–30 days)

CONTACT US RS-365 Micro DC Motor for Vending Machine
  • RS-365 Micro DC Motor for Vending Machine
  • RS-365 Micro DC Motor for Vending Machine
  • RS-365 Micro DC Motor for Vending Machine

Specifications

Parameter

Numerical value

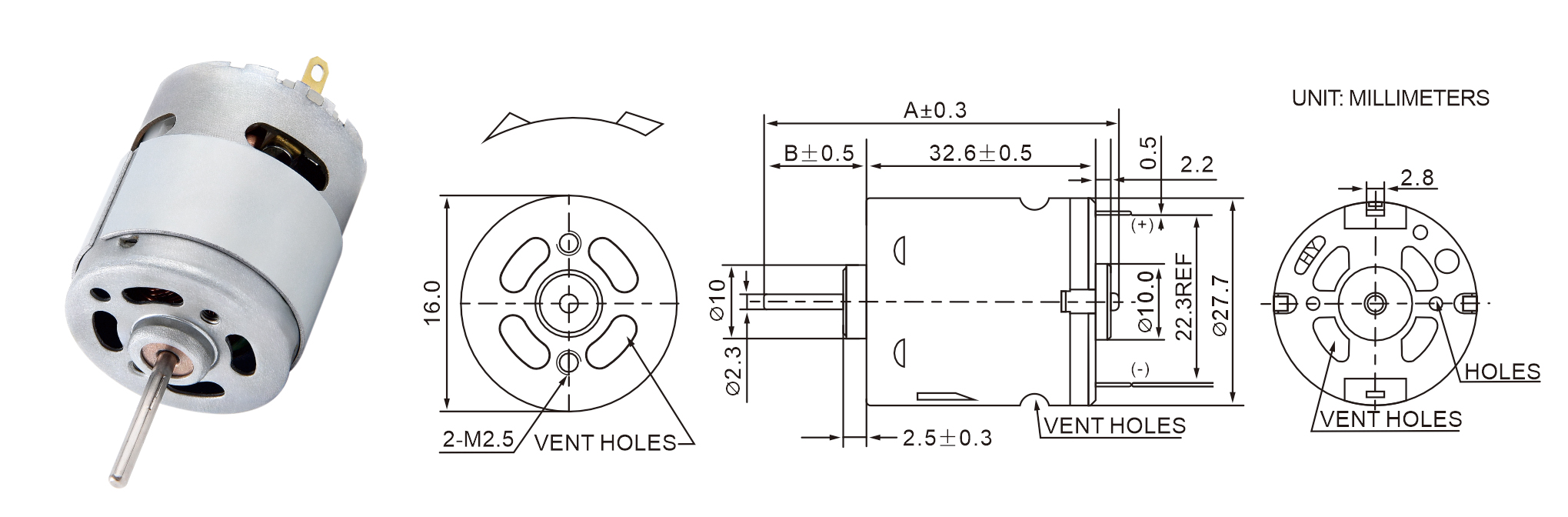

Motor length

32.5 mm (excluding shaft)

Motor diameter

27.7 mm (maximum 29.5 mm with magnetic shielding ring)

Shaft diameter

2.3 mm

Shaft type

Round shafts, D-cut shafts, knurled shafts, threaded shafts, etc.

Voltage range

0 – 36 V

Rotational speed range

2,000 – 30,000 RPM

Stall torque

 0.05 N·m

Accessories can be added

Fan, capacitor, inductor, varistor

Minimum order quantity

2000

Model

Rated voltage

No-load speed

Maximum efficiency point speed

Maximum efficiency

Stall torque

HRS-360P-4254

5.0 V

9,800 rpm

8,150 rpm

66.5%

26.17 mN·m

HRS-360P-31049

12.0 V

12,000 rpm

9,760 rpm

63.9%

36.26 mN·m

HRS-365P-3179

18.0 V

19,200 rpm

15,480 rpm

62.5%

43.01 mN·m

HRS-365P-2972

24.0 V

28,500 rpm

23,500 rpm

64.0%

39.10 mN·m



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
HRS-360P-4254 4.5 - 9.0 5.0V CONSTANT 9800 0.28 8150 1.13 45 4.41 3.76 66.5 5.3 267 26.17
HRS-360P-31049 6.0 - 12.0 12.0V CONSTANT 12000 0.2 9760 0.9 69 6.76 6.91 63.9 4 370 36.26
HRS-365P-3179 8.0 - 24.0 18.0V CONSTANT 19200 0.3 15480 1.2 85 8.33 13.5 62.5 5 438.8 43.01
HRS-365P-2972 12.0 - 30.0 24.0V CONSTANT 28500 0.32 23500 1.1 70 6.86 16.9 64 4.8 399 39.1

Please inquire with your sales representative for output, performance, and EMC solution.
