RS-385SL PMDC Motor for Glue Guns

The RS-390/395 series brushed permanent magnet DC motor features a voltage range of 0–36V and a no-load speed range of 4000–25000 RPM (for speeds below 4000 RPM, please contact us to equip it with a gearbox). Constructed with ferrite magnets, Class F enameled wire and a phenolic resin commutator, the motor delivers reliable high-speed operation and extended service life. Our motors comply with international standards including EMC, VDE, RoHS, REACH and FFU.
These motors are widely applied in fields such as power tools, air pumps, mixers, massage chairs, electric clothes dryers and printers.
HongYang is committed to providing one-stop solutions to meet customers' specific motor requirements. For custom specifications such as voltage, speed and torque, please feel free to contact us.

CONTACT US RS-385SL PMDC Motor for Glue Guns
  • RS-385SL PMDC Motor for Glue Guns
  • RS-385SL PMDC Motor for Glue Guns
  • RS-385SL PMDC Motor for Glue Guns

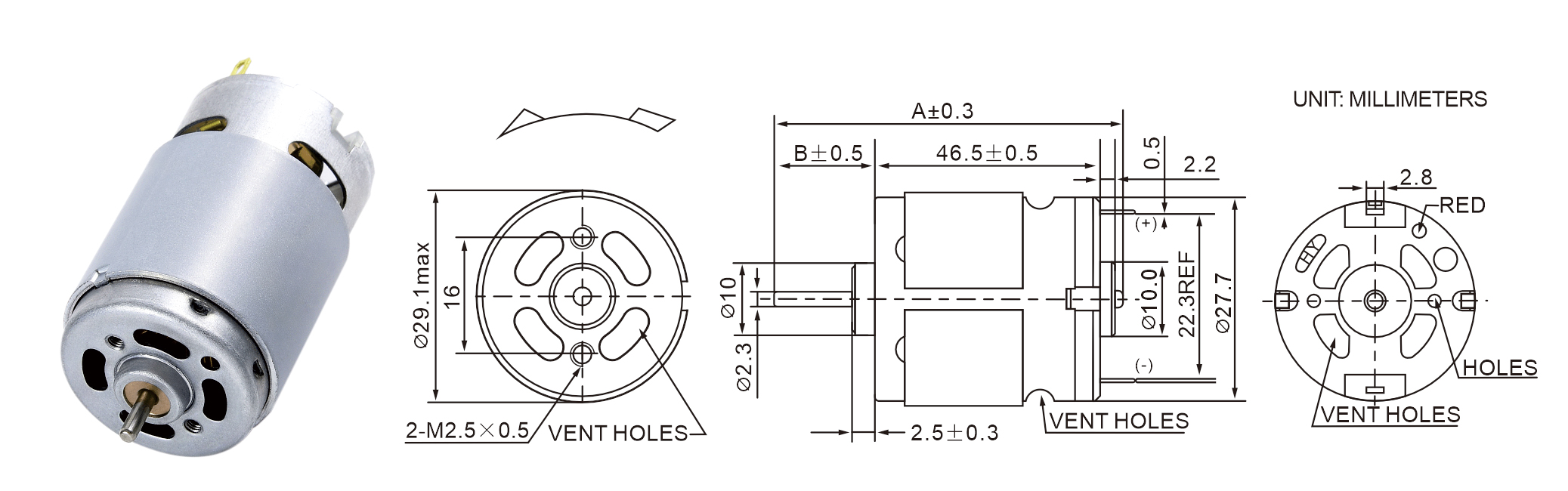

Specifications

Motor Length:

46.5mm(Excluding the Shaft)

Motor Diameter:

27.7mm(Add Magnet Shield Ring: 30mm Max)

Shaft Length:

Custom

Shaft Diameter:

2.3mm

Shaft Type:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Speed:

2000-30000RPM

Torque:

0-0.15N.m

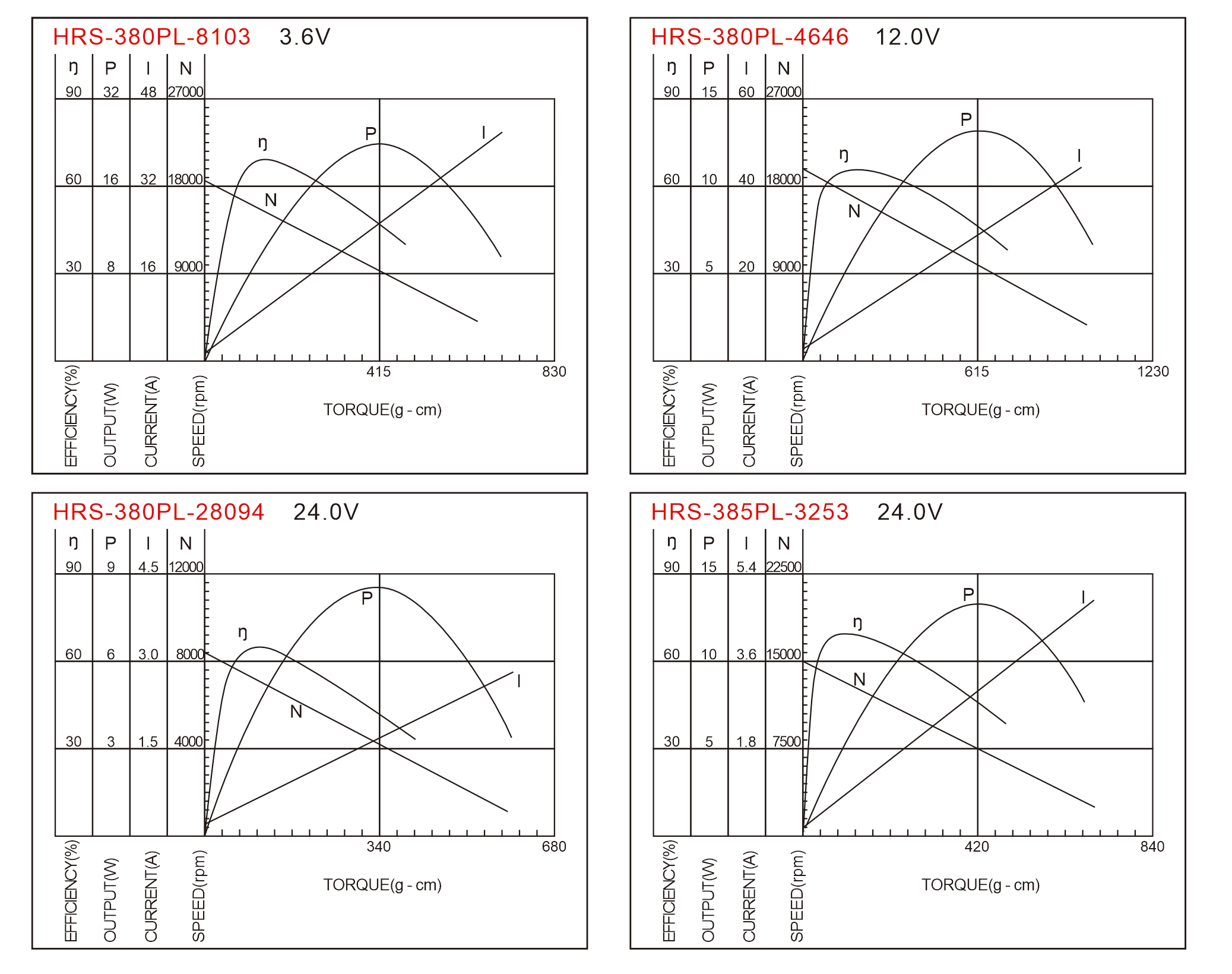

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
HRS-380PL-8103 2.0 - 6.0 3.6V CONSTANT 18800 1.6 15400 9.6 150 14.7 23.69 68.5 45.9 829.5 81.29
HRS-380PL-4646 6.0 - 12.0 12.0V CONSTANT 20000 0.53 17300 3.4 110 10.78 13.32 67.3 21.8 1259 123.38
HRS-385PL-28094 12.0 - 24.0 24.0V CONSTANT 9000 0.09 7600 0.52 105 10.29 8.18 65.6 2.9 675 66.15
HRS-385PL-3253 12.0 - 30.0 24.0V CONSTANT 15000 0.19 13200 0.8 80 7.84 8.12 67.6 5.3 835 81.83

Please inquire with your sales representative for output, performance, and EMC solution.
