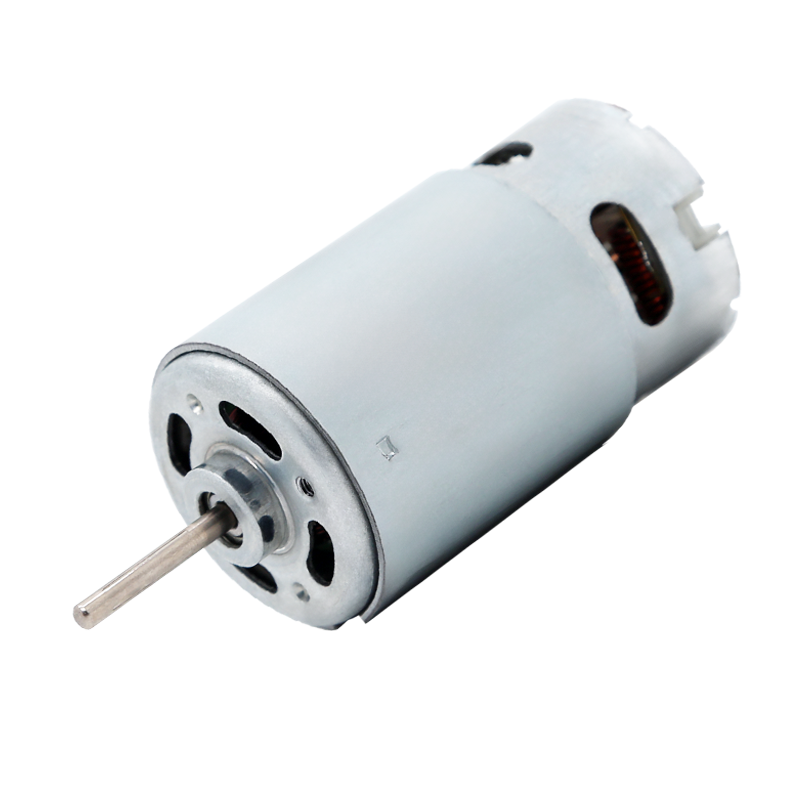

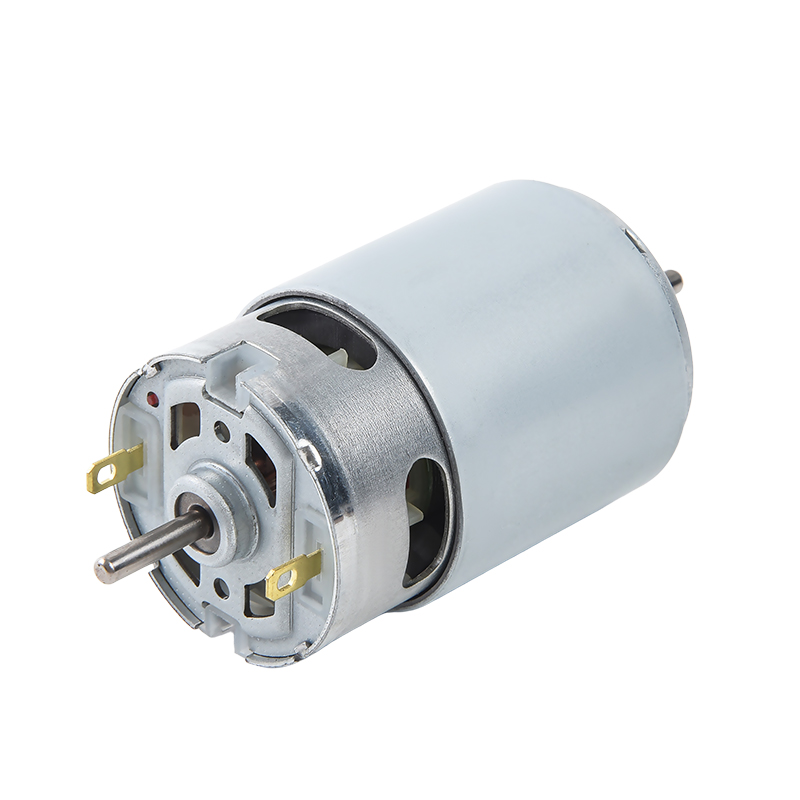

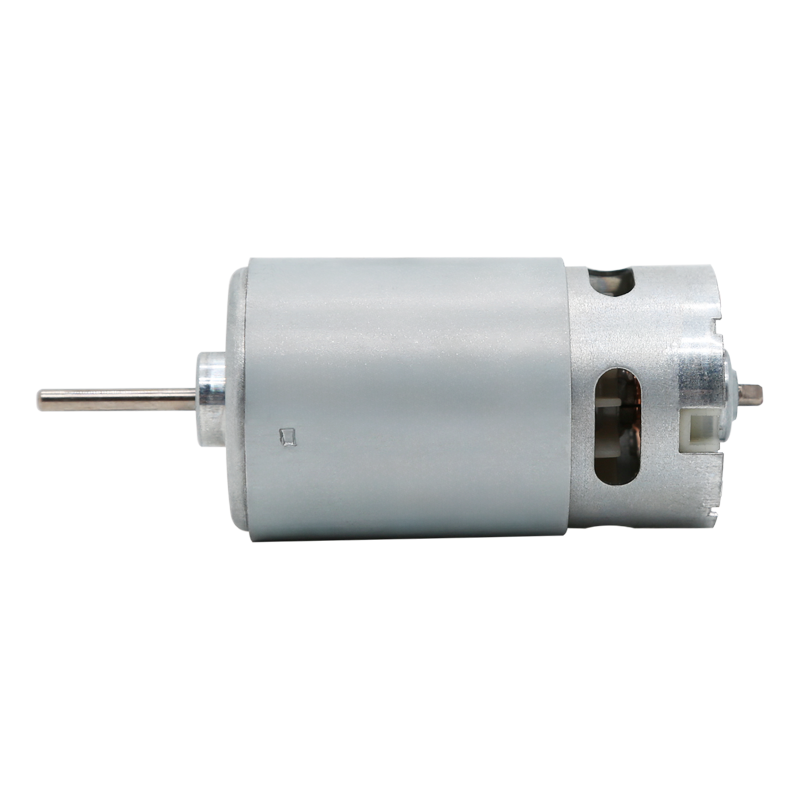

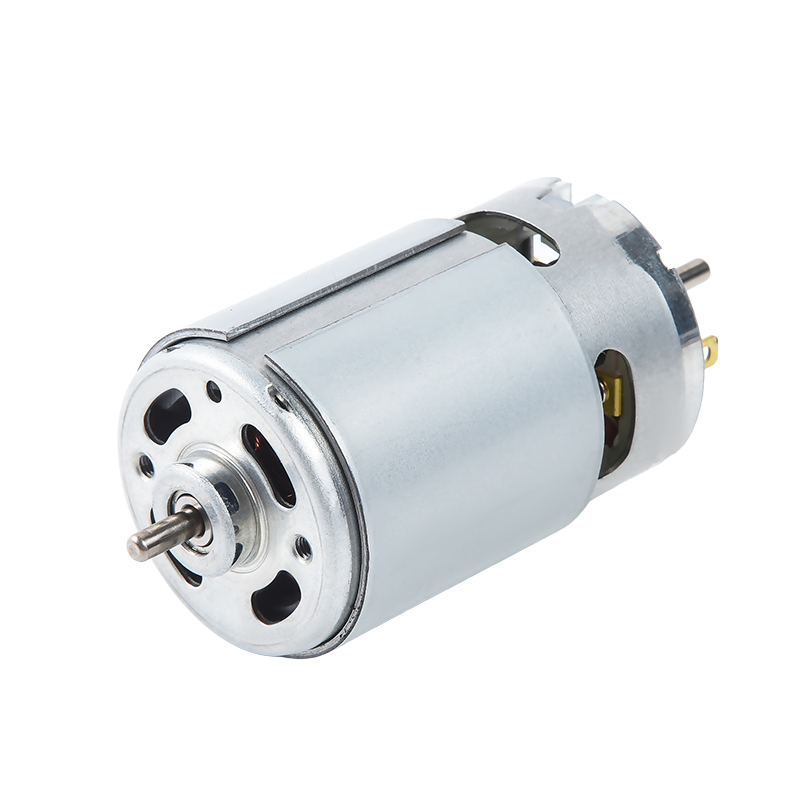

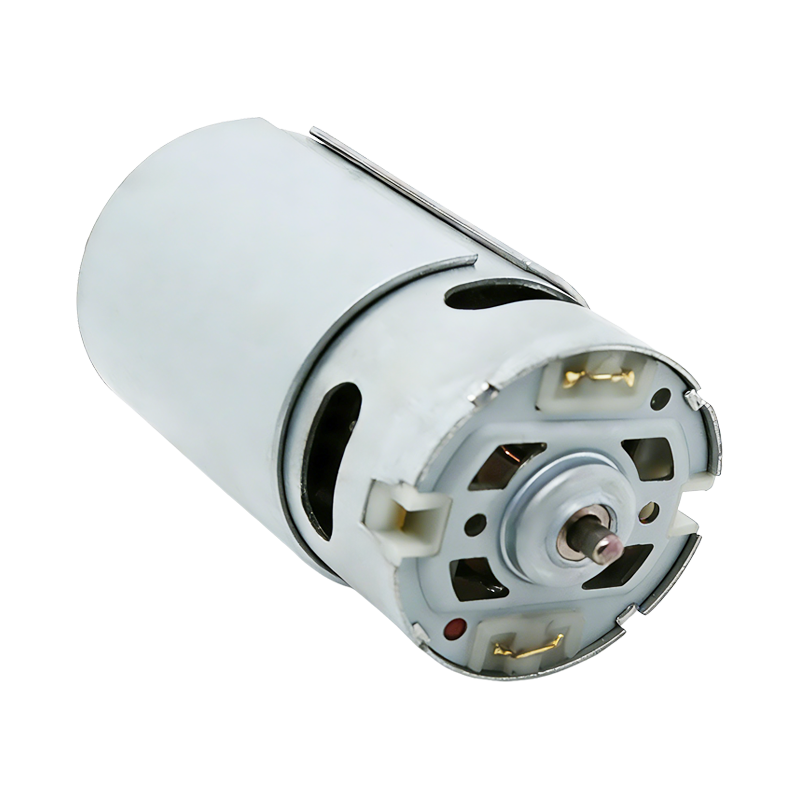

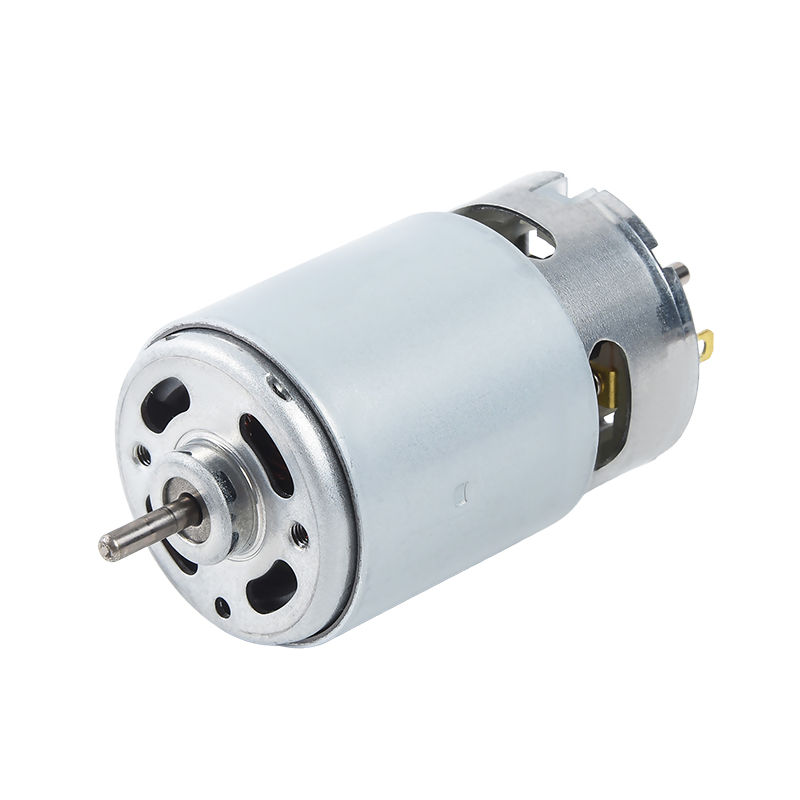

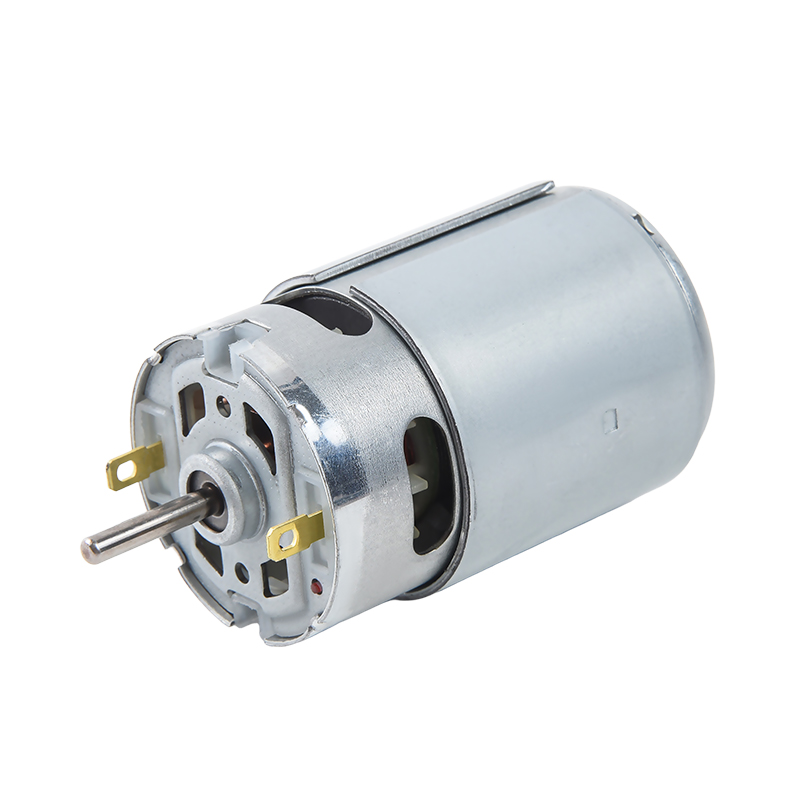

RS-550SL Low Noise Brush DC Motor for Paper Shredders

The RS-550SL/555SL is an extended version of the RS-550/555 brushed permanent magnet DC motor, featuring a body length of 65mm (excluding the shaft) and a diameter of 35.8mm (max. 38.5mm with the Magnet Shield Ring). Boasting stable performance, it comes with a high-strength carbon steel shaft that can be customized via machining. Constructed with pure precision copper windings, the motor boasts excellent heat resistance. It can be integrated with built-in capacitors and inductors, providing superior insulation performance and overvoltage protection to minimize equipment downtime and extend service life.
The RS-550SL/555SL motor is widely applied in fields such as automotive air pumps, power tools and paper shredders.
HongYang is committed to providing one-stop solutions for customers' various motor needs.

CONTACT US RS-550SL Low Noise Brush DC Motor for Paper Shredders
  • RS-550SL Low Noise Brush DC Motor for Paper Shredders
  • RS-550SL Low Noise Brush DC Motor for Paper Shredders
  • RS-550SL Low Noise Brush DC Motor for Paper Shredders
  • RS-550SL Low Noise Brush DC Motor for Paper Shredders
  • RS-550SL Low Noise Brush DC Motor for Paper Shredders

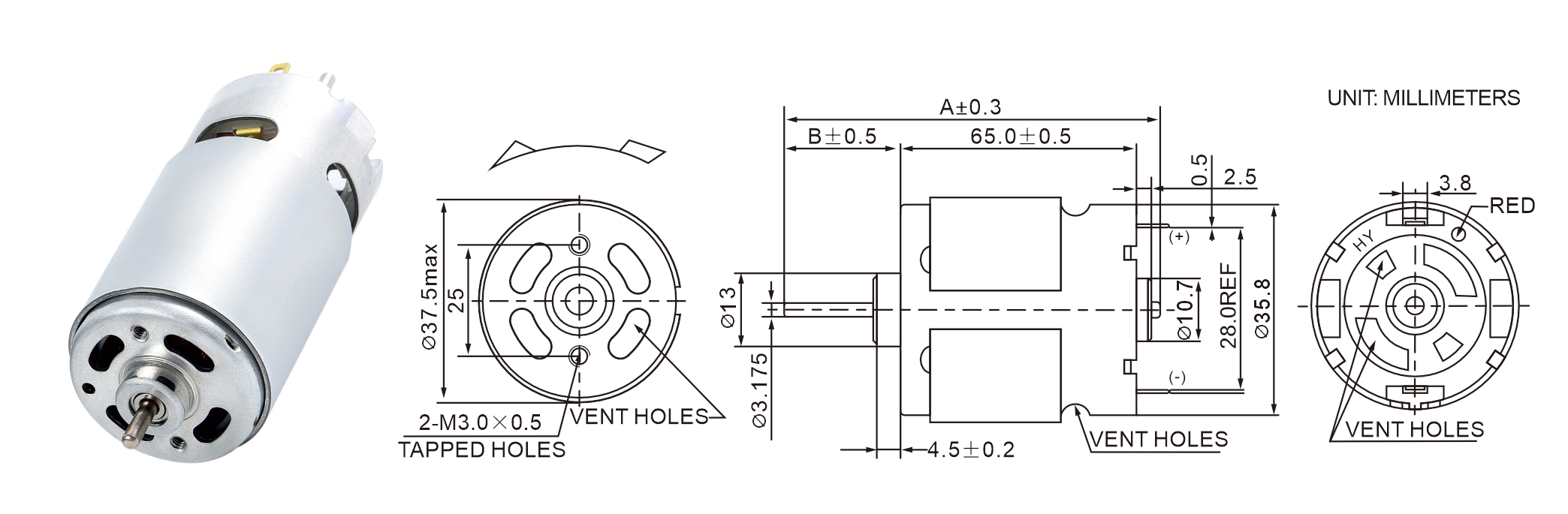

Specifications

Motor Length:

65mm(Excluding the Shaft)

Motor Diameter:

35.8mm(Add Magnet Shield Ring: 38.5mm Max)

Shaft Length:

Custom

Shaft Diameter:

3.175mm

Shaft Type:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Speed:

2000-30000RPM

Torque:

200-4000g.cm
