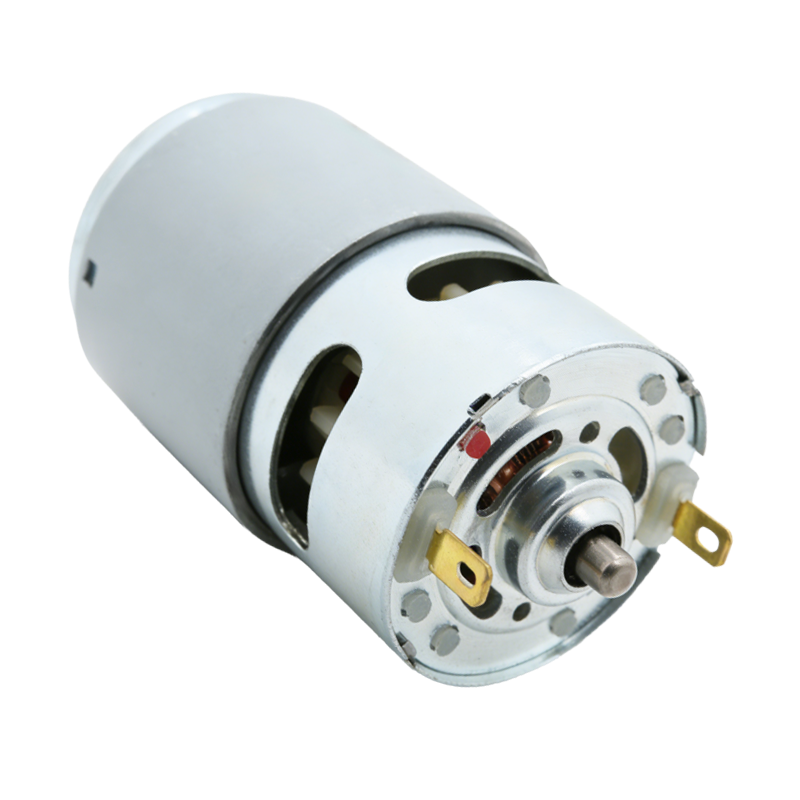

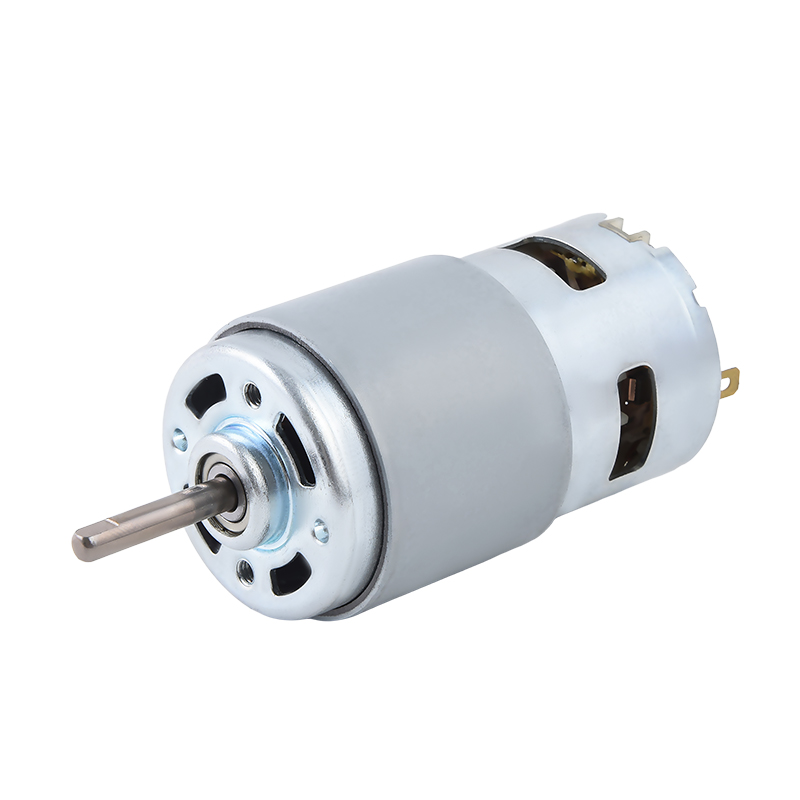

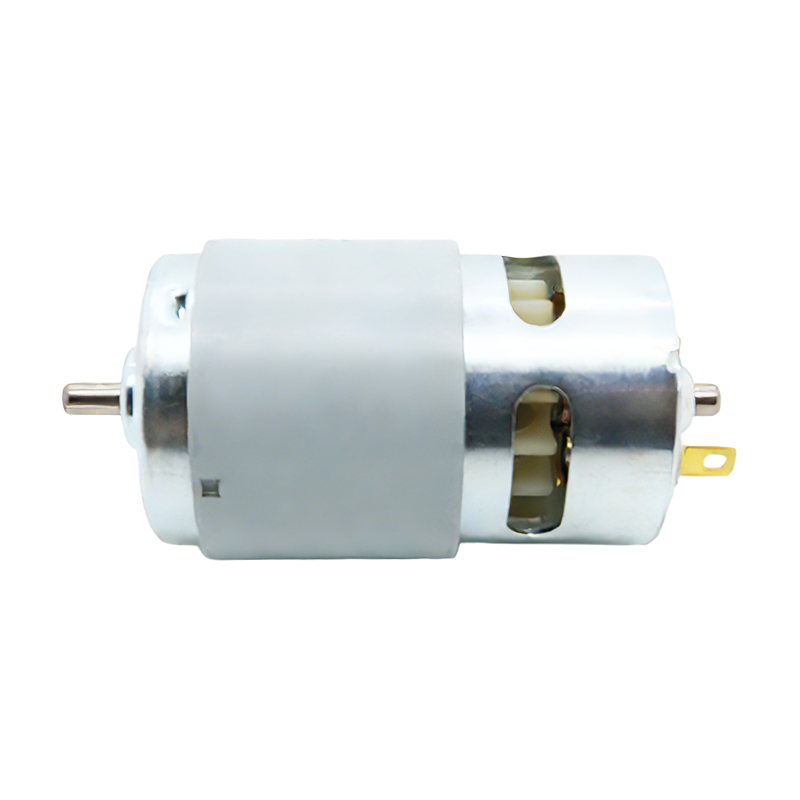

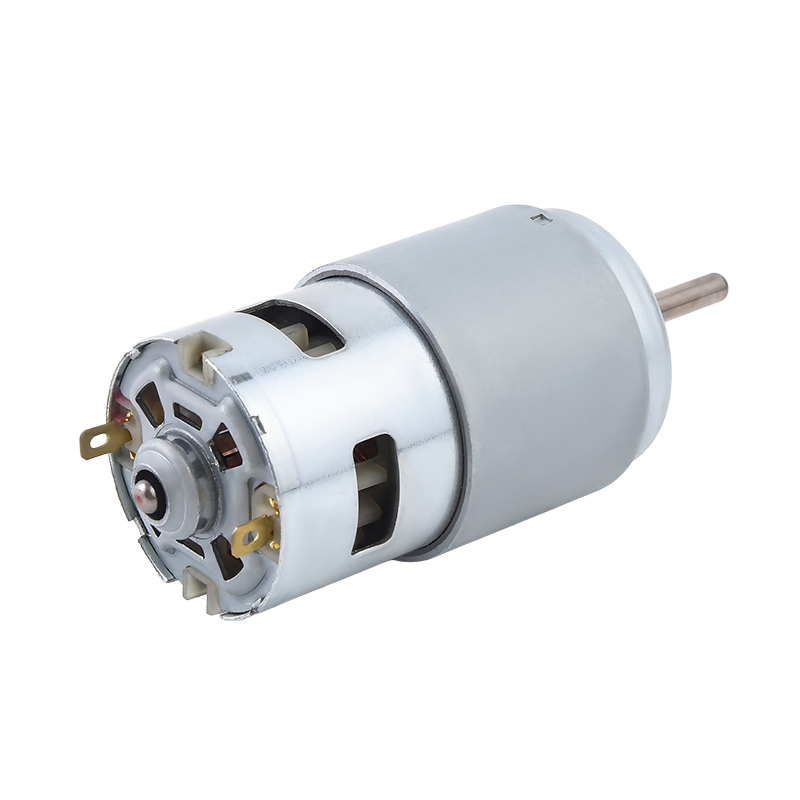

RS-785SL Brush DC Motor for Joint Cleaners

The RS-785SL, also known as the RS-795, is a brushed permanent magnet DC motor with a diameter of 42mm and a length of 75.5mm. It boasts strong output, high efficiency, long service life and low noise levels. Featuring a galvanized steel housing, high-performance magnetic tiles and internal support springs, it delivers excellent stability and corrosion resistance, ensuring reliable operation even in complex environments.
HongYang’s RS-785SL (RS-795) complies with EMC, VDE, RoHS, REACH and FFU standards, and is widely used in floor scrubbers, brush cutters, lawn mowers, joint cleaners and pole saws.

CONTACT US RS-785SL Brush DC Motor for Joint Cleaners
  • RS-785SL Brush DC Motor for Joint Cleaners
  • RS-785SL Brush DC Motor for Joint Cleaners
  • RS-785SL Brush DC Motor for Joint Cleaners

Specifications

Motor Length:

75.5mm(Excluding the Shaft)

Motor Diameter:

42mm(Add Magnet Shield Ring: 46.5mm Max)

Shaft Length:

Custom

Shaft Diameter:

5mm

Shaft Type:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Speed:

2000-30000RPM

Torque:

0-1N.m



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
HRS-775SL-6212 8.0 - 15.0 12.0V CONSTANT 15000 1.7 13308 13.4 846 82.9 115 71.9 105 7500 735.3
HRS-775SL-6213F 16.0 - 20.0 18.0V CONSTANT 19500 2.14 17272 17.2 1260 123.5 223.2 74.4 133.7 11000 1078.4
HRS-775SL-8014F 17.0 - 23.0 20.0V CONSTANT 20000 2.1 17660 16.5 1300 127.5 235 73.5 121 11112 1089.4
HRS-775SL-6212F 17.0 - 23.0 20.0V CONSTANT 24000 3 21114 21.9 1503 147.4 325 74.2 161 12500 1225.5

Please inquire with your sales representative for output, performance, and EMC solution.
