RS-540 Long Lifespan Brush DC Motor for Vacuum cleaners

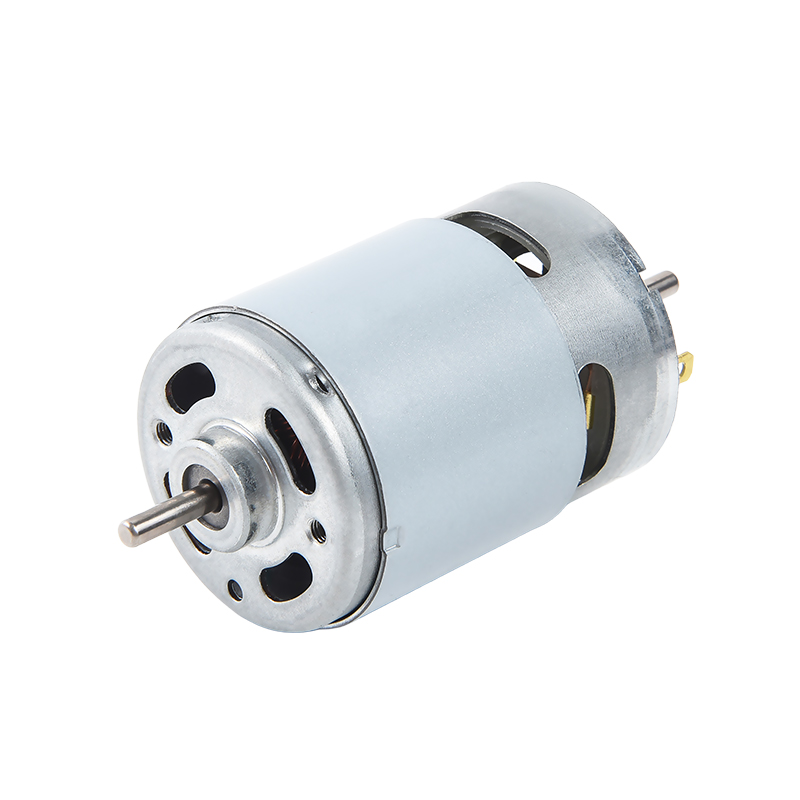

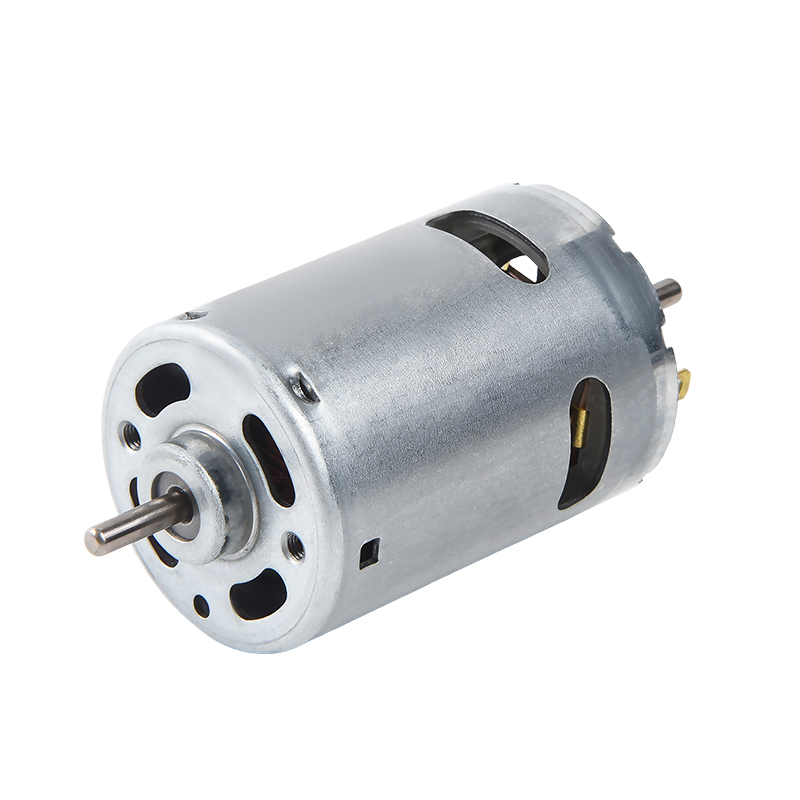

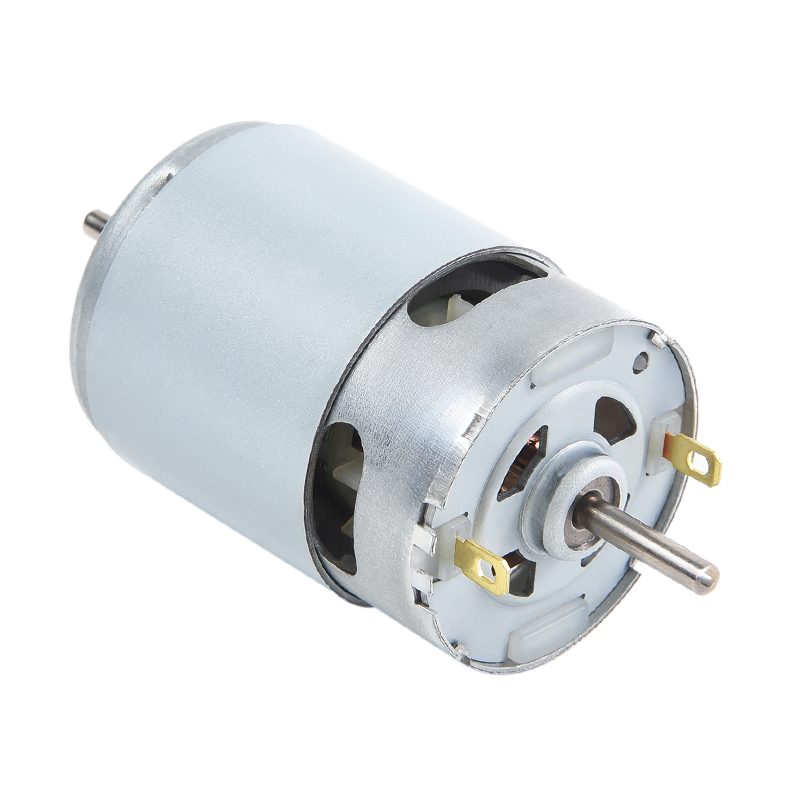

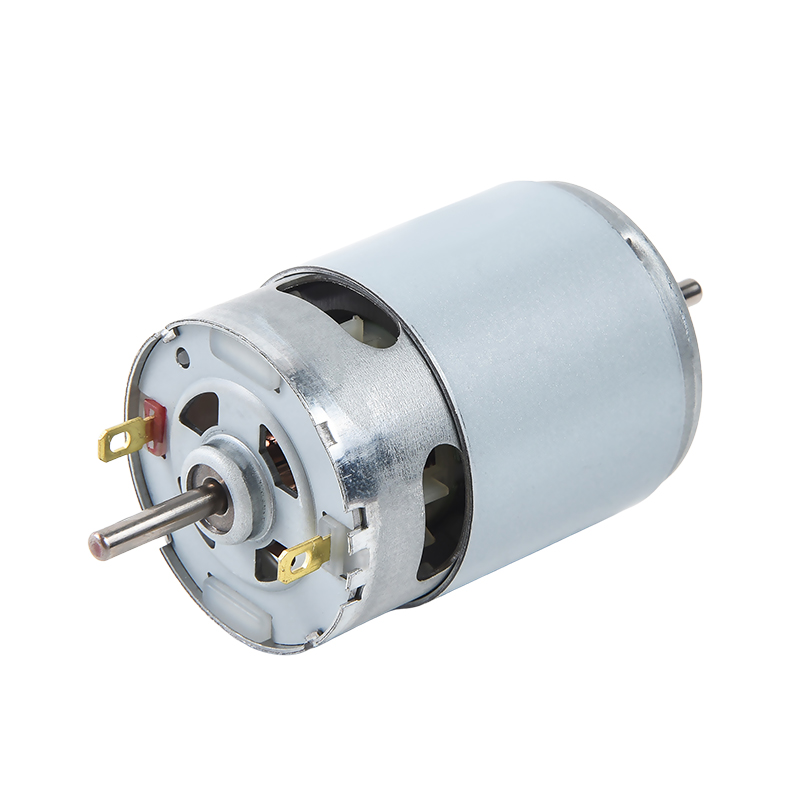

The RS-540/545 brushed permanent magnet DC motor features high-quality magnetic tiles and a precision rotor. Its precision manufacturing and strict quality control ensure excellent durability and reliable performance. With a length of 50mm and a diameter of 35.8mm (38.5mm max with Magnet Shield Ring), this compact motor maintains strong torque output even under low voltage and current conditions.
HongYang motors comply with international standards including EMC, VDE, RoHS, REACH and FFU.
The RS-540 motor is widely applied in fields such as automotive coffee makers, air pumps, car antennas, fans, vacuum cleaners, power tools and vibration massagers and more.

CONTACT US RS-540 Long Lifespan Brush DC Motor for Vacuum cleaners
  • RS-540 Long Lifespan Brush DC Motor for Vacuum cleaners
  • RS-540 Long Lifespan Brush DC Motor for Vacuum cleaners
  • RS-540 Long Lifespan Brush DC Motor for Vacuum cleaners
  • RS-540 Long Lifespan Brush DC Motor for Vacuum cleaners
  • RS-540 Long Lifespan Brush DC Motor for Vacuum cleaners

Specifications

Motor Length:

50mm(Excluding the Shaft)

Motor Diameter:

35.8mm(Add Magnet Shield Ring: 38.5mm Max)

Shaft Length:

Custom

Shaft Diameter:

3.175mm

Shaft Type:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Speed:

2000-30000RPM

Torque:

0-0.04N.m
