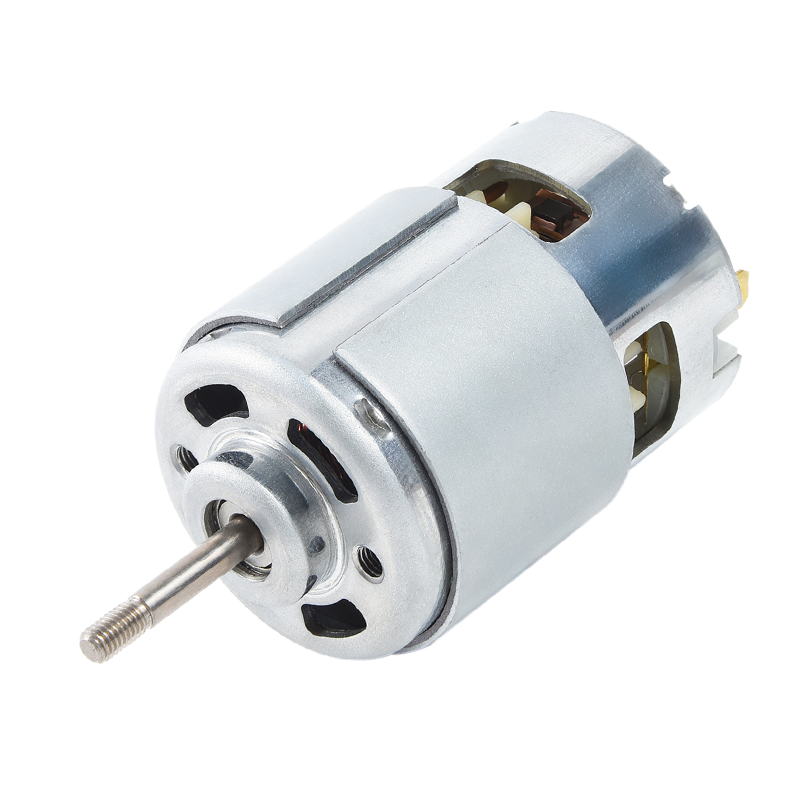

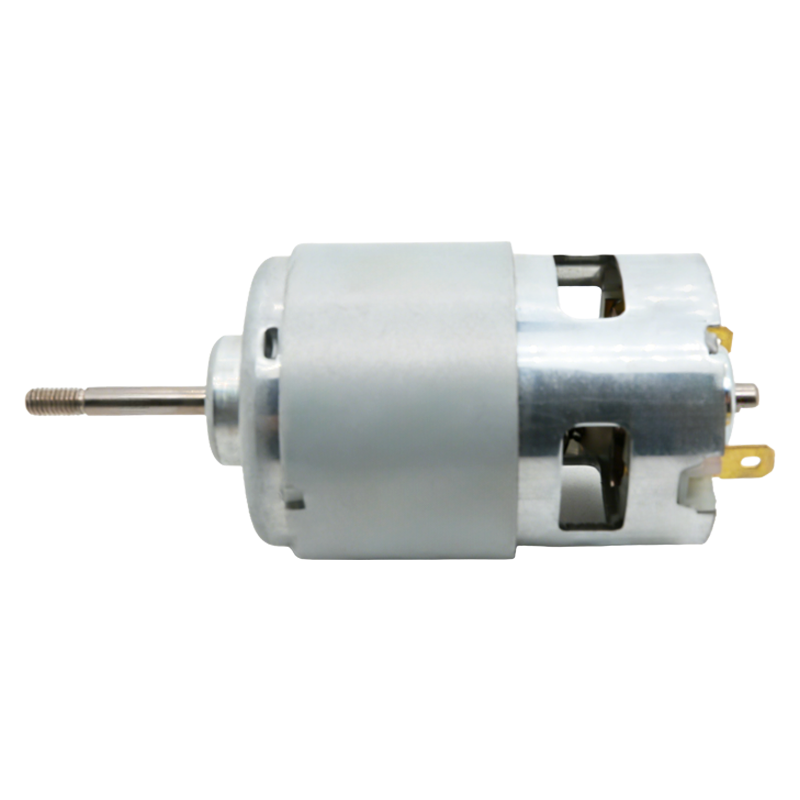

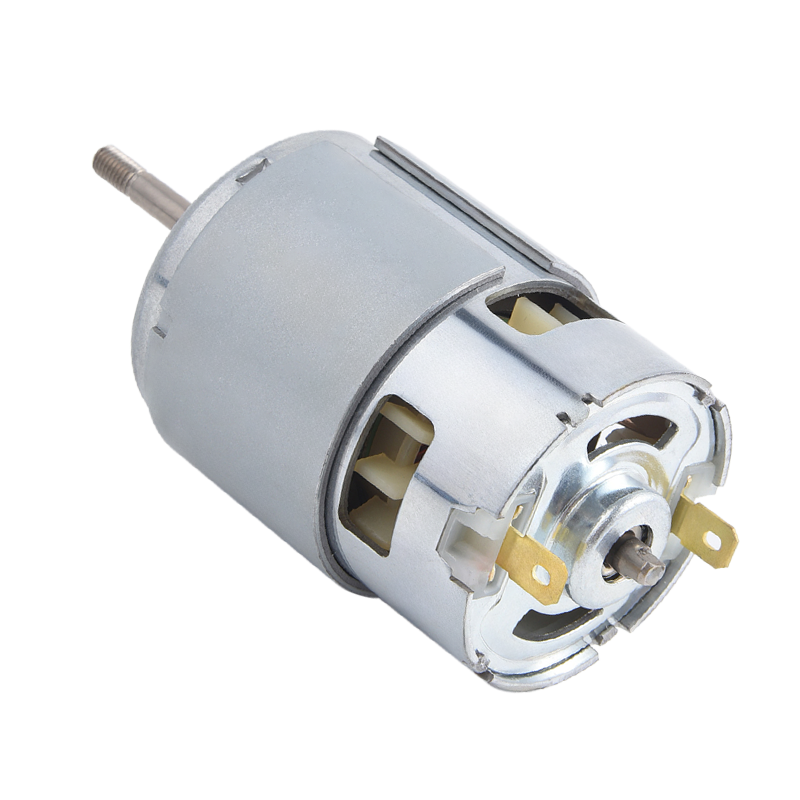

RS-885 Brush DC Motor for Blenders

The RS-885 is a brushed permanent magnet DC motor with a length of 67.5mm (excluding the shaft) and a diameter of 48mm (max. 52.5mm with the Magnet Shield Ring). It supports a wide voltage range of 0–36V DC and delivers a maximum speed of 25000 RPM, ideal for high-speed application requirements. Featuring a brushed design with excellent vibration and heat resistance, it ensures long-term stable operation even in complex environments.
Compliant with EMC, VDE, RoHS, REACH and FFU standards, the HongYang RS-885 is widely used in angle grinders, electric circular saws, electric impact wrenches, electric sheep shears, paddle mixers and other heavy-duty power tools.

CONTACT US RS-885 Brush DC Motor for Blenders
  • RS-885 Brush DC Motor for Blenders
  • RS-885 Brush DC Motor for Blenders
  • RS-885 Brush DC Motor for Blenders

Specifications

Motor Length:

67.5mm(Excluding the Shaft)

Motor Diameter:

48mm(Add Magnet Shield Ring: 52.5mm Max)

Shaft Length:

Custom

Shaft Diameter:

5mm

Shaft Type:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Speed:

2000-30000RPM

Torque:

0-1N.m

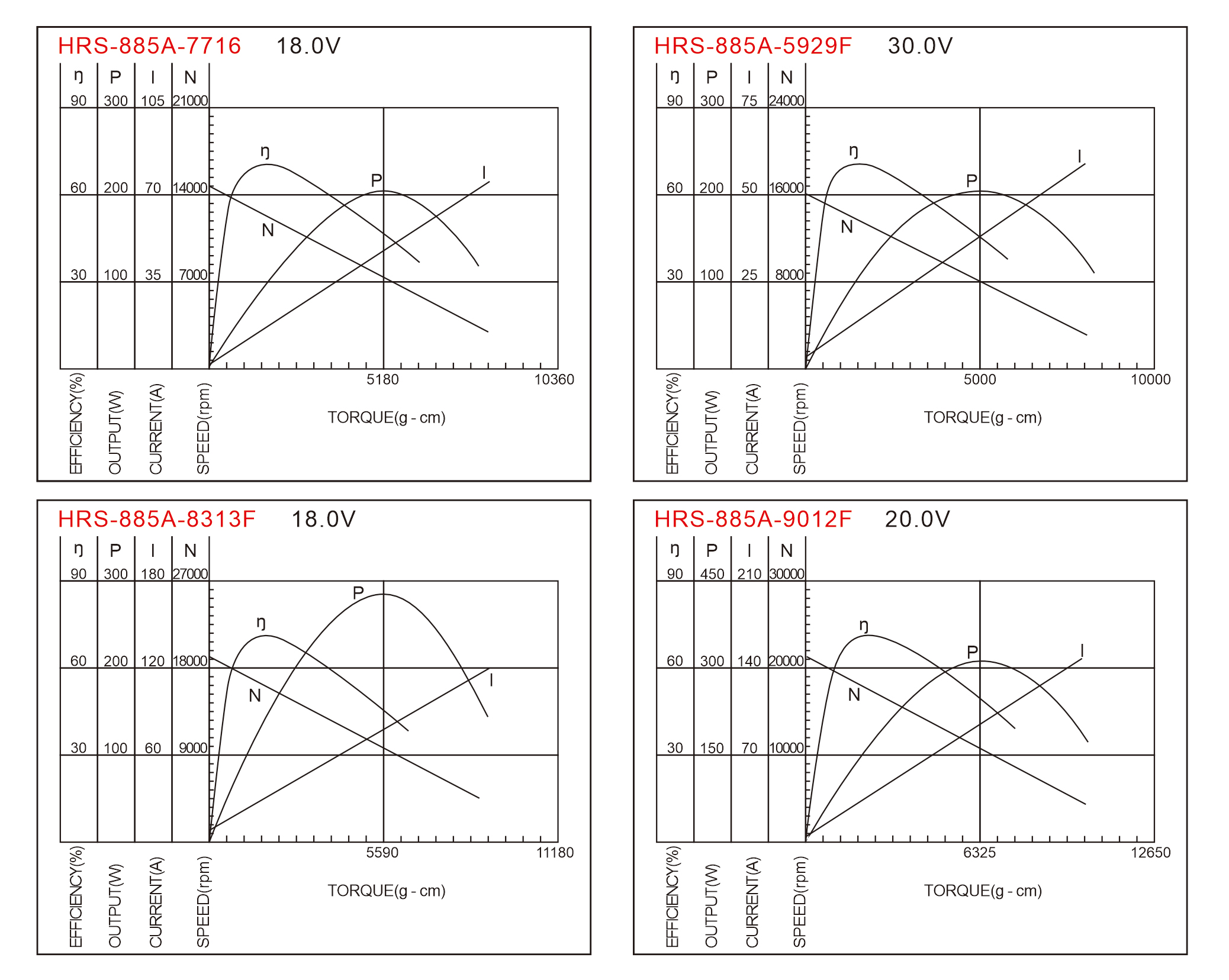

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
HRS-885A-7716 16.0 - 20.0 18.0V CONSTANT 14500 2.71 12540 14.4 1400 137.3 180 72.5 75 10358 1015.5
HRS-885A-5929F 26.0 - 34.0 30.0V CONSTANT 16000 1.5 13680 9.53 1450 142.2 203 71.2 55.7 10000 980.4
HRS-885A-8313F 16.0 - 20.0 18.0V CONSTANT 19000 4.2 16010 22.5 1759 172.5 289 71.3 120 11176 1095.7
HRS-885A-9012F 17.0 - 23.0 20.0V CONSTANT 21500 3.71 18681 21.9 1658 162.5 318 72.6 145 12647 1239.9

Please inquire with your sales representative for output, performance, and EMC solution.



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
HRS-885S-6937F 6.0 - 12.0 12.0V CONSTANT 19000 3 16500 21 980 96.04 165.8 65.8 147.4 7448 729.9
HRS-885S-8511F 6.0 - 15.0 14.4V CONSTANT 20200 2.8 17800 19 1000 98 182.6 63.1 139.2 8417 824.9
HRS-885S-7015F 8.0 - 15.0 18.0V CONSTANT 22500 3.2 19500 19.8 1150 112.7 230 65 124.5 8625 845.3
HRS-885S-6813F 12.0 - 30.0 30.0V CONSTANT 16400 1.5 13600 9.8 1370 134.2 191.1 65 50.12 8025 786.5

Please inquire with your sales representative for output, performance, and EMC solution.
