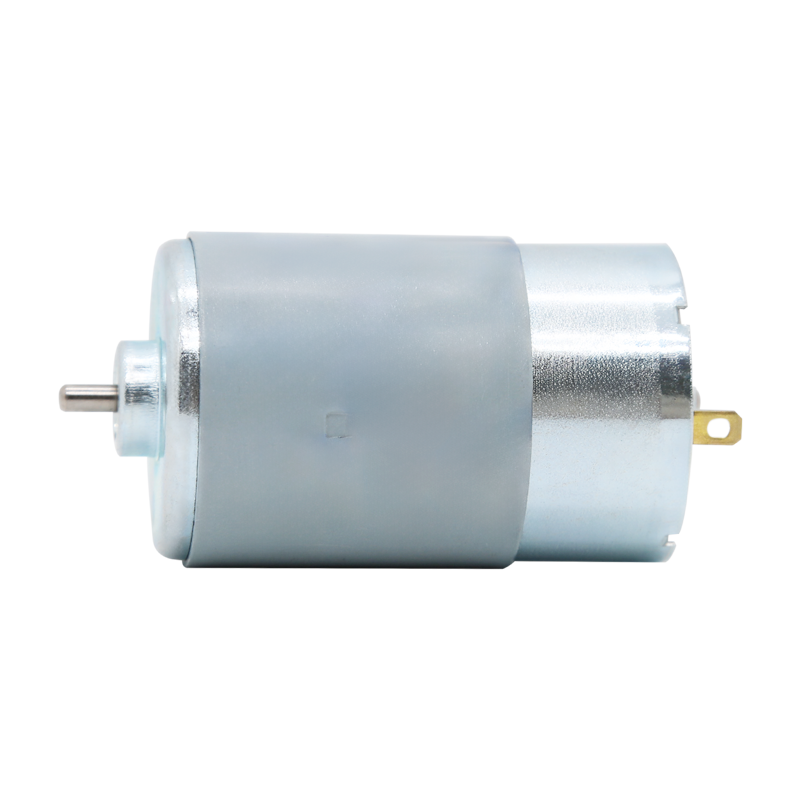

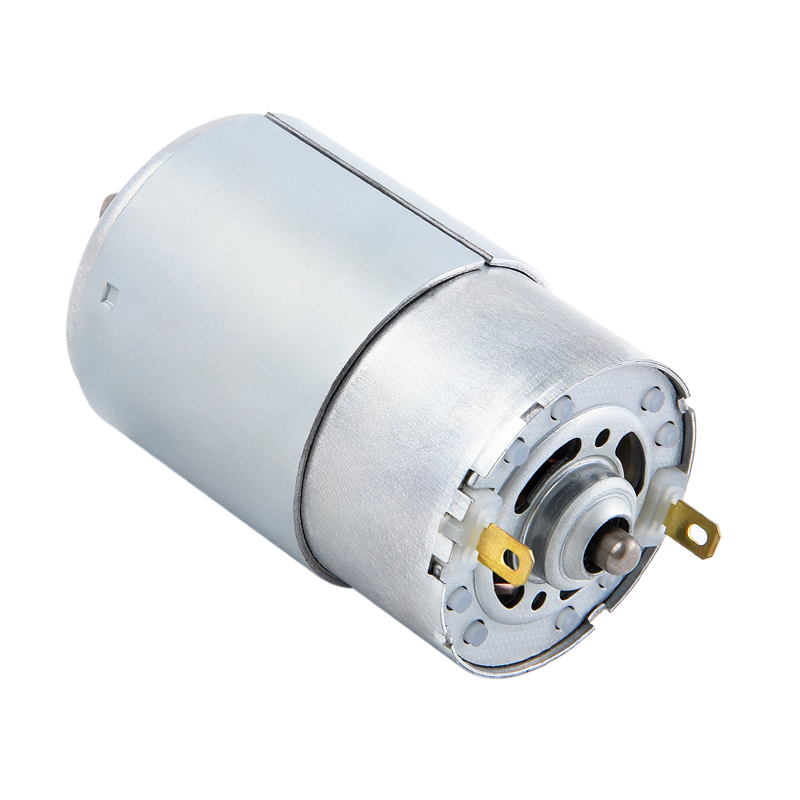

RS-555 DC Motor for electric curtains

The RS555 brushed DC motor is  designed for electric curtain systems, smart home automation equipment. Featuring stable torque output, low operating noise and smooth speed performance, this motor provides reliable and quiet operation for automatic curtain opening and closing systems.
Constructed with high-quality pure copper windings and precision-balanced internal components, the 555 motor ensures long service life, stable current performance and efficient power transmission during continuous operation. Its compact structure allows easy integration into intelligent curtain rails and automated household systems where installation space is limited.
Compared with standard small DC motors, the 555 motor delivers stronger starting torque and smoother low-speed performance, making it especially suitable for electric curtain tracks requiring soft start and stable movement.
555 DC motor is widely used in:Air Pump, Water Pump, Automatic Curtain, Sweeping Robot, Triangle Sander, Grout Cleaner

CONTACT US RS-555 DC Motor for electric curtains
  • RS-555 DC Motor for electric curtains
  • RS-555 DC Motor for electric curtains
  • RS-555 DC Motor for electric curtains
  • RS-555 DC Motor for electric curtains
  • RS-555 DC Motor for electric curtains
  • RS-555 DC Motor for electric curtains

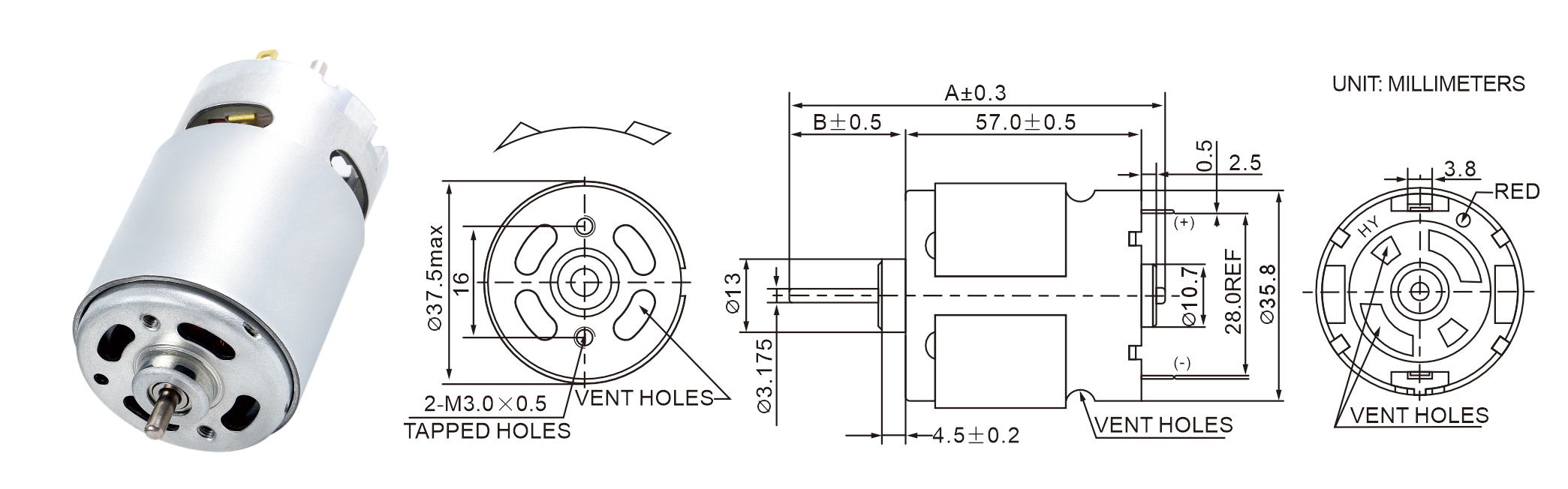

Specifications

Motor Length:

57mm(Excluding the Shaft)

Motor Diameter:

35.8mm(Add Magnet Shield Ring: 38.5mm Max)

Shaft Length:

Custom

Shaft Diameter:

3.175mm

Shaft Type:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Speed:

2000-30000RPM

Torque:

0-0.04N.m

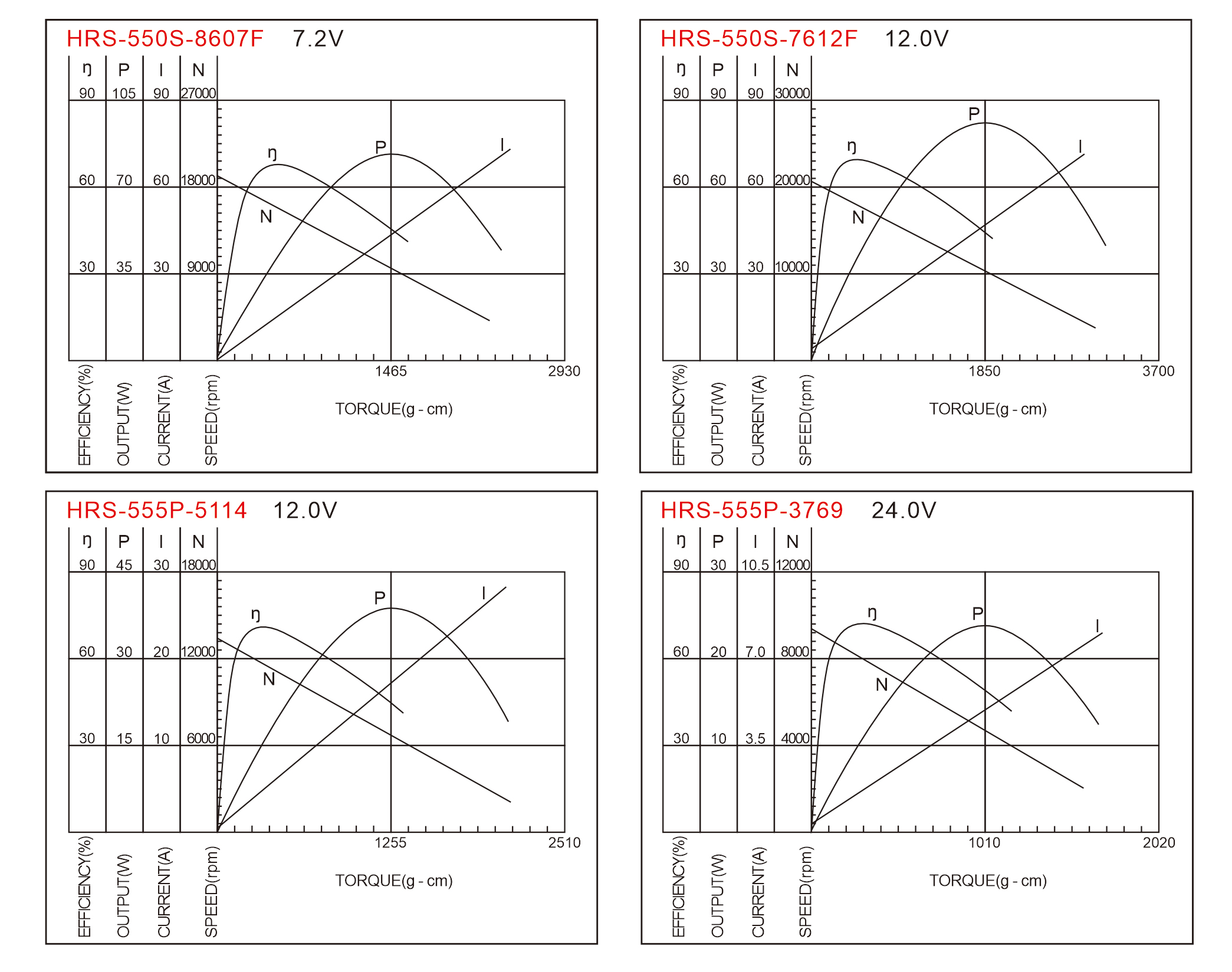

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
HRS-550S-8607F 3.0 - 9.0 7.2V CONSTANT 19000 1.9 15750 16.5 500 49 80.76 68 87.3 2924 286.6
HRS-550S-7612F 9.0 - 15.0 12.0V CONSTANT 20500 1.4 18000 10 450 44.1 83.07 69.2 72 3690 361.6
HRS-555P-5114 12.0 - 24.0 12.0V CONSTANT 13100 0.62 11400 4.2 325 31.85 38 75.4 28.3 2505 245.5
HRS-555P-3769 18.0 - 36.0 24.0V CONSTANT 9400 0.25 8000 1.4 300 29.4 24.61 73.2 8 2014 197.4

Please inquire with your sales representative for output, performance, and EMC solution.
