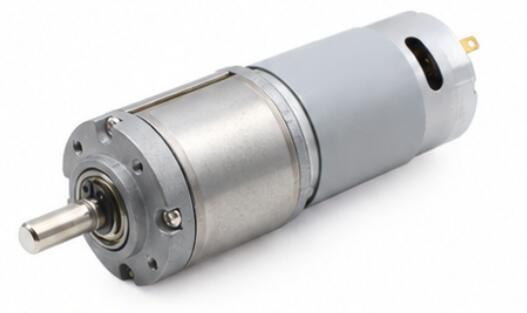

32JX395 32mm Diameter Planetary Gear Motor

1. Precision planetary gear drive: the planetary gear structure delivers high transmission efficiency, strong load capacity, and smooth, stable operation, with backlash ≤2°, packing big power into a compact 32mm body.
2. Ultra wide ratio range at ultra low speed: reduction ratios from 3.7:1 to 3736:1 across 1 to 5 gear stages, with output speeds from 2027 down to 1.5 RPM, easily matching common low speed options such as 100 RPM and 150 RPM.
3. High torque for heavy load use: load torque up to 6.0 N·m (about 61 kgf·cm), offering big torque in a small package for demanding applications.
4. Low power consumption with wide voltage: no load current only 76 mA, rated 24V with a 6 to 36V operating range, saving energy and fitting various power systems.
5. Premium materials with optional encoder: sintered steel gears, ball bearings, and a zinc alloy housing, with max shaft pressure ≤13 kgf, wear resistant and long lasting; an optional 5V 12PPR dual channel encoder provides accurate speed and position feedback.

CONTACT US 32JX395 32mm Diameter Planetary Gear Motor
  • 32JX395 32mm Diameter Planetary Gear Motor
  • 32JX395 32mm Diameter Planetary Gear Motor
  • 32JX395 32mm Diameter Planetary Gear Motor

Specifications

 32JX395 Housing material Zinc alloy Encoder Optional

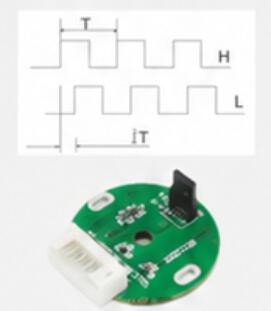

Model TJX32RM 32JX395-1
A-B 2 channels
39.5 Encoder-5V 12PPR
Bearing Ball bearing
Gear Modulus 0.5M
Commutator Brushed
Gear material Sintered steel
Max pressure force on shaft ≤13kgf
Back lash ≤2°
Brake available No
Gear construction Planetary gear

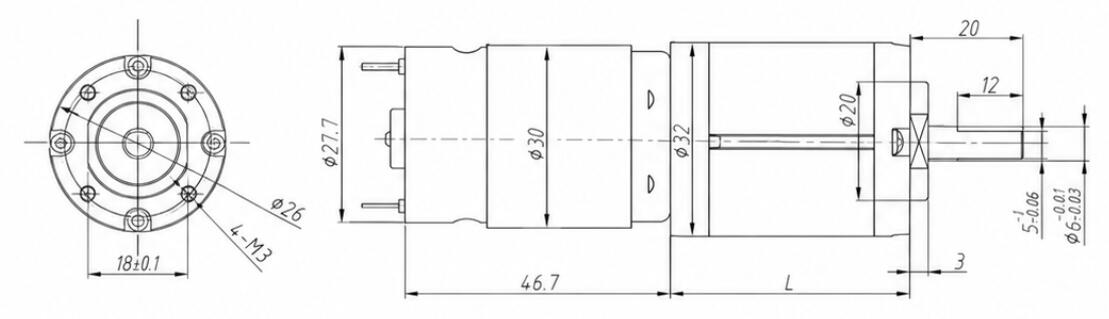

Dimensions(mm)
32JX395-2

Technical Data

DC MOTOR SPEED
(RPM)		 Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Dia L Operating Range
(Min-Max V)		 Rated Voltage
(V)		 Current
(mA)		 Speed
(RPM)		 Current
(mA)		 Torque
(N.m)		 Speed
(RPM)
7500 5.2 1 32 21.4 TJX32RM5.2i-24V-1442.3R 6 36 24 76 1442.3 320 0.04 1153.8
7500 13.7 2 32 27.7 TJX32RM13.7i-24V-547.4R 6 36 24 76 547.4 320 0.09 438
7500 19.2 2 32 27.7 TJX32RM19.2i-24V-390.6R 6 36 24 76 390.6 320 0.12 312.5
7500 26.9 2 32 27.7 TJX32RM26.9i-24V-278.8R 6 36 24 76 278.8 320 0.17 223
7500 51 3 32 34 TJX32RM51i-24V-147.1R 6 36 24 76 147.1 320 0.3 117.6
7500 71 3 32 34 TJX32RM71i-24V-105.6R 6 36 24 76 105.6 320 0.41 84.5
7500 100 3 32 34 TJX32RM100i-24V-75R 6 36 24 76 75 320 0.58 60
7500 139 3 32 34 TJX32RM139i-24V-54R 6 36 24 76 54 320 0.81 31.7
7500 189 4 32 40.4 TJX32RM189i-24V-39.7R 6 36 24 76 39.7 320 0.99 22.7
7500 264 4 32 40.4 TJX32RM264i-24V-28.4R 6 36 24 76 20.3 320 1.92 16.3
7500 369 4 32 40.4 TJX32RM369i-24V-20.3R 6 36 24 76 14.6 320 2.67 11.7
7500 721 4 32 40.4 TJX32RM512i-24V-14.6R 6 36 24 76 10.4 320 3.76 8.3
7500 699 5 32 46.7 TJX32RM699i-24V-9.7R 6 36 24 76 9.7 650 3.28 7.8
7500 977 5 32 46.7 TJX32RM977i-24V-7R 6 36 24 76 7.7 650 4.58 6.1
7500 1367 5 32 46.7 TJX32RM1367i-24V-5.8R 6 36 24 76 5 650 6 4.4
7500 1911 5 32 46.7 TJX32RM1911i-24V-3.6R 6 36 24 76 3.6 650 6 3.1
7500 2672 5 32 46.7 TJX32RM2672i-24V-2.8R 6 36 24 76 2.5 650 6 2.2
7500 3736 5 32 46.7 TJX32RM3736i-24V-2R 6 36 24 76 2 650 6 1.5

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
