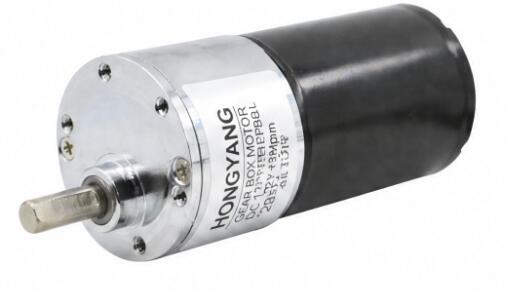

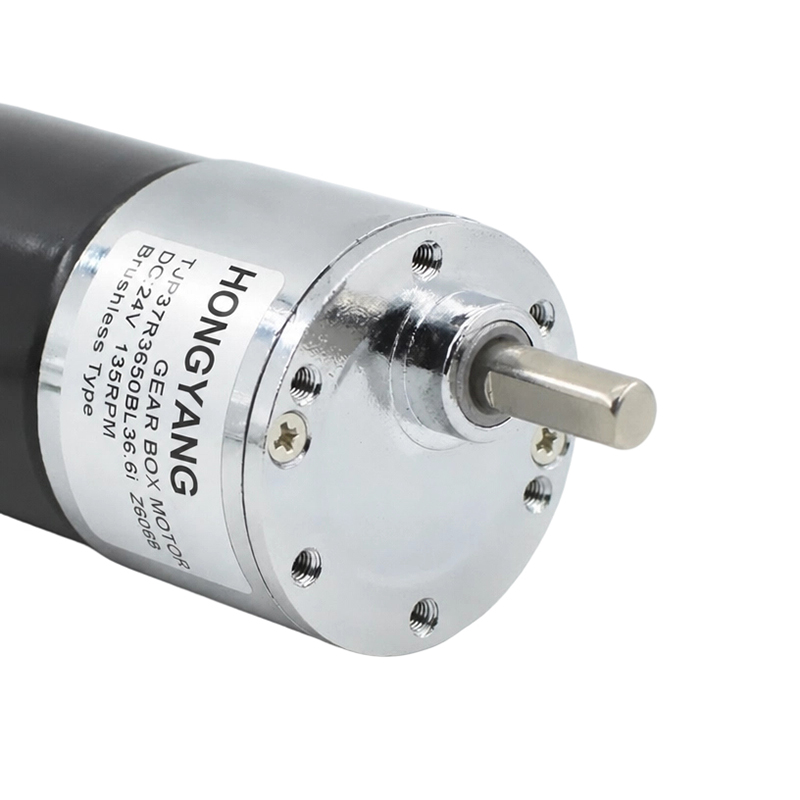

37R3650BL 37mm Gear Motor

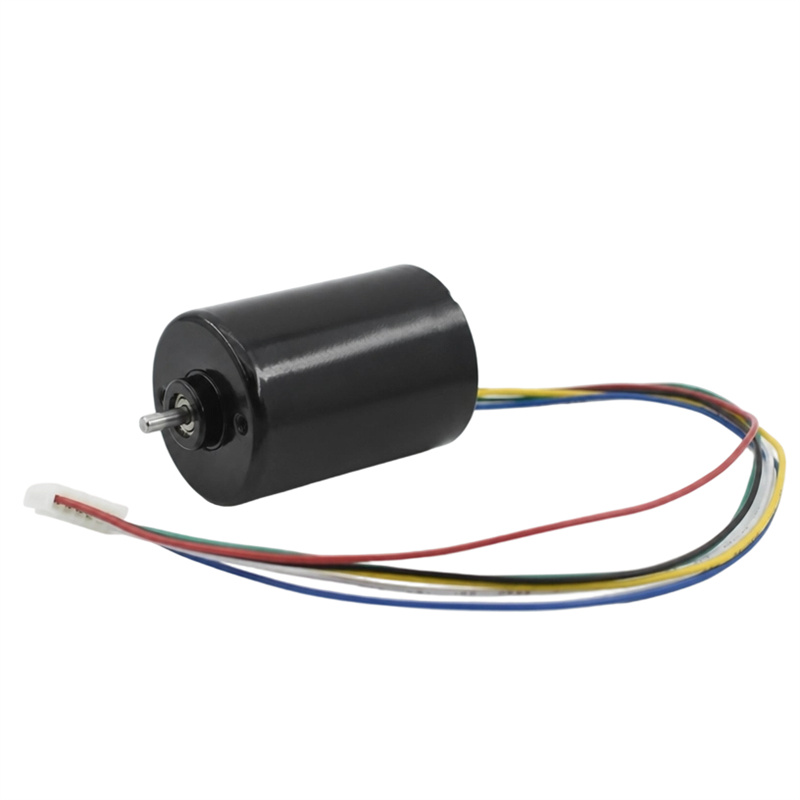

1. 3650 brushless dc motor supports 12V and 24V power supply. It comes with integrated driver board and hall sensor. PWM speed control and forward reverse rotation are available for easy operation.
2. Brushless structure brings low noise performance and extended service life. It can work continuously for long hours. Less mechanical wear compared with brushed dc motor for lower failure rate.
3. Stable output torque and multiple speed options. Widely applied for water pumps fans intelligent robots electric valves massage machines and other automation devices.
4. Motor body measures 36mm diameter and 50mm length. Overall total length equals 50mm plus gearbox length L which varies with different gear ratios. Multiple shaft diameter and shaft type options are offered. Sample and parameter customization services are supported.
5. Source factory direct supply. Technical drawings can be provided. Small batch orders are accepted. Voltage rotation speed and output shaft parameters can be adjusted according to customer requirements.

CONTACT US 37R3650BL 37mm Gear Motor
  • 37R3650BL 37mm Gear Motor
  • 37R3650BL 37mm Gear Motor

Specifications

37R3650BL Housing material Zinc alloy BLDG Wire Connections
Model TJP37R3650BL Red Motor +
Bearing Oil bearing Black Motor -
Gear Modulus 0.5M-0.7M White CW/CCW
Commutator Brushless Blue PWM
Gear material 40Cr steel Green Brake
Max pressure force on shaft ≤10kgf Yellow FG-6PPR
Back lash ≤2° 37R3650BL-1
Brake available Yes
Gear construction Spur gear Connector XHP2.5-6P

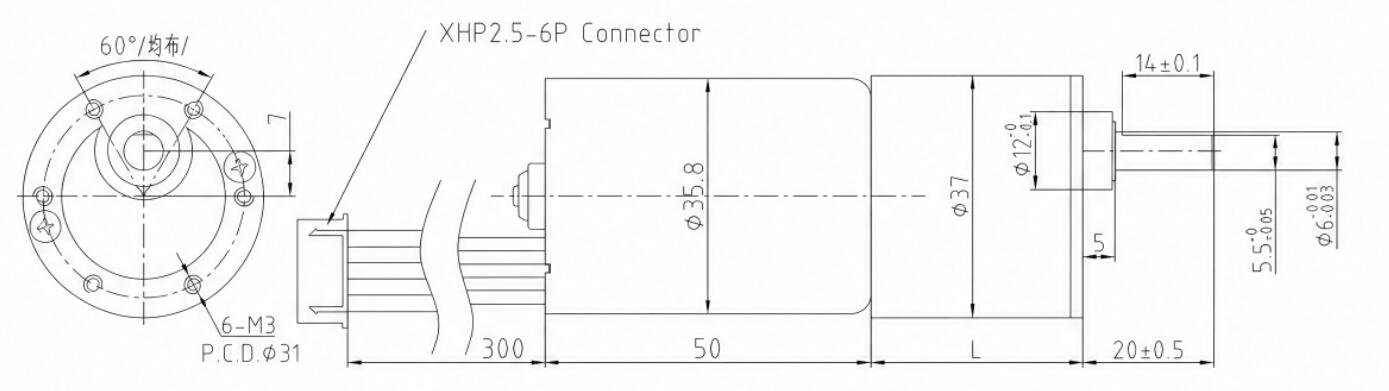

Dimensions(mm)
37R3650BL-2
Technical Data

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM Dia L Min-Max V V mA RPM mA N.m RPM
5000 9.3 3 37 25.5 TJP37R3650BL9.3i-12V-537.6R 3.0-18.0 12 350 537.6 1150 0.15 430.1
5000 11.8 3 37 25.5 TJP37R3650BL11.8i-12V-423.7R 3.0-18.0 12 350 423.7 1150 0.18 339
5000 17.4 3 37 25.5 TJP37R3650BL17.4i-12V-287.4R 3.0-18.0 12 350 287.4 1150 0.27 229.9
5000 21.8 4 37 27.5 TJP37R3650BL21.8i-12V-229.4R 3.0-18.0 12 350 229.4 1150 0.31 183.5
5000 27.5 4 37 27.5 TJP37R3650BL27.5i-12V-181.8R 3.0-18.0 12 350 181.8 1150 0.39 145.5
5000 40.4 4 37 27.5 TJP37R3650BL40.4i-12V-123.8R 3.0-18.0 12 350 123.8 1150 0.57 99
5000 73.4 5 37 29.5 TJP37R3650BL73.4i-12V-68.1R 3.0-18.0 12 350 68.1 1150 0.93 54.5
5000 89 5 37 29.5 TJP37R3650BL89i-12V-56.2R 3.0-18.0 12 350 56.2 1150 1.13 44.9
5000 103 5 37 29.5 TJP37R3650BL103i-12V-48.5R 3.0-18.0 12 350 48.5 1150 1.3 38.8
5000 136 6 37 32.5 TJP37R3650BL136i-12V-36.8R 3.0-18.0 12 350 36.8 1150 1.55 29.4
5000 171 6 37 32.5 TJP37R3650BL171i-12V-29.2R 3.0-18.0 12 350 29.2 1150 1.95 23.4
5000 194 6 37 32.5 TJP37R3650BL194i-12V-25.8R 3.0-18.0 12 350 25.8 1150 2 20.6
5000 277 6 37 32.5 TJP37R3650BL277i-12V-18.1R 3.0-18.0 12 350 18.1 1150 2 14.4
5000 305 6 37 32.5 TJP37R3650BL305i-12V-16.4R 3.0-18.0 12 350 16.4 1150 2 13.1
5000 422 7 37 35.5 TJP37R3650BL422i-12V-11.8R 3.0-18.0 12 350 11.8 1150 2 9.5
5000 513 7 37 35.5 TJP37R3650BL513i-12V-9.7R 3.0-18.0 12 350 9.7 1150 2 7.8
5000 586 7 37 35.5 TJP37R3650BL586i-12V-8.5R 3.0-18.0 12 350 8.5 1150 2 6.8
5000 712 7 37 35.5 TJP37R3650BL712i-12V-7R 3.0-18.0 12 350 7 1150 2 5.6
5000 784 7 37 35.5 TJP37R3650BL784i-12V-6.4R 3.0-18.0 12 350 6.4 1150 2 5.1

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
