24JX280 24mm Diameter Planetary Gear Motor

1. High Torque in a Compact Footprint
The planetary gearbox steps down the motor's high-RPM output into low-speed, high-torque rotation, with 20 standard gear ratios available off-the-shelf — from roughly 1,470 rpm down to 1.5 rpm. A natural fit for robotics, smart-home actuators, vending mechanisms, and small valve control: select a ratio that matches your target speed and integrate without custom prototyping.

2. Zero Lost Motion on Direction Reversal
Planet gears running on ball bearings keep backlash to a minimum, so the output shaft responds immediately the moment you reverse direction — no overshoot, no dead play. Well suited to robotic arms, camera lens actuation, and electronic locks, where repeatable positioning is required.

3. Wide-Voltage Input, Drop-In Compatibility
The 6–36 V wide-voltage range eliminates the need for a separate voltage regulator. It interfaces directly with PLCs, battery packs, and motion controllers without additional power conditioning — and if your power architecture changes later, no motor re-spec is required.

4. Factory-Option Quadrature Encoder for Closed-Loop Operation
A factory-fitted A/B channel quadrature encoder provides speed sensing, RPM counting, and position feedback as a build option. No field retrofitting of aftermarket encoders, no disassembly, and no rotor balancing or alignment work — deploy closed-loop control out of the box.

5. Engineered for Continuous-Duty Service
Zinc-alloy housing, sintered steel gears, and a shaft rated for meaningful radial load deliver a low wear rate and low audible noise under sustained load — a dependable choice for small automation equipment expected to run 24/7.

CONTACT US 24JX280 24mm Diameter Planetary Gear Motor

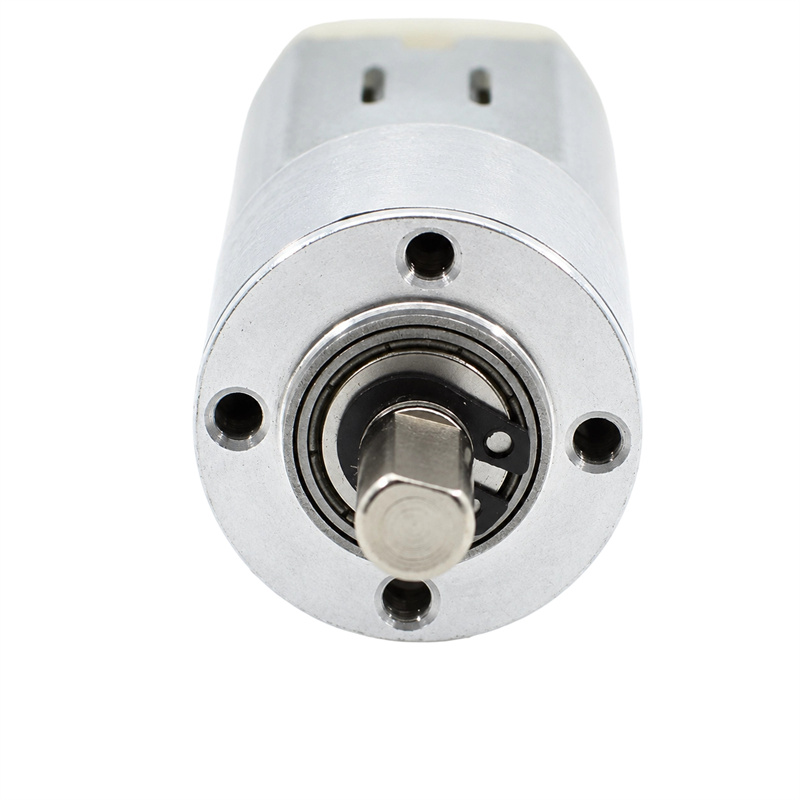

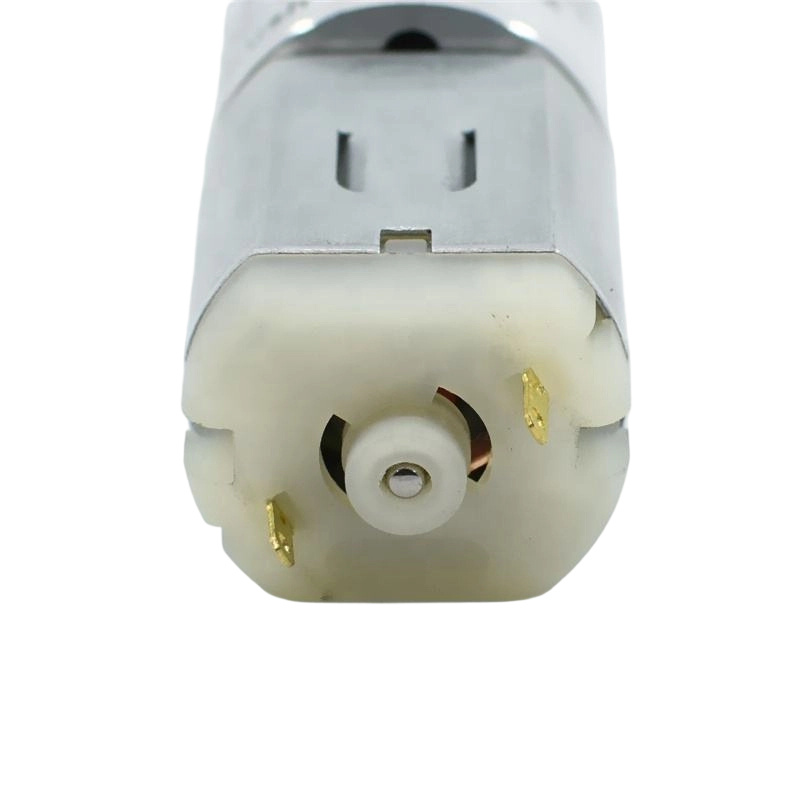

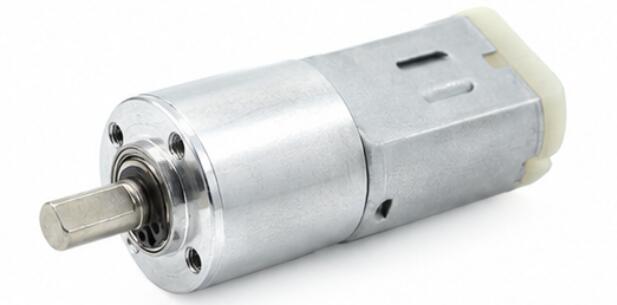

  • 24JX280 24mm Diameter Planetary Gear Motor
  • 24JX280 24mm Diameter Planetary Gear Motor
  • 24JX280 24mm Diameter Planetary Gear Motor

Specifications

 24JX280-1 Housing material Zinc alloy Encoder Optional
Model TJX24RD 24JX280-2

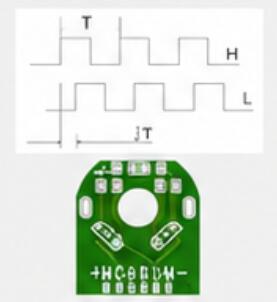

A-B 2 channels
050 Encoder-5V 12PPR
Bearing Ball bearing
Gear Modulus 0.4M
Commutator Brushed
Gear material Sintered steel
Max pressure force on shaft ≤7kgf
Back lash ≤2°
Brake available No
Gear construction Planetary gear

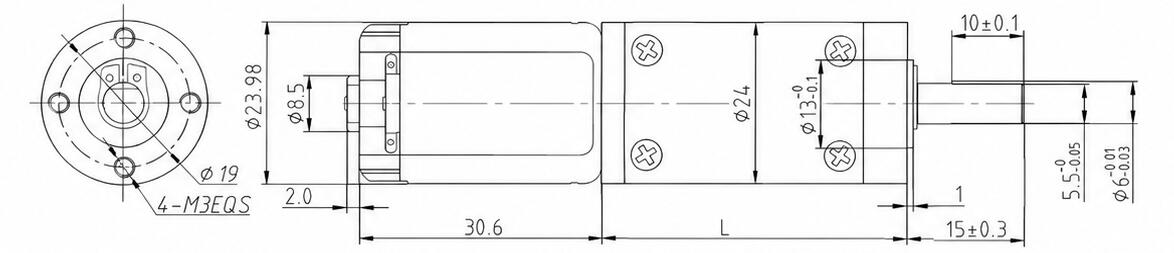

Dimensions(mm)
24JX280-3

Technical Data

DC MOTOR SPEED
(RPM)		 Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Dia L Operating Range
(Min-Max V)		 Rated Voltage
(V)		 Current
(mA)		 Speed
(RPM)		 Current
(mA)		 Torque
(N.m)		 Speed
(RPM)
6800 3.7 1 24 22 TJX24RD3.7i-24V-1837.8R 6 36 24 14 1837.8 65 0.01 1470.3
6800 5.2 1 24 22 TJX24RD5.2i-24V-1307.7R 6 36 24 14 1307.7 65 0.01 1046.2
6800 13.7 2 24 28 TJX24RD13.7i-24V-496.4R 6 36 24 14 496.4 65 0.02 397.1
6800 19.2 2 24 28 TJX24RD19.2i-24V-354.2R 6 36 24 14 354.2 65 0.03 283.3
6800 26.9 2 24 28 TJX24RD26.9i-24V-252.8R 6 36 24 14 252.8 65 0.04 202.2
6800 51 3 24 33 TJX24RD51i-24V-133.3R 6 36 24 14 133.3 65 0.07 106.7
6800 71 3 24 33 TJX24RD71i-24V-95.8R 6 36 24 14 95.8 65 0.09 76.6
6800 100 3 24 33 TJX24RD100i-24V-68R 6 36 24 14 68 65 0.13 54.4
6800 139 3 24 33 TJX24RD139i-24V-48.9R 6 36 24 14 48.9 65 0.18 54.4
6800 189 4 24 39 TJX24RD189i-24V-36R 6 36 24 14 36 65 0.22 28.8
6800 264 4 24 39 TJX24RD264i-24V-25.8R 6 36 24 14 25.8 65 0.31 20.6
6800 369 4 24 39 TJX24RD369i-24V-18.4R 6 36 24 14 18.4 65 0.43 14.7
6800 512 4 24 39 TJX24RD512i-24V-13.3R 6 36 24 14 13.3 65 0.6 10.6
6800 721 4 24 39 TJX24RD721i-24V-9.4R 6 36 24 14 9.4 65 0.84 7.5
6800 699 5 24 45 TJX24RD699i-24V-9.7R 6 36 24 14 9.7 65 0.73 7.8
6800 977 5 24 45 TJX24RD977i-24V-7R 6 36 24 14 7 65 1.03 5.6
6800 1367 5 24 45 TJX24RD1367i-24V-5R 6 36 24 14 5 65 1.44 4
6800 1911 5 24 45 TJX24RD1911i-24V-3.6R 6 36 24 14 3.6 65 2 2.8
6800 2672 5 24 45 TJX24RD2672i-24V-2.5R 6 36 24 14 2.5 65 2 2
6800 3736 5 24 45 TJX24RD3736i-24V-1.8R 6 36 24 14 1.8 65 2 1.5

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
