60JX63126 Brushed planetary geared motor

1. High Torque for Demanding Drive Applications
Need stronger driving force in a compact motor solution? This high torque planetary gear motor is designed for robotic mechanisms, lifting systems, AGV equipment, industrial actuators and other applications that require powerful geared output.

2. Brake Option for Safer Load Holding
The available brake configuration helps hold the load when power is removed, making the motor suitable for lifting, positioning, access control and equipment that requires controlled stopping.

3. Smooth and Predictable Motion Control
The planetary gearbox and low-backlash design help improve motion consistency, making it easier to achieve stable starting, stopping and positioning in automated equipment.

4. Encoder-Ready for Closed-Loop Systems
An optional 5V A/B two-channel D-shape encoder provides feedback for speed and position monitoring, helping engineers build more responsive and intelligent motion-control systems.

5. Flexible Solution for Different Equipment Designs
Multiple reduction ratios are available to match different speed and torque requirements. The cylindrical structure, customizable output options and project-based support make it suitable for prototypes, equipment upgrades and volume production.

CONTACT US 60JX63126 Brushed planetary geared motor
  • 60JX63126 Brushed planetary geared motor
  • 60JX63126 Brushed planetary geared motor
  • 60JX63126 Brushed planetary geared motor

Specifications

 60JX63126-3 Housing material Zinc alloy Encoder Optional
Model TJX60R63126S 60JX63126-4
A-B 2 channels
D-Shape Encoder-5V 13PPR
Bearing Ball bearing
Gear Modulus 0.8M
Commutator Brushed
Gear material 40Cr steel
Max pressure force on shaft ≤30kgf
Back lash ≤2°
Brake available Yes
Gear construction Planetary gear

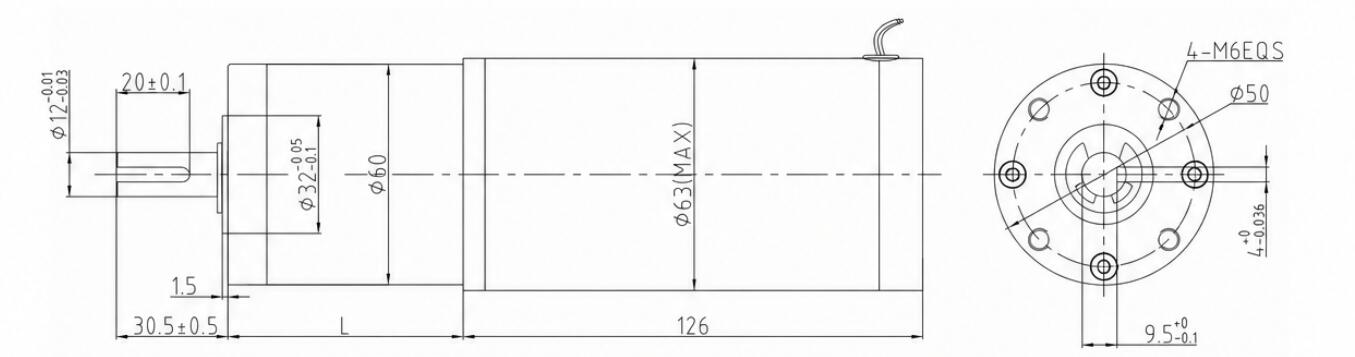

Dimensions(mm)
60JX63126-5


Technical Data

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM Dia L Min-Max V V mA RPM mA N.m RPM
8000 3.7 1 60 30.8 TJX60R63126S3.7i-24V-2162.2R 6.0-36.0 24 1500 2162.2 8000 0.62 1729.7
8000 5.2 1 60 30.8 TJX60R63126S5.2i-24V-1538.5R 6.0-36.0 24 1500 1538.5 8000 0.87 1230.8
8000 13.7 2 60 44 TJX60R63126S13.7i-24V-583.9R 6.0-36.0 24 1500 583.9 8000 2.07 467.2
8000 19.2 2 60 44 TJX60R63126S19.2i-24V-416.7R 6.0-36.0 24 1500 416.7 8000 2.9 333.3
8000 26.9 2 60 44 TJX60R63126S26.9i-24V-297.4R 6.0-36.0 24 1500 297.4 8000 4.06 237.9
8000 51 3 60 57.5 TJX60R63126S51i-24V-156.9R 6.0-36.0 24 1500 156.9 8000 6.92 125.5
8000 71 3 60 57.5 TJX60R63126S71i-24V-112.7R 6.0-36.0 24 1500 112.7 8000 9.64 90.1
8000 100 3 60 57.5 TJX60R63126S100i-24V-80R 6.0-36.0 24 1500 80 8000 13.58 64
8000 139 3 60 57.5 TJX60R63126S139i-24V-57.6R 6.0-36.0 24 1500 57.6 8000 18.87 46
8000 189 4 60 72.5 TJX60R63126S189i-24V-42.3R 6.0-36.0 24 1500 42.3 8000 20 33.9
8000 264 4 60 72.5 TJX60R63126S264i-24V-30.3R 6.0-36.0 24 1500 30.3 8000 20 24.2
8000 369 4 60 72.5 TJX60R63126S369i-24V-21.7R 6.0-36.0 24 1500 21.7 8000 20 17.3
8000 512 4 60 72.5 TJX60R63126S512i-24V-15.6R 6.0-36.0 24 1500 15.6 8000 20 12.5
8000 721 4 60 72.5 TJX60R63126S721i-24V-11.1R 6.0-36.0 24 1500 11.1 8000 20 8.9
8000 699 5 60 87.5 TJX60R63126S699i-24V-11.4R 6.0-36.0 24 1500 11.4 8000 20 9.2
8000 977 5 60 87.5 TJX60R63126S977i-24V-8.2R 6.0-36.0 24 1500 8.2 8000 20 6.6
8000 1367 5 60 87.5 TJX60R63126S1367i-24V-5.9R 6.0-36.0 24 1500 5.9 8000 20 4.7
8000 1911 5 60 87.5 TJX60R63126S1911i-24V-4.2R 6.0-36.0 24 1500 4.2 8000 20 3.3
8000 2672 5 60 87.5 TJX60R63126S2672i-24V-3R 6.0-36.0 24 1500 3 8000 20 2.4
8000 3736 5 60 87.5 TJX60R63126S3736i-24V-2.1R 6.0-36.0 24 1500 2.1 8000 20 1.7

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
