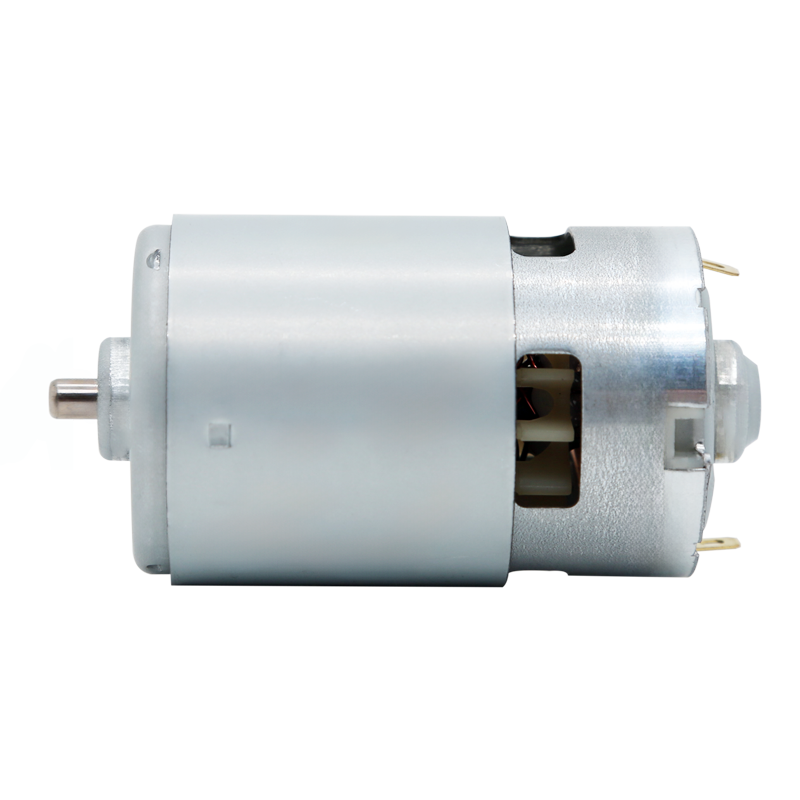

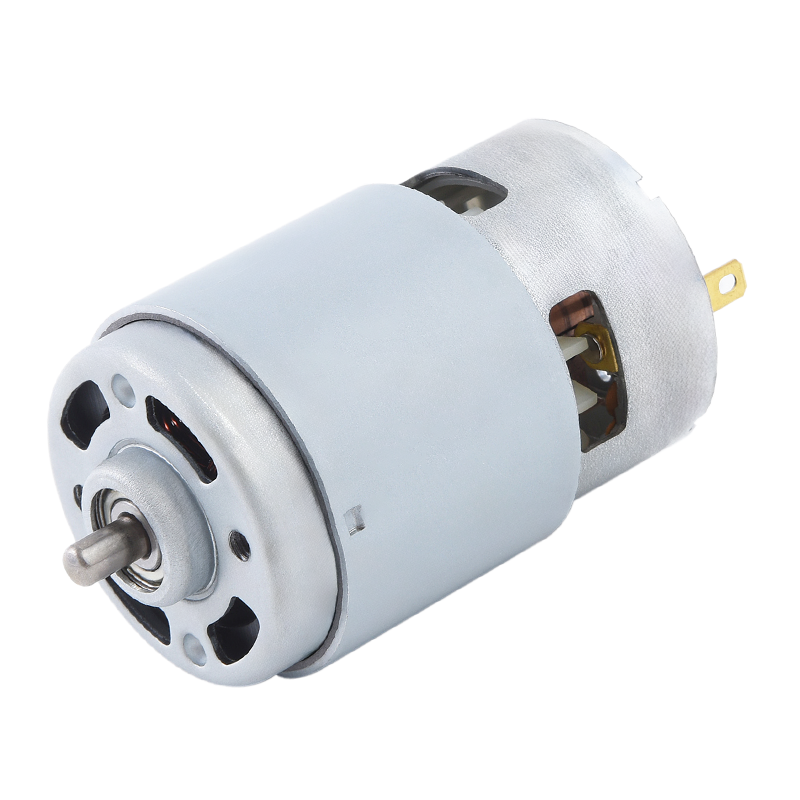

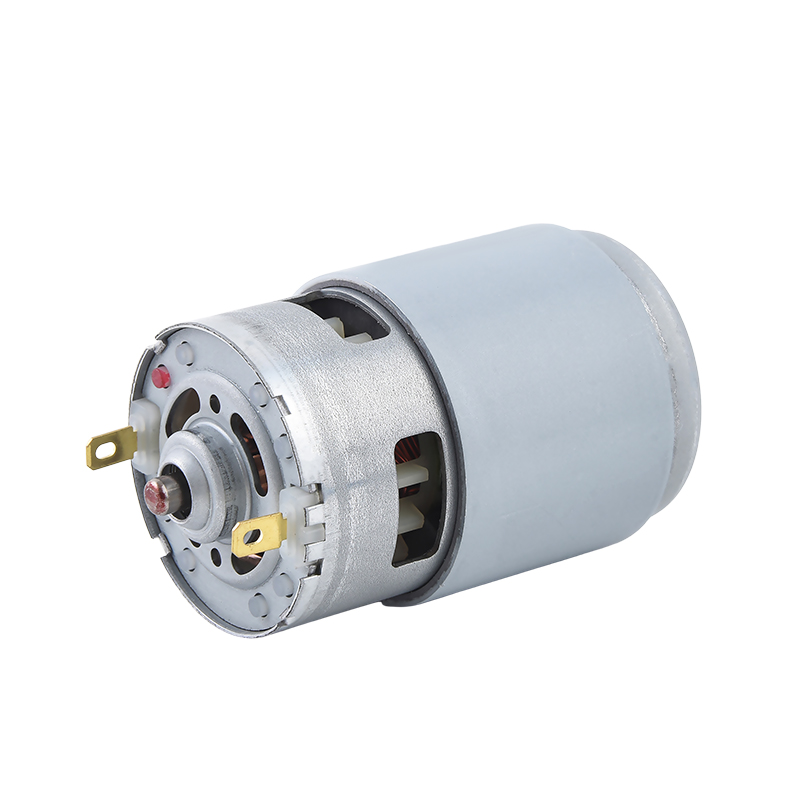

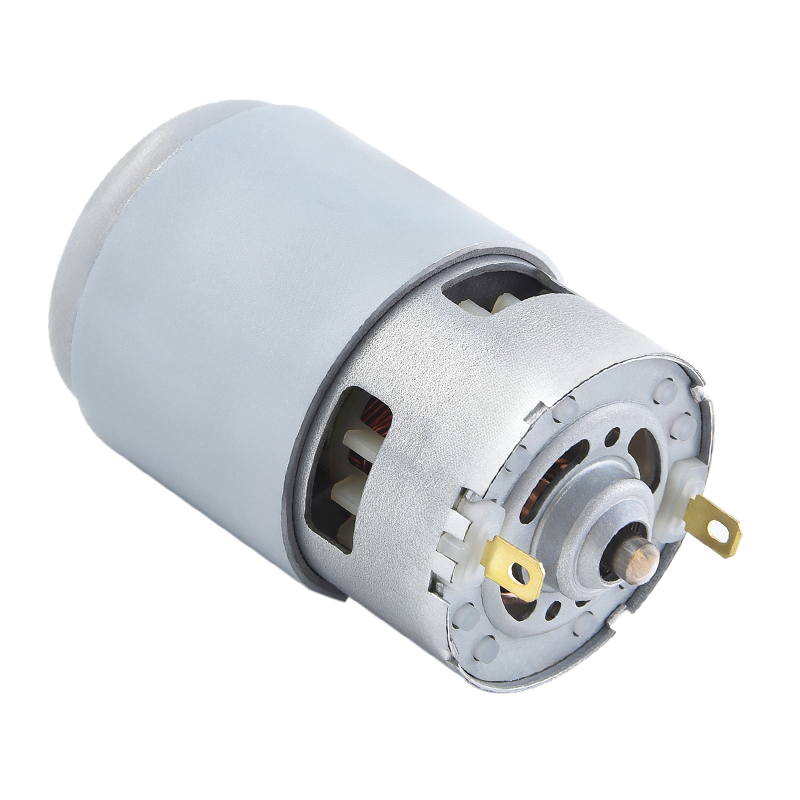

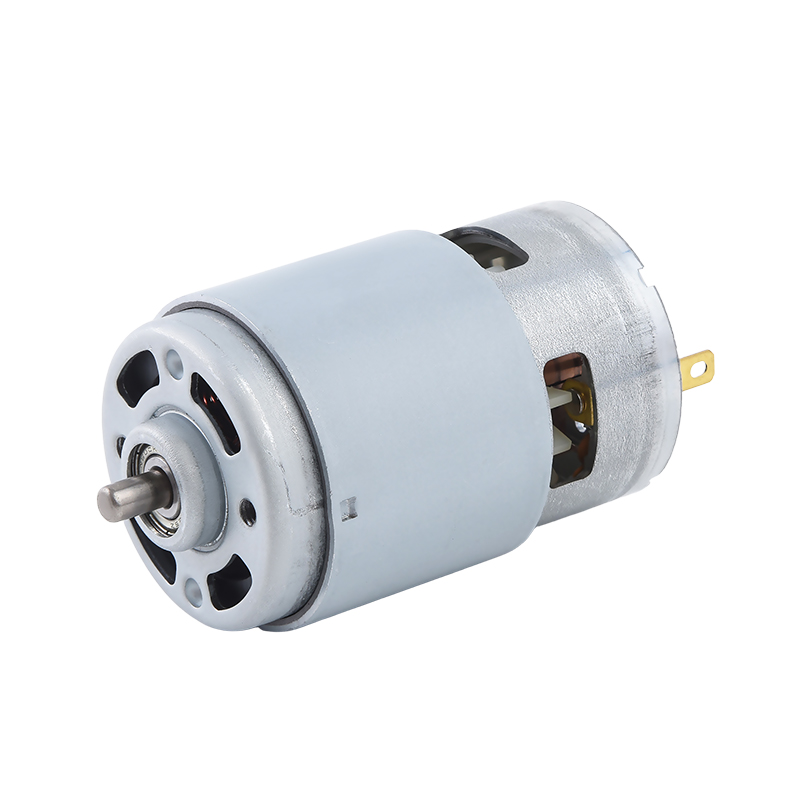

RS-777 DC Motor for diaphragm pumps

The RS777 DC motor is specially designed for reliable performance in diaphragm pumps, electric tools, and pruning machines. It delivers stable torque and consistent power output to support continuous and efficient operation. With strong durability and smooth running, it ensures long-term stable work for various equipment. This motor is an ideal choice for manufacturers looking for dependable power solutions.

CONTACT US RS-777 DC Motor for diaphragm pumps
  • RS-777 DC Motor for diaphragm pumps
  • RS-777 DC Motor for diaphragm pumps
  • RS-777 DC Motor for diaphragm pumps

Specifications

Motor Length:

66.5mm(Excluding the Shaft)

Motor Diameter:

42mm(Add Magnet Shield Ring:46.5mm Max)

Shaft Length:

Custom

Shaft Diameter:

5mm

Shaft Type:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Speed:

2000-30000RPM

Torque:

0-1N.m

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
HRS-775S-9100F 6.0 - 12.0 12.0V CONSTANT 18800 2 16160 12.3 674 66.05 111.7 76 75.4 4800 470.4
HRS-775S-9104F 12.0 - 24.0 18.0V CONSTANT 21600 2.5 19200 16.5 1050 102.9 206.8 69.7 128.5 9450 926.1
HRS-775S-5136F 18.0 - 30.0 24.0V CONSTANT 10300 0.7 9010 2.79 565 55.37 52.21 78 17.4 4510 441.9

Please inquire with your sales representative for output, performance, and EMC solution.
