22JX180 Brushed planetary geared motor

1. Compact Power for Space-Limited Designs
Need more power without enlarging your equipment? This mini planetary gear motor delivers efficient geared output in a compact 22mm gearbox, making it ideal for robots, smart devices, locks and small automation systems.

2. Easy Speed and Torque Matching
One motor platform, multiple drive solutions. Choose from a wide range of reduction ratios to match your required speed and torque without redesigning the entire mechanical system.

3. Built for Controlled and Precise Movement
The planetary gear structure and low-backlash design help deliver smoother, more predictable movement for robotic joints, feeders, actuators, instruments and other motion-control applications.

4. Ready for Feedback-Controlled Systems
For applications that require speed or position feedback, an optional A/B two-channel encoder can help improve motor control and system integration.

5. Custom Motor Solutions from Prototype to Production
Available for OEM and ODM projects with flexible gear ratios, shaft configurations and encoder options. Suitable for prototype testing, small-batch development and volume production.

CONTACT US 22JX180 Brushed planetary geared motor

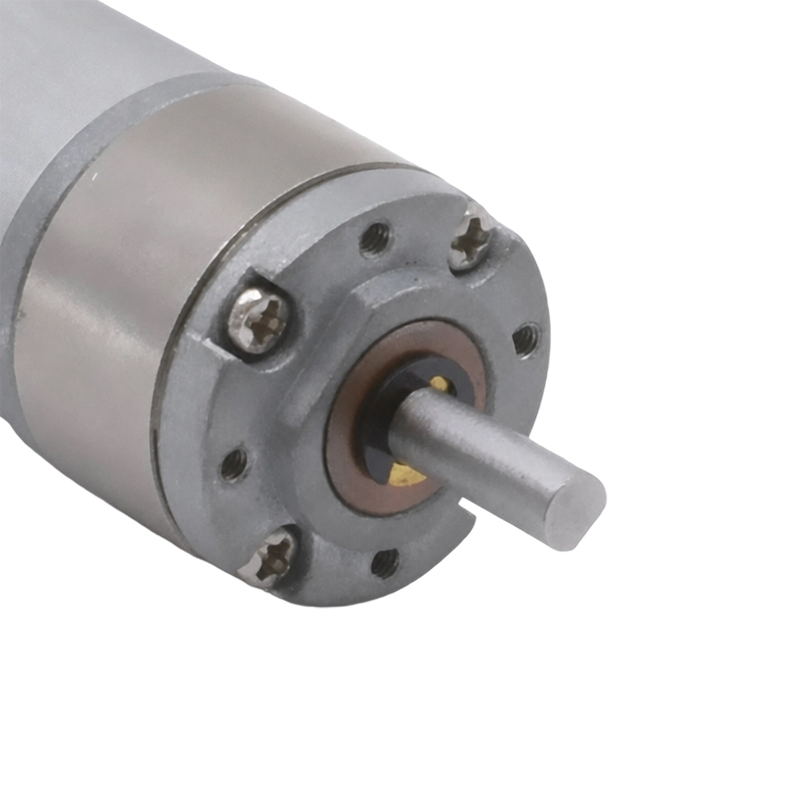

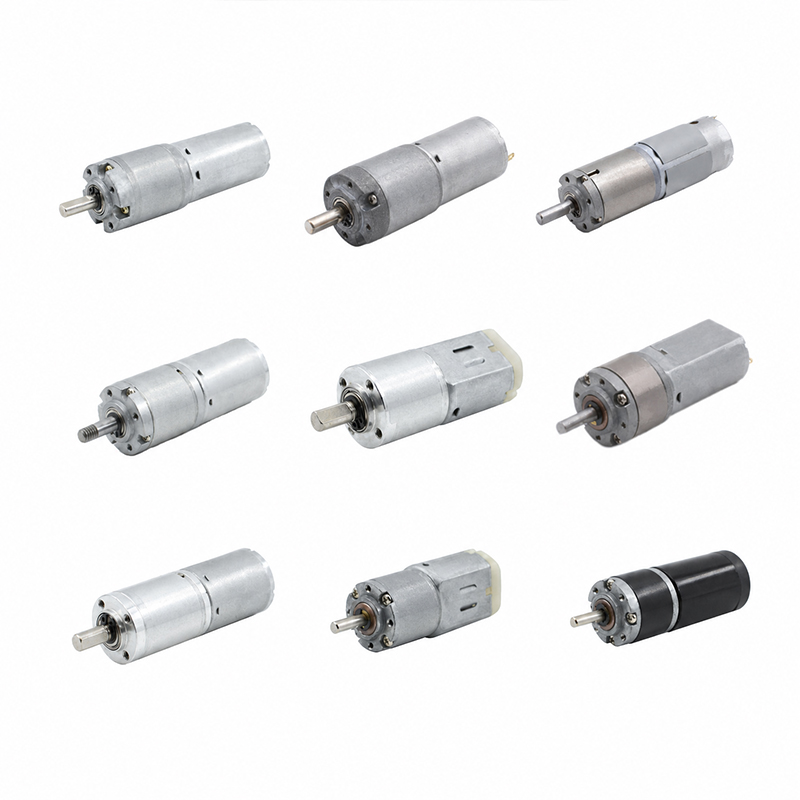

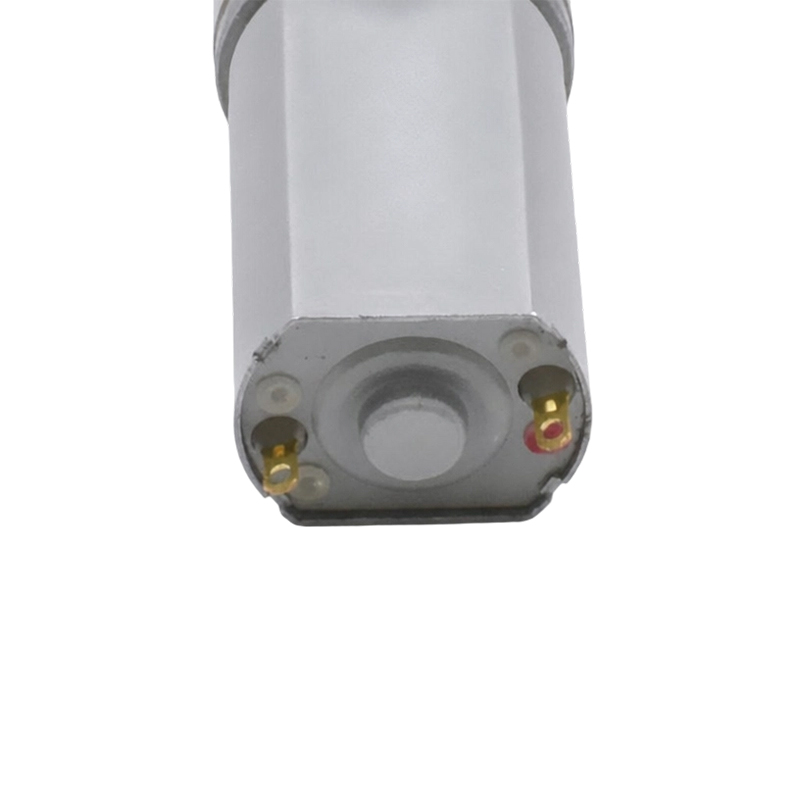

  • 22JX180 Brushed planetary geared motor
  • 22JX180 Brushed planetary geared motor
  • 22JX180 Brushed planetary geared motor
  • 22JX180 Brushed planetary geared motor

Specifications

 22JX180-5 Housing material Zinc alloy Encoder Optional
Model TJX22RC 22JX180-6
A-B 2channels
180Encoder-5V 12PPR
Bearing Oil bearing
Gear Modulus 0.3M
Commutator Brushed
Gear material Sintered steel
Max pressure force on shaft ≤5kgf
Back lash ≤2°
Brake available No
Gear construction Planetary gear

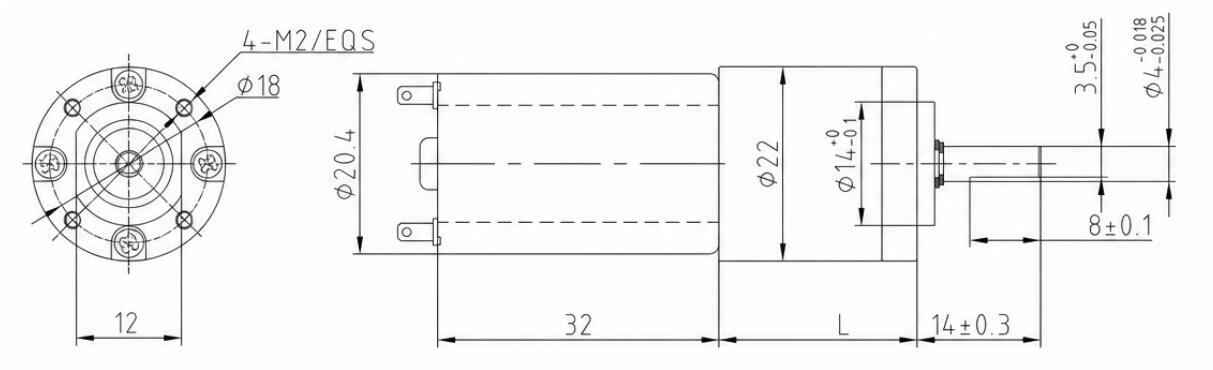

Dimensions(mm)
22JX180-7

Technical Data

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM Dia L Min-Max V V mA RPM mA N.m RPM
10000 4 1 22 13 TJX22RC4i-6V-2500R 1.5-9.0 6 150 2500 520 0.01 2000
10000 4.75 1 22 13 TJX22RC4.75i-6V-2105.3R 1.5-9.0 6 150 2105.3 520 0.01 1684.2
10000 12.3 2 22 17 TJX22RC12.3i-6V-813R 1.5-9.0 6 150 813 520 0.02 650.4
10000 16 2 22 17 TJX22RC16i-6V-625R 1.5-9.0 6 150 625 520 0.03 500
10000 19 2 22 17 TJX22RC19i-6V-526.3R 1.5-9.0 6 150 526.3 520 0.04 421.1
10000 43 3 22 20 TJX22RC43i-6V-232.6R 1.5-9.0 6 150 232.6 520 0.08 186
10000 58 3 22 20 TJX22RC58i-6V-172.4R 1.5-9.0 6 150 172.4 520 0.1 137.9
10000 76 3 22 20 TJX22RC76i-6V-131.6R 1.5-9.0 6 150 131.6 520 0.13 105.3
10000 90 3 22 20 TJX22RC90i-6V-111.1R 1.5-9.0 6 150 111.1 520 0.16 88.9
10000 107 3 22 20 TJX22RC107i-6V-93.5R 1.5-9.0 6 150 93.5 520 0.19 74.8
10000 150 4 22 24 TJX22RC150i-6V-66.7R 1.5-9.0 6 150 66.7 520 0.24 53.3
10000 204 4 22 24 TJX22RC204i-6V-49R 1.5-9.0 6 150 49 520 0.32 39.2
10000 276 4 22 24 TJX22RC276i-6V-36.2R 1.5-9.0 6 150 36.2 520 0.44 29
10000 304 4 22 24 TJX22RC304i-6V-32.9R 1.5-9.0 6 150 32.9 520 0.48 26.3
10000 375 4 22 24 TJX22RC375i-6V-26.7R 1.5-9.0 6 150 26.7 520 0.6 21.3
10000 525 5 22 28 TJX22RC525i-6V-19R 1.5-9.0 6 150 19 520 0.75 15.2
10000 713 5 22 28 TJX22RC713i-6V-14R 1.5-9.0 6 150 14 520 0.75 11.2
10000 1024 5 22 28 TJX22RC1024i-6V-9.8R 1.5-9.0 6 150 9.8 520 1 7.8
10000 2036 5 22 28 TJX22RC2036i-6V-4.9R 1.5-9.0 6 150 4.9 520 1 3.9

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
