42GA775 Gear Motor

1. Reliable Power for Medium-Load Equipment
Designed for applications that need dependable driving force, this 24V brushed DC gear motor is suitable for conveyors, automation equipment, electric actuators, AGVs, lifting mechanisms and other medium-load systems.

2. Strong Output in a Practical Motor Size
The 42mm gearbox helps provide powerful geared output without taking up excessive installation space, making it easier to integrate into equipment upgrades and new machine designs.

3. Flexible Speed and Torque Matching
A wide selection of reduction ratios allows engineers to choose the right output performance for their application, whether the priority is faster movement, stronger pulling force or controlled operation.

4. Optional Encoder for Smarter Motion Control
The optional 5V A/B two-channel encoder supports speed and position feedback, helping improve motion monitoring and system control in robots, actuators and automated machinery.

5. Built for OEM Projects and Long-Term Supply
With a sturdy spur gear transmission, metal gear components and flexible configuration options, this motor is suitable for prototype development, equipment customization and volume production.

CONTACT US 42GA775 Gear Motor
  • 42GA775 Gear Motor
  • 42GA775 Gear Motor
  • 42GA775 Gear Motor

Specifications

 42GA775-3 Housing material Zinc alloy Encoder Optional
Model TJZ42RT 42GA775-4
A-B 2 channels
775Encoder-5V 13PPR
Bearing Oil bearing
Gear Modulus 0.7M
Commutator Brushed
Gear material 40Cr steel
Max pressure force on shaft ≤15kgf
Back lash ≤2°
Brake available No
Gear construction Spur gear

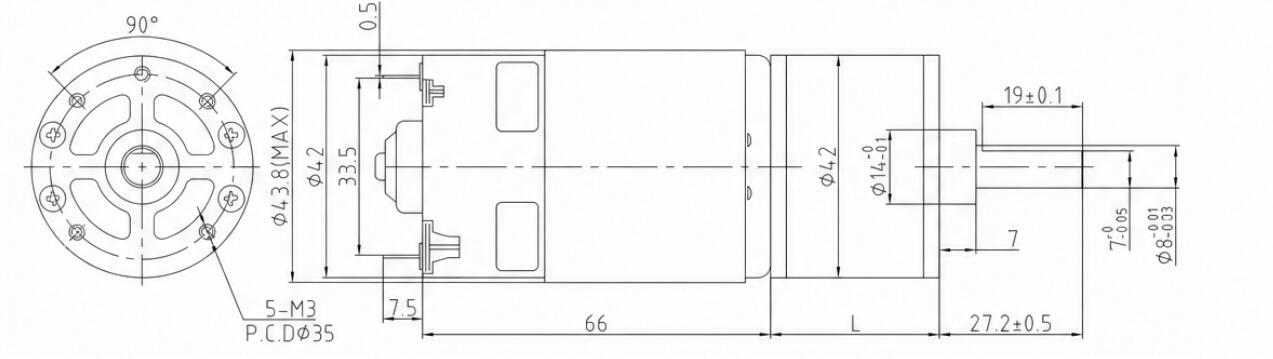

Dimensions(mm)
42GA775-5

Technical Data

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM Dia L Min-Max V V mA RPM mA N.m RPM
6500 3.1 2 42 25.7 TJZ42RT3.1i-24V-2096.8R 6.0-36.0 24 395 2096.8 3000 0.22 1677.4
6500 4.8 2 42 25.7 TJZ42RT4.8i-24V-1354.2R 6.0-36.0 24 395 1354.2 3000 0.33 1083.3
6500 6.1 2 42 25.7 TJZ42RT6.1i-24V-1065.6R 6.0-36.0 24 395 1065.6 3000 0.42 852.5
6500 8.3 3 42 25.7 TJZ42RT8.3i-24V-783.1R 6.0-36.0 24 395 783.1 3000 0.52 626.5
6500 10.3 3 42 25.7 TJZ42RT10.3i-24V-631.1R 6.0-36.0 24 395 631.1 3000 0.65 504.9
6500 12.8 3 42 25.7 TJZ42RT12.8i-24V-507.8R 6.0-36.0 24 395 507.8 3000 0.8 406.3
6500 16.4 3 42 25.7 TJZ42RT16.4i-24V-396.3R 6.0-36.0 24 395 396.3 3000 1.03 317.1
6500 18.2 4 42 25.7 TJZ42RT18.2i-24V-357.1R 6.0-36.0 24 395 357.1 3000 1.03 285.7
6500 27.4 4 42 25.7 TJZ42RT27.4i-24V-237.2R 6.0-36.0 24 395 237.2 3000 1.55 189.8
6500 34.2 4 42 25.7 TJZ42RT34.2i-24V-190.1R 6.0-36.0 24 395 190.1 3000 1.93 152
6500 43.8 4 42 25.7 TJZ42RT43.8i-24V-148.4R 6.0-36.0 24 395 148.4 3000 2.47 118.7
6500 59.3 5 42 29.5 TJZ42RT59.3i-24V-109.6R 6.0-36.0 24 395 109.6 3000 2.5 87.7
6500 73 5 42 29.5 TJZ42RT73i-24V-89R 6.0-36.0 24 395 89 3000 2.5 71.2
6500 91.2 5 42 29.5 TJZ42RT91.2i-24V-71.3R 6.0-36.0 24 395 71.3 3000 2.5 57
6500 120 5 42 29.5 TJZ42RT120i-24V-54.2R 6.0-36.0 24 395 54.2 3000 2.5 43.3
6500 158 6 42 32.7 TJZ42RT158i-24V-41.1R 6.0-36.0 24 395 41.1 3000 2.5 32.9
6500 195 6 42 32.7 TJZ42RT195i-24V-33.3R 6.0-36.0 24 395 33.3 3000 2.5 26.7
6500 243 6 42 32.7 TJZ42RT243i-24V-26.7R 6.0-36.0 24 395 26.7 3000 2.5 21.4
6500 323 6 42 32.7 TJZ42RT323i-24V-20.1R 6.0-36.0 24 395 20.1 3000 2.5 16.1

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
