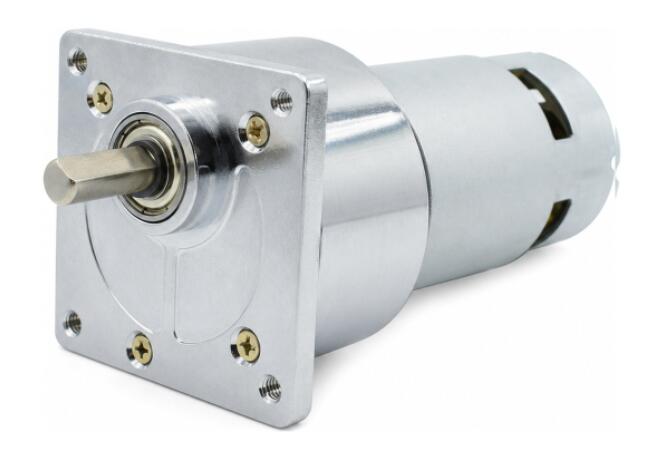

60GB775 60mm Gear Motor

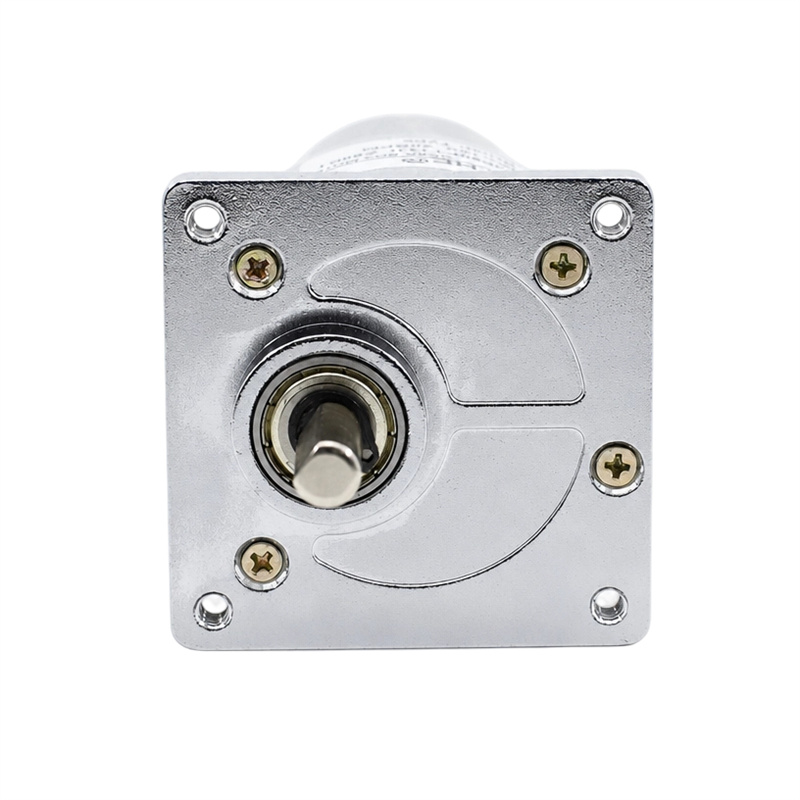

1. Precision Square Flange Mounting:
The 60×60mm square flange with 4×M4 mounting holes sits perfectly flush against your equipment, delivering rigid alignment and simple, reliable integration into automation systems, conveyor lines, and machinery.
2. High Torque, Heavy Duty Performance:

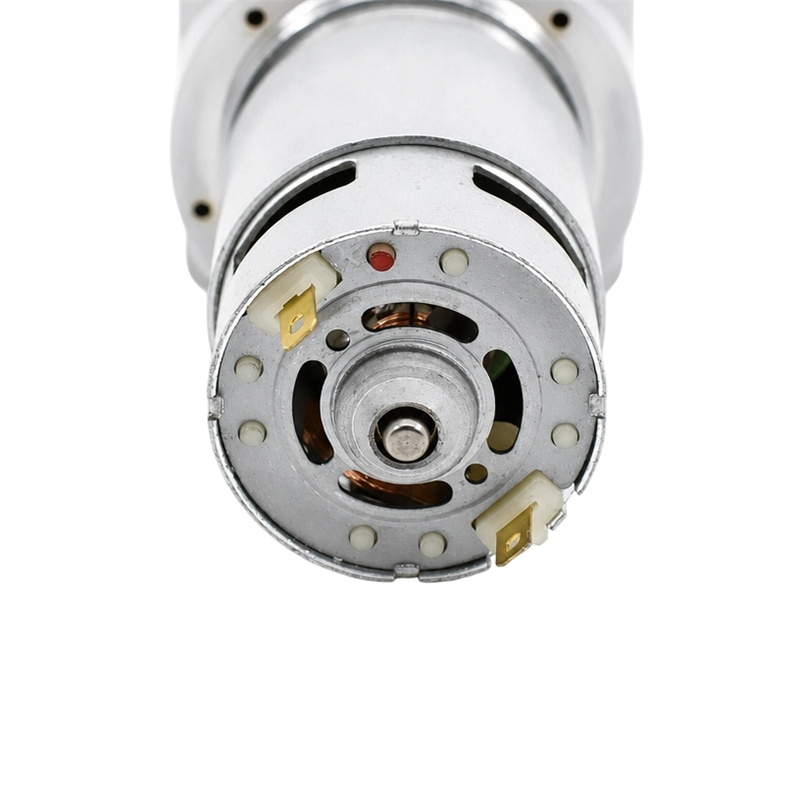

Built on the proven 775 brushed motor platform, this gearmotor delivers output torque up to 10.0 N·m (about 102 kgf·cm), providing steady low speed power for demanding load applications such as lifting, driving, and positioning.
3. Wide Speed Range, Multiple Gear Stages:
Choose from reduction ratios from 7.6:1 to 462:1 across 2 to 5 gear stages, with output speeds from 737 RPM down to 12 RPM, matching everything from fast motion to slow, powerful actuation.
4. Premium Materials, Long Lasting Reliability:
40Cr alloy steel gears with 1.25M module, precision ball bearings, and a rugged zinc alloy housing ensure high load capacity (shaft pressure up to 20 kgf), tight backlash ≤2°, smooth and quiet operation, and a long service life under continuous duty.
5. Flexible Voltage and Smart Feedback:
Rated 12V with a wide 3 to 18V operating range fits diverse power systems; an optional 5V 13PPR dual channel encoder provides accurate speed and position feedback for closed loop control, precise automation, and position sensitive applications.

CONTACT US 60GB775 60mm Gear Motor
  • 60GB775 60mm Gear Motor
  • 60GB775 60mm Gear Motor
  • 60GB775 60mm Gear Motor

Specifications

 60GB775 Housing material Zinc alloy Encoder Optional

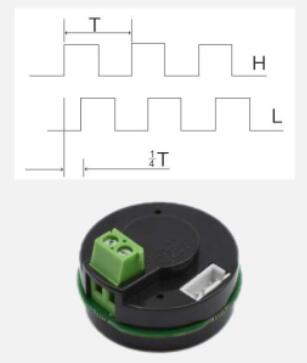

Model TJP60FT 60GB775-1
A-B 2 channels
775 Encoder-5V 13PPR
Bearing Ball bearing
Gear Modulus 1.25M
Commutator Brushed
Gear material 40Cr steel
Max pressure force on shaft ≤20kgf
Back lash ≤2°
Brake available No
Gear construction Spur gear

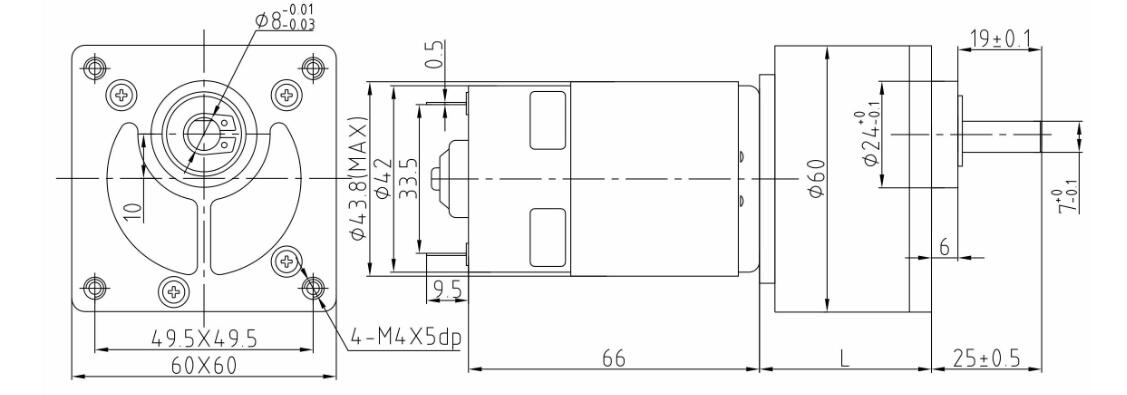

Dimensions(mm)
60GB775-2

Technical Data

DC MOTOR SPEED
(RPM)		 Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Dia L Operating Range
(Min-Max V)		 Rated Voltage
(V)		 Current
(mA)		 Speed
(RPM)		 Current
(mA)		 Torque
(N.m)		 Speed
(RPM)
7000 7.6 2 60 28.5 TJP60FT7.6i-12V-921.1R 3 18 12 760 921.1 5800 0.47 736.8
7000 8.3 2 60 28.5 TJP60FT8.3i-12V-843.4R 3 18 12 760 843.4 5800 0.52 674.7
7000 10.8 2 60 28.5 TJP60FT10.8i-12V-648.1R 3 18 12 760 648.1 5800 0.67 518.5
7000 14.1 2 60 28.5 TJP60FT14.1i-12V-496.5R 3 18 12 760 496.5 5800 0.88 397.2
7000 20.7 3 60 33.5 TJP60FT20.7i-12V-338.2R 3 18 12 760 338.2 5800 1.16 270.5
7000 27 3 60 33.5 TJP60FT27i-12V-259.3R 3 18 12 760 259.3 5800 1.52 207.4
7000 34.3 3 60 33.5 TJP60FT34.3i-12V-204.1R 3 18 12 760 204.1 5800 1.93 163.3
7000 41 3 60 33.5 TJP60FT41i-12V-170.7R 3 18 12 760 170.7 5800 2.31 136.6
7000 45 3 60 33.5 TJP60FT45i-12V-155.6R 3 18 12 760 155.6 5800 2.53 124.4
7000 66.3 4 60 36 TJP60FT66.3i-12V-105.6R 3 18 12 760 105.6 5800 3.36 84.5
7000 77.7 4 60 36 TJP60FT77.7i-12V-90.1R 3 18 12 760 90.1 5800 3.93 72.1
7000 101 4 60 36 TJP60FT101i-12V-69.3R 3 18 12 760 69.3 5800 5.11 55.4
7000 131 4 60 36 TJP60FT131i-12V-53.4R 3 18 12 760 53.4 5800 6.63 42.7
7000 144 4 60 36 TJP60FT144i-12V-48.6R 3 18 12 760 48.6 5800 7.29 38.9
7000 212 5 60 40 TJP60FT212i-12V-33R 3 18 12 760 33 5800 9.66 26.4
7000 270 5 60 40 TJP60FT270i-12V-25.9R 3 18 12 760 25.9 5800 10 20.7
7000 323 5 60 40 TJP60FT323i-12V-21.7R 3 18 12 760 21.7 5800 10 17.3
7000 355 5 60 40 TJP60FT355i-12V-19.7R 3 18 12 760 19.7 5800 10 15.8
7000 462 5 60 40 TJP60FT462i-12V-15.2R 3 18 12 760 15.2 5800 10 12.1

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
