RS-755 DC Motor for electric hammers

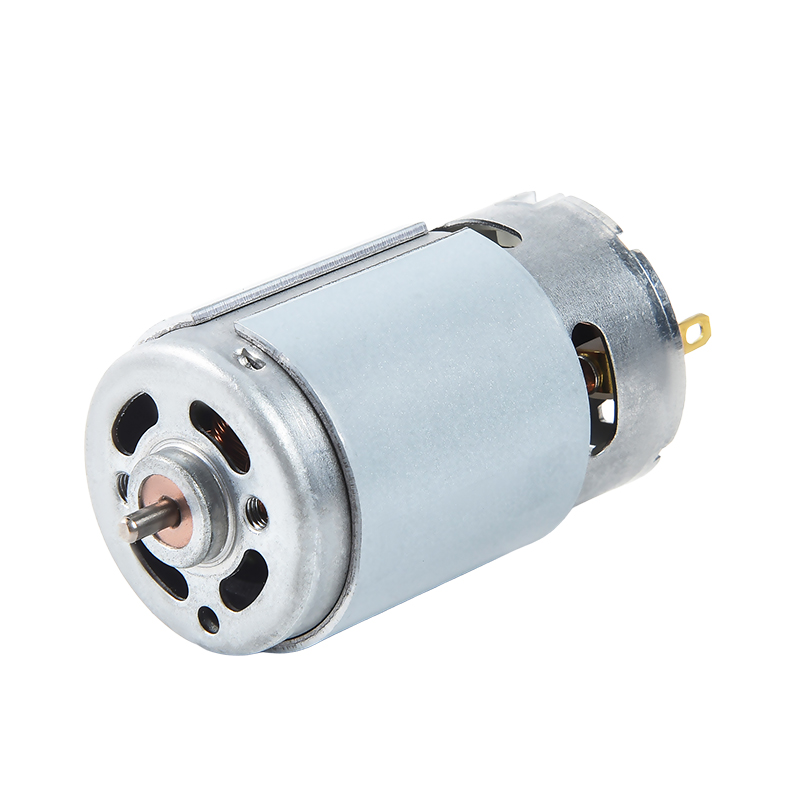

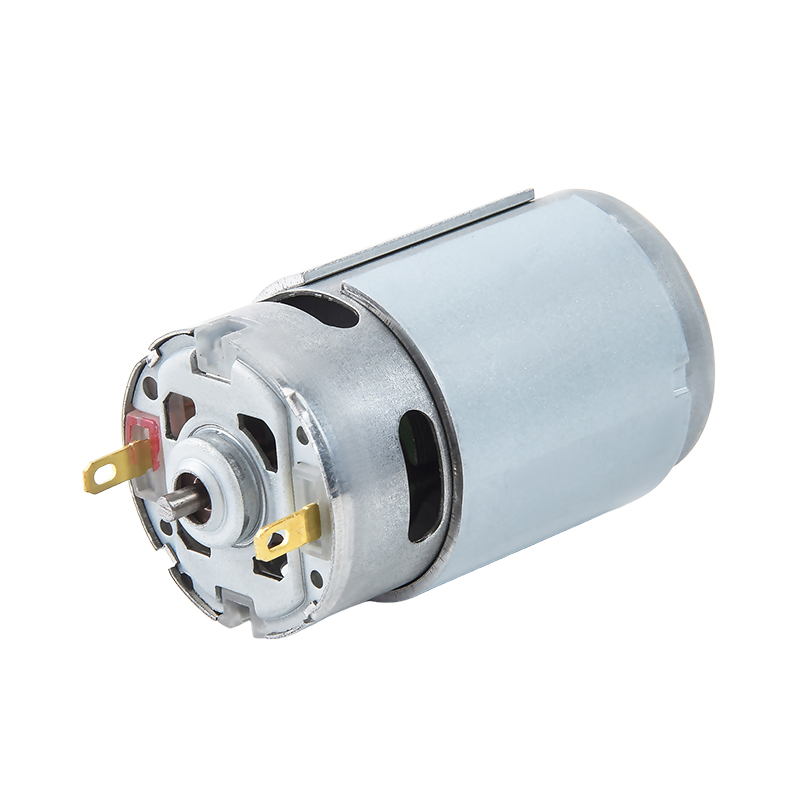

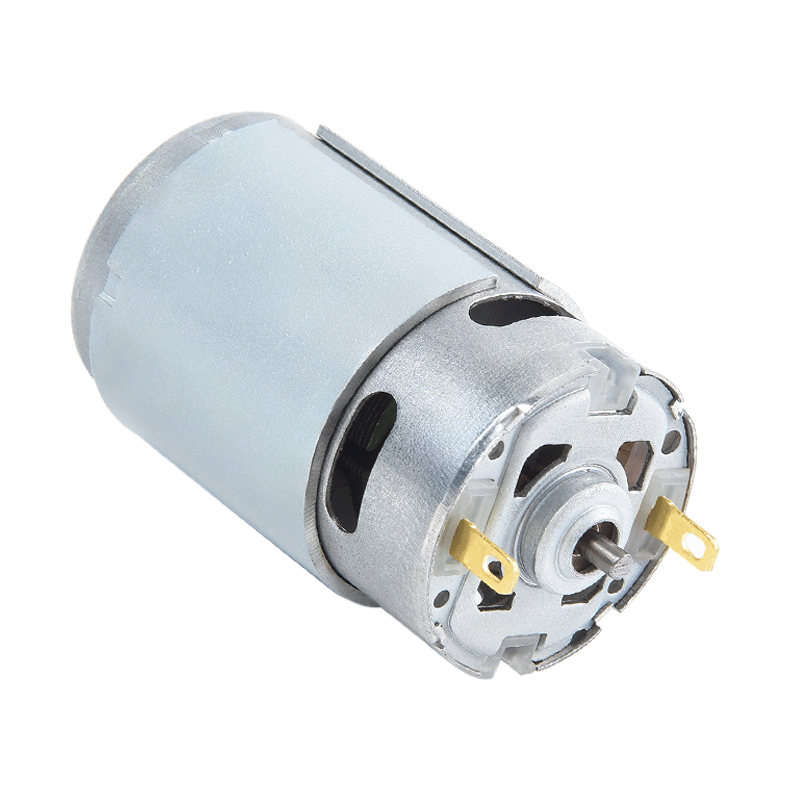

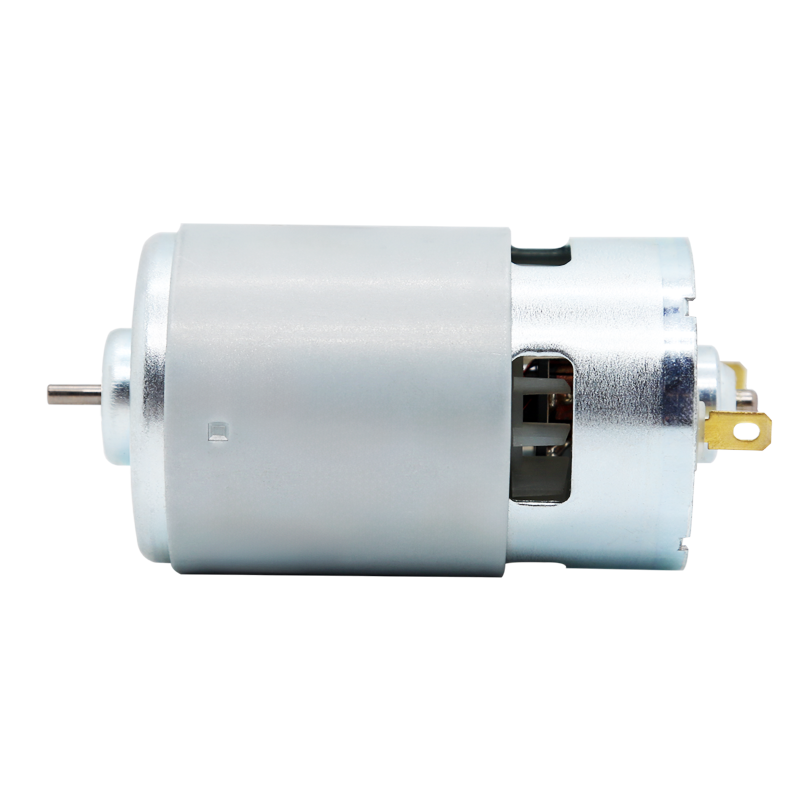

The RS755 DC motor comes with a high-strength galvanized steel casing, strong ferrite magnets, and a high-density steel shaft. It has a built-in fan for better heat dissipation, allowing stable and continuous operation even in high-temperature environments. This motor features long service life and high durability. It can be equipped with ball bearings and is widely used in electric hammers, pruners, electric torque tools, grass trimmers, knife sharpeners, car fans, diaphragm pumps and other power equipment.

CONTACT US RS-755 DC Motor for electric hammers
  • RS-755 DC Motor for electric hammers
  • RS-755 DC Motor for electric hammers
  • RS-755 DC Motor for electric hammers

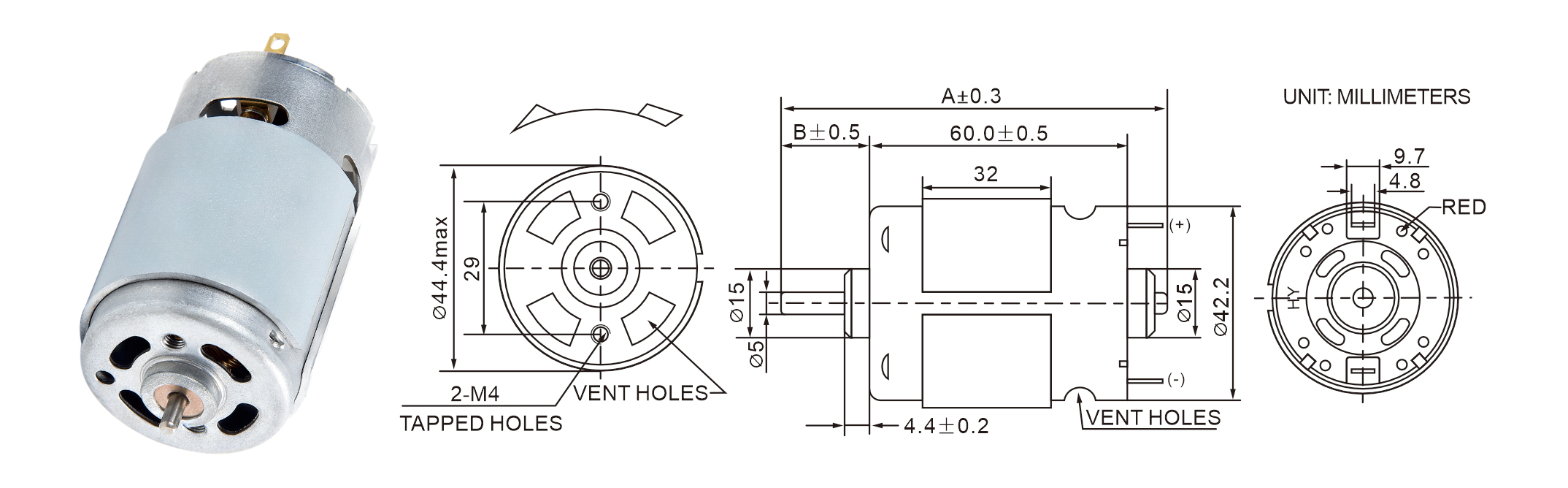

Specifications

Motor Body Length: 60mm(Excluding the Shaft)
Motor Diameter: 42mm(Add Magnet Shield Ring: 44.4mm Max)
Shaft Length: Custom
Shaft Diameter: 5mm
Shaft Type: Round, D-Cut, Knurling, Thread, Ribbing, etc.
Voltage: 0-36V
Speed: 2000-30000RPM
Torque: 0-1N.m

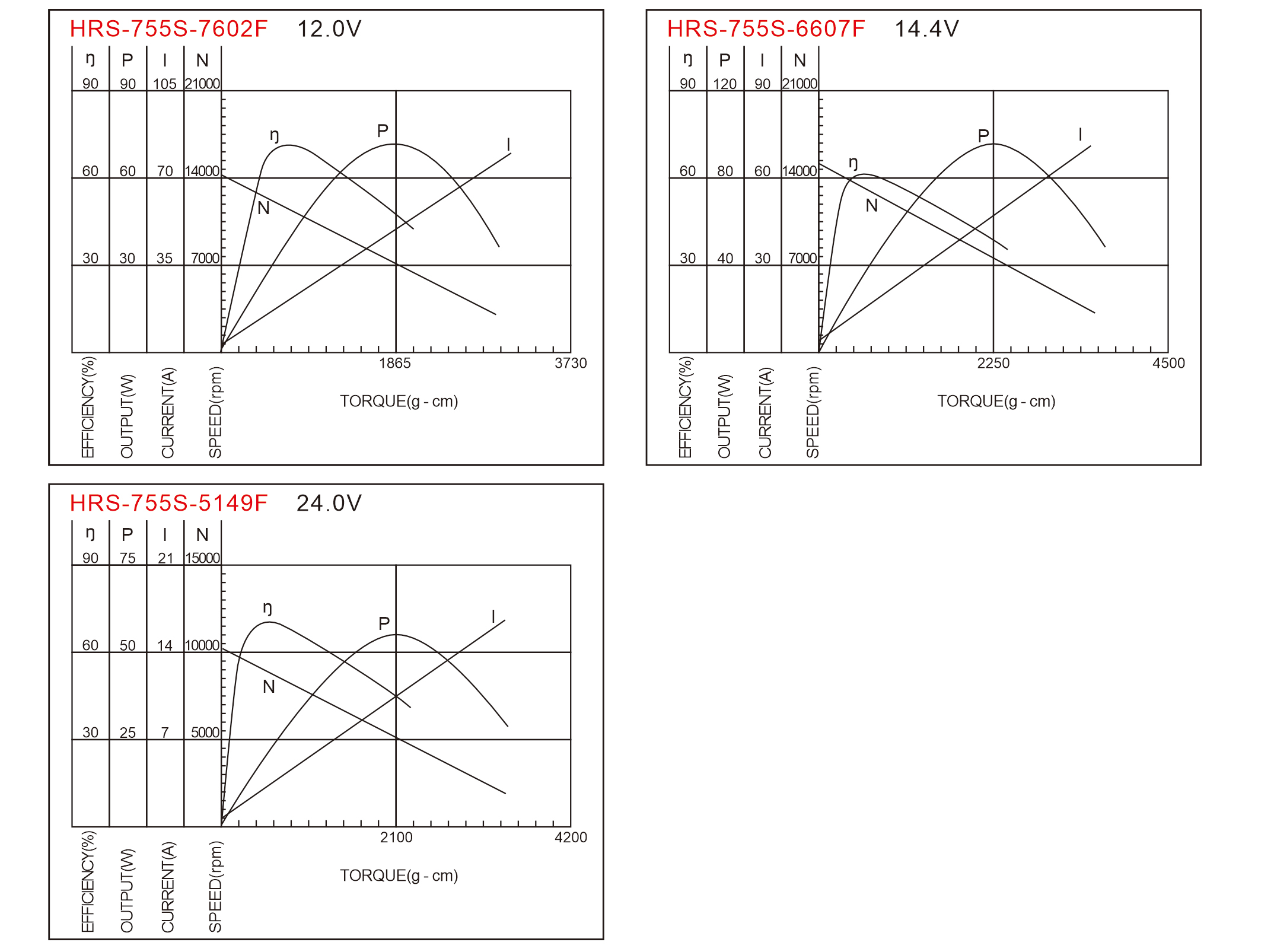

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
HRS-755S-7602F 12.0 - 18.0 12.0V CONSTANT 16300 2.2 14000 13.5 735 72.03 105.6 65.2 82.3 5209 510.5
HRS-755S-6607F 12.0 - 20.0 14.4V CONSTANT 16400 1.6 14280 10.7 645 63.21 94.46 61.3 72 4990 489
HRS-755S-5149F 18.0 - 36.0 24.0V CONSTANT 10630 0.7 9080 3.2 600 58.8 55.87 72.8 17.9 4115 403.3

Please inquire with your sales representative for output, performance, and EMC solution.
