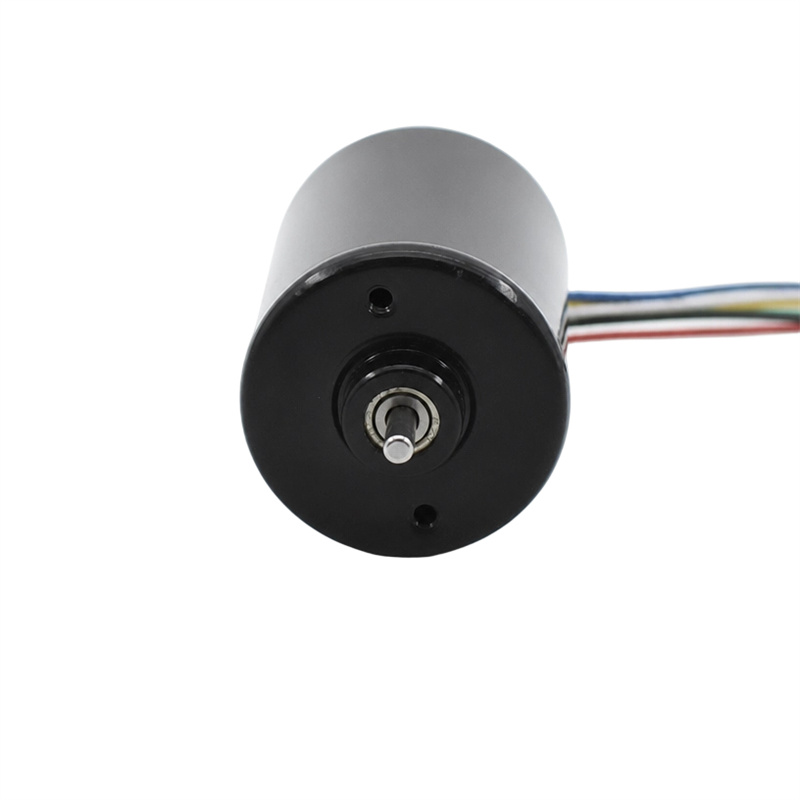

3650BL Brushless DC Motor

1. Compact Motor Footprint For Space Limited Equipment

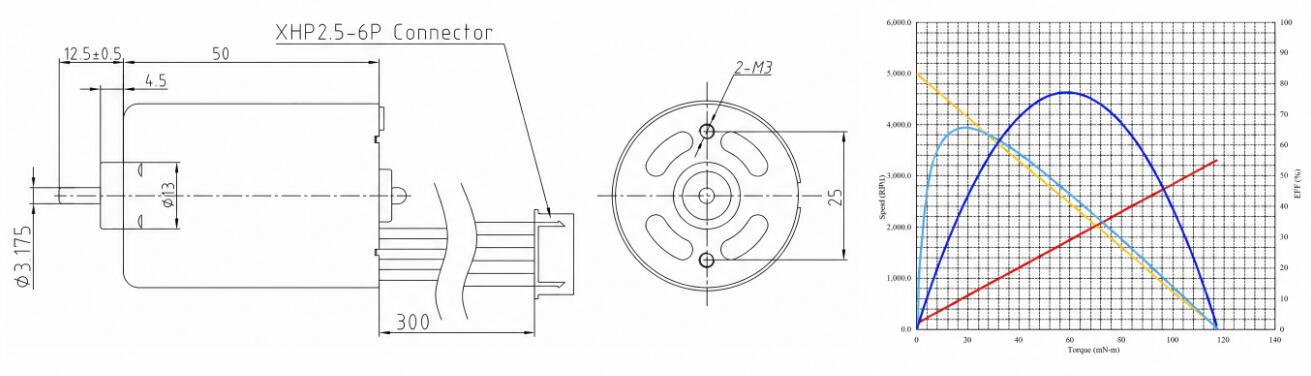

With a 36mm diameter and 50mm body length, the 3650BL provides high-speed drive power in a compact cylindrical structure. The 3.175mm shaft, 2-M3 mounting holes and 25mm mounting spacing make it suitable for compact fans, pumps, small automation modules, actuators and other equipment where installation space is limited.

2. 5000RPM High-Speed Output With Practical Load Performance
The motor reaches 5000RPM at no load and approximately 4000RPM under load, providing rapid rotation for high-speed mechanisms. The 12V version delivers 0.021N·m load torque, while the 24V version delivers 0.022N·m, supporting stable power transmission in compact electromechanical applications.

3. 12V And 24V Versions For Easier System Matching
The 3650BL is available in both 12V and 24V rated versions, helping equipment designers select a suitable motor according to the existing power architecture. The 12V model operates within 3–18V, while the 24V model operates within 6–36V, offering flexibility during product development and system integration.

4. Integrated Control Functions For Smarter Motor Applications
The motor supports PWM speed control, CW/CCW rotation, brake control and FG-6PPR speed feedback through the BLDC wiring interface. Together with the XHP2.5-6P connector, these functions simplify signal connection and support more responsive control in automated equipment, motorized mechanisms and speed-monitoring systems.

5. Quiet Long-Life Operation In Wider Temperature Conditions
The brushless commutation structure and ball bearing support help the motor maintain smooth rotational performance, with a rated noise level of ≤30dB and a service life of over 5,000 hours. Its operating temperature range of -20°C to 120°C supports stable use in equipment exposed to changing ambient conditions.
