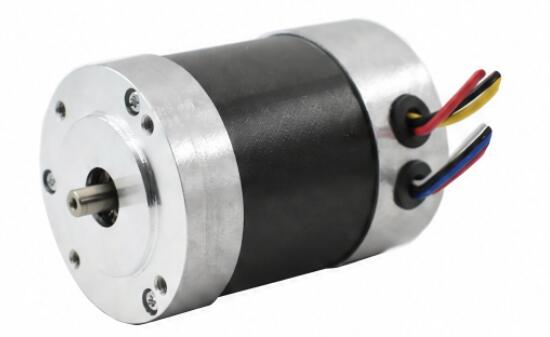

5775BL Brushless DC Motor

1. High-Speed Replacement Motor For Consistent Equipment Performance
Designed for equipment that requires periodic motor replacement, the 5775BL provides reliable 24V power with 4000RPM and 5100RPM options for different application needs. Its brushless structure, ball bearing support and rated lifetime of over 5,000 hours help provide a dependable replacement solution for fans, pumps, automation equipment and other high-speed machinery.

2. Quiet Power for Noise-Sensitive Equipment
With a rated noise level of ≤30dB, this motor delivers high-speed power without creating excessive operating noise. It is well suited for equipment installed near operators or in noise-sensitive environments, including ventilation systems, laboratory equipment, compact automation machinery and precision electromechanical devices.

3. Match Motor Speed To Different Performance Requirements
Two-speed versions allow buyers to select the appropriate balance between speed and output. The 4000RPM model provides up to 0.233N·m torque, while the 5100RPM model reaches up to 4080RPM under load, helping engineers match the motor to fans, pumps, spindles, actuators and other high-speed mechanisms.

4. More Stable Control Through External Driver And Hall Feedback

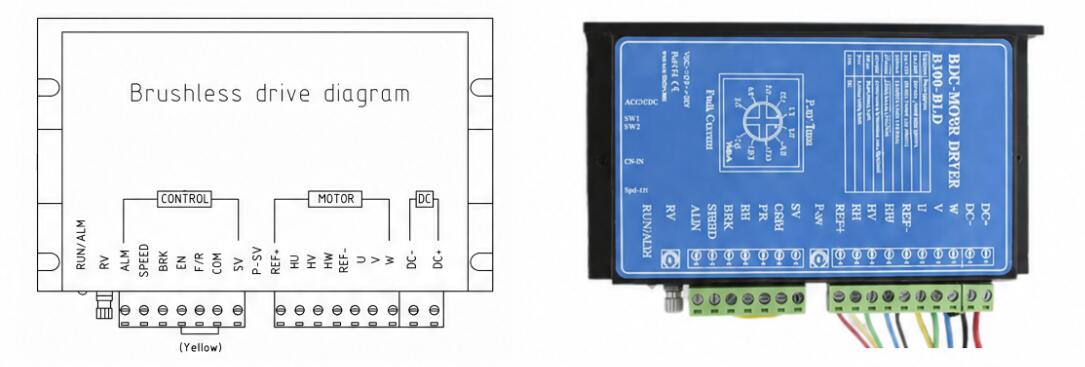

The three-phase BLDC motor uses an external driver and Hall sensor feedback to support controlled start-up, speed regulation, rotation direction and braking functions. This makes it easier to integrate into automated equipment where repeatable motion, responsive control and coordinated operation are required.

5. Built For Demanding Industrial Installation Conditions

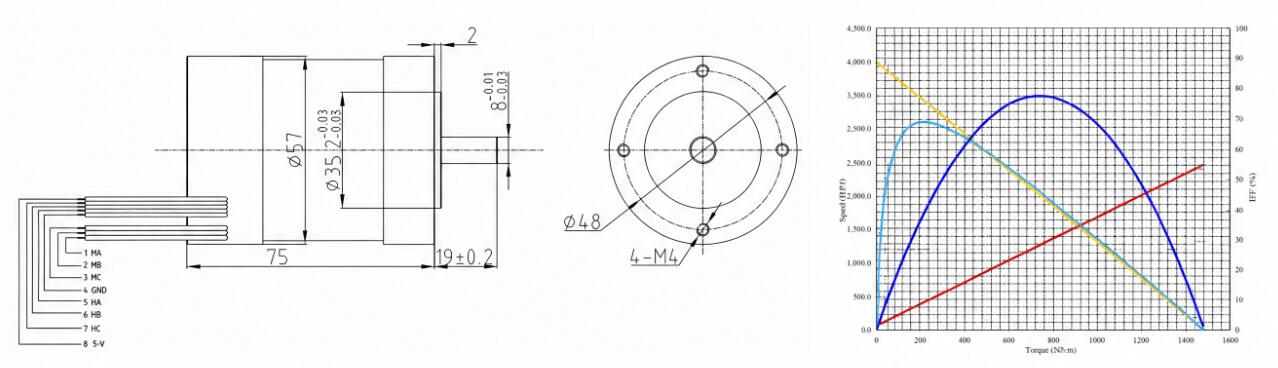

The steel housing, 57mm diameter, 75mm body length and -20°C to 120°C operating temperature range provide a practical solution for compact industrial equipment. Its 6–36V operating range around a 24V-rated system also gives equipment designers greater flexibility during power-system integration and application testing.
