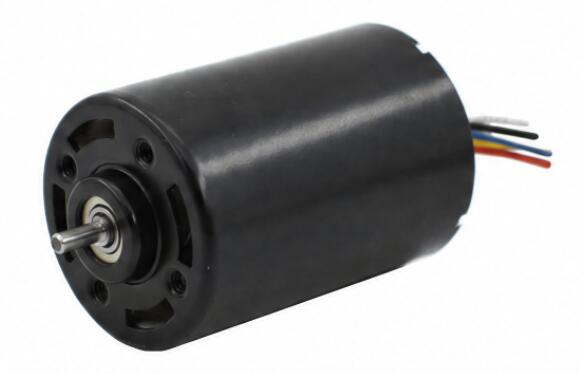

4260BL Brushless DC Motor

1. Long life, maintenance-free: the brushless design has no carbon brushes or wear parts, offering a service life of over 5000 hours with no brush replacement needed during long term operation and lower maintenance costs.
2. Ultra-low noise for quiet operation: no brush friction or commutation sparks, noise level ≤30dB, running smoothly and quietly, ideal for noise-sensitive equipment.
3. Customizable shaft length: φ5 output shaft with length customizable on request, flexibly fitting different mounting spaces and drive structures.
4. High efficiency with dual voltage: the brushless design delivers high efficiency and low heat, with a 24V full-load current of only 1300 mA; available in 12V and 24V with a wide voltage range, fitting various power systems.
5. Smart control with full functions: supports PWM speed control, CW/CCW forward and reverse, and FG speed feedback (6PPR), with a built-in brake; combined with ball bearings and a steel housing, it offers precise, fast response suitable for automation and closed-loop control.

CONTACT US 4260BL Brushless DC Motor
  • 4260BL Brushless DC Motor
  • 4260BL Brushless DC Motor
  • 4260BL Brushless DC Motor
  • 4260BL Brushless DC Motor
  • 4260BL Brushless DC Motor
  • 4260BL Brushless DC Motor

Specifications

4260BL Housing material Steel BLDC Wire Connections Wire Definition
Model 4260BL Red Motor +
Bearing Ball bearing Black Motor -
Commutator Brushless White CW/CCW
Brake available Yes Blue PWM
Lifetime > 5000h Yellow FG-6PPR
Operating temperature -20℃-120℃ 4260BL-1
Noise ≤30dB
Connector /
Full Scale (24VDC) 100%EFF 50watts 10Amps

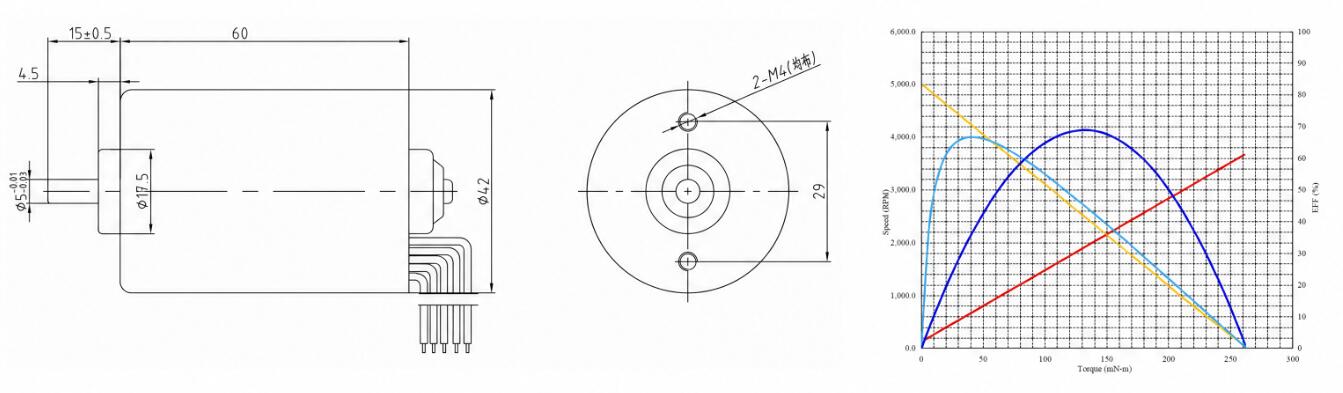

Dimensions(mm)
4260BL-2
Technical Data

DC MOTOR SPEED Gearbox Size  Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM Dia L Min-Max V V mA RPM mA N.m RPM
5000 42 60 4260BL-12V-5000R 3.0-18.0 12 395 5000 24000 0.048 4000
5000 42 60 4260BL-24V-5000R 6.0-36.0 24 210 5000 13000 0.052 4000

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
