42GA38s Gear Motor

1. Strong Drive for Medium- to High-Load Equipment
Designed for equipment that needs dependable driving force, this 24V brushed DC gear motor is suitable for actuators, conveyors, AGVs, lifting mechanisms, robotic systems and industrial automation equipment.

2. Load-Holding Support with Available Brake
For applications that need controlled stopping or position holding, the available brake configuration can help reduce unwanted shaft movement after stopping or power-off. Brake specifications should be confirmed according to the selected model.

3. Flexible Speed and Torque Matching
Multiple reduction ratios allow engineers to choose the output performance that best fits their equipment, whether the priority is faster movement, stronger pulling force or controlled low-speed operation.

4. Optional Encoder for Smarter Motion Control
The optional 5V A/B two-channel D-shape encoder provides speed and position feedback, helping improve monitoring, synchronization and closed-loop control in automated machinery.

5. Easy Integration for OEM Equipment Projects

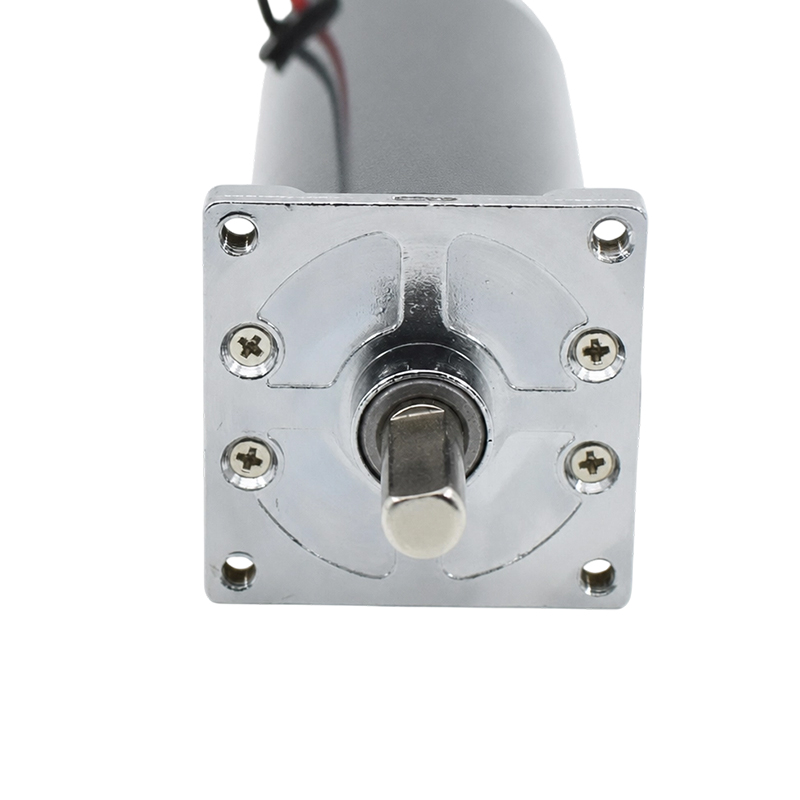

The practical 42mm gearbox format, square mounting flange and customizable configurations make this motor suitable for prototype development, equipment upgrades, OEM projects and repeat production.

CONTACT US 42GA38s Gear Motor
  • 42GA38s Gear Motor
  • 42GA38s Gear Motor
  • 42GA38s Gear Motor

Specifications

 42GA38S-4 Housing material Zinc alloy Encoder Optional
Model TJZ42FO 42GA38S-5
A-B 2 channels
D-Shape Encoder-5V 13PPR
Bearing Oil bearing
Gear Modulus 0.7M
Commutator Brushed
Gear material 40Cr steel
Max pressure force on shaft ≤15kgf
Back lash ≤2°
Brake available Yes
Gear construction Spur gear

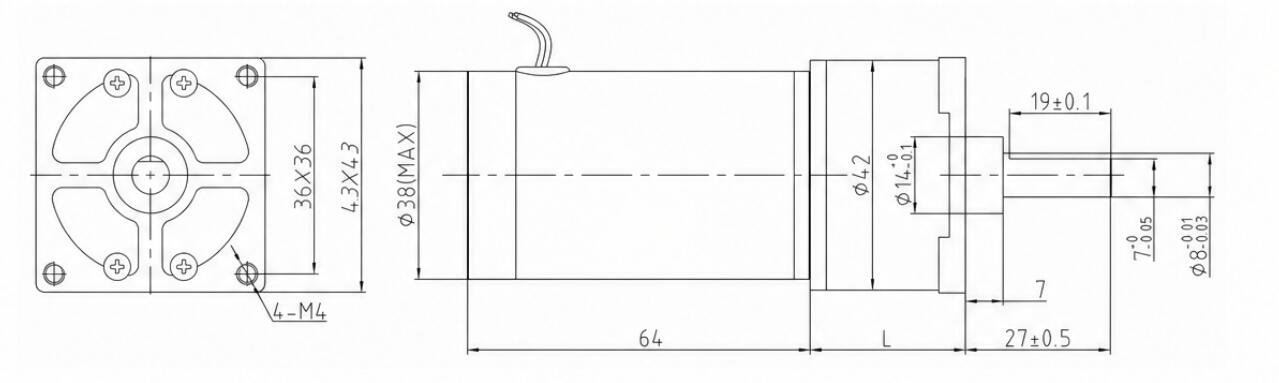

Dimensions(mm)
42GA38S-6

Technical Data

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM Dia L Min-Max V V mA RPM mA N.m RPM
6000 3.1 2 42 25.7 TJZ42FO3.1i-24V-1935.5R 6.0-36.0 24 180 1935.5 670 0.05 1548.4
6000 4.8 2 42 25.7 TJZ42FO4.8i-24V-1250R 6.0-36.0 24 180 1250 670 0.08 1000
6000 6.1 2 42 25.7 TJZ42FO6.1i-24V-983.6R 6.0-36.0 24 180 983.6 670 0.1 786.9
6000 8.3 3 42 25.7 TJZ42FO8.3i-24V-722.9R 6.0-36.0 24 180 722.9 670 0.13 578.3
6000 10.3 3 42 25.7 TJZ42FO10.3i-24V-582.5R 6.0-36.0 24 180 582.5 670 0.16 466
6000 12.8 3 42 25.7 TJZ42FO12.8i-24V-468.8R 6.0-36.0 24 180 468.8 670 0.19 375
6000 16.4 3 42 25.7 TJZ42FO16.4i-24V-365.9R 6.0-36.0 24 180 365.9 670 0.25 292.7
6000 18.2 4 42 25.7 TJZ42FO18.2i-24V-329.7R 6.0-36.0 24 180 329.7 670 0.25 263.7
6000 27.4 4 42 25.7 TJZ42FO27.4i-24V-219R 6.0-36.0 24 180 219 670 0.37 175.2
6000 24.2 4 42 25.7 TJZ42FO24.2i-24V-175.4R 6.0-36.0 24 180 175.4 670 0.47 140.4
6000 43.8 4 42 25.7 TJZ42FO43.8i-24V-137R 6.0-36.0 24 180 137 670 0.6 109.6
6000 59.3 5 42 29.5 TJZ42FO59.3i-24V-101.2R 6.0-36.0 24 180 101.2 670 0.73 80.9
6000 73 5 42 29.5 TJZ42FO73i-24V-82.2R 6.0-36.0 24 180 82.2 670 0.9 65.8
6000 91.2 5 42 29.5 TJZ42FO91.2i-24V-65.8R 6.0-36.0 24 180 65.8 670 1.12 52.6
6000 120 5 42 29.5 TJZ42FO120i-24V-50R 6.0-36.0 24 180 50 670 1.47 40
6000 158 6 42 32.7 TJZ42FO158i-24V-38R 6.0-36.0 24 180 38 670 1.75 30.4
6000 195 6 42 32.7 TJZ42FO195i-24V-30.8R 6.0-36.0 24 180 30.8 670 2.16 24.6
6000 243 6 42 32.7 TJZ42FO243i-24V-24.7R 6.0-36.0 24 180 24.7 670 2.5 19.8
6000 323 6 42 32.7 TJZ42FO323i-24V-18.6R 6.0-36.0 24 180 18.6 670 2.5 14.9

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
