42GB775 Gear Motor

1. Turn High Speed Motor Power into Usable Torque
The gearbox converts the motor’s high-speed rotation into a slower and stronger output, making this gear motor suitable for driving mechanisms that require more pulling force and load capacity.

2. Better Control for Real-World Machinery
Compared with a bare DC motor, the geared output provides more manageable speed and movement, helping equipment run in a smoother and more controlled way.

3. Match Different Motion Requirements with One Platform
Different reduction ratios allow machine builders to select the right output speed and torque for conveyors, actuators, feeders, robotic mechanisms and lifting applications without changing the basic motor design.

4. Stable Power Transmission for Continuous Equipment Operation
The metal spur gear transmission is designed to deliver consistent mechanical power from the motor to the output shaft, supporting repeatable movement in automation equipment and machine mechanisms.

5. A Flexible Drive Solution for OEM Integration
With a compact gearbox structure, configurable output performance and optional encoder support, this motor can be adapted for new equipment development, motor replacement and customized OEM projects.

CONTACT US 42GB775 Gear Motor

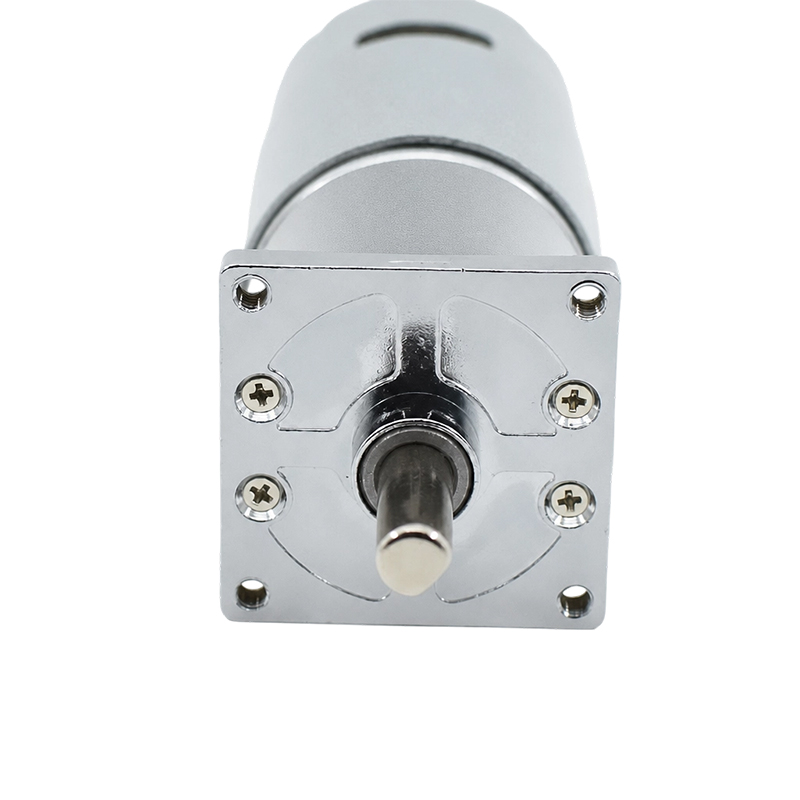

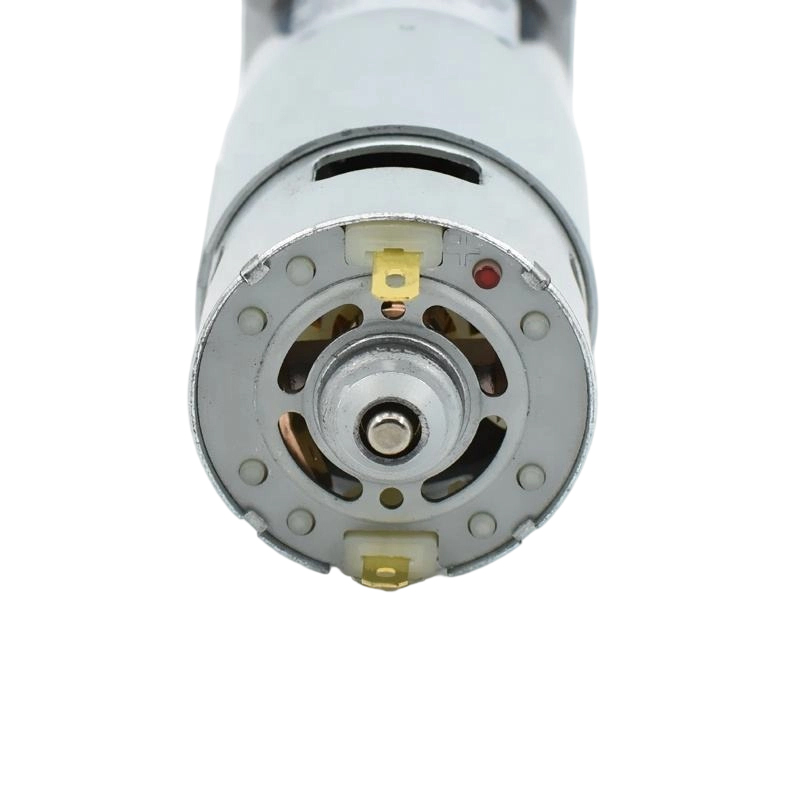

  • 42GB775 Gear Motor
  • 42GB775 Gear Motor
  • 42GB775 Gear Motor

Specifications

 42GB775-4 Housing material Zinc alloy Encoder Optional
Model TJP42FT 42GB775-5
A-B 2 channels
775Encoder-5V 13PPR
Bearing Oil bearing
Gear Modulus 0.7M
Commutator Brushed
Gear material 40Cr steel
Max pressure force on shaft ≤15kgf
Back lash ≤2°
Brake available No
Gear construction Spur gear

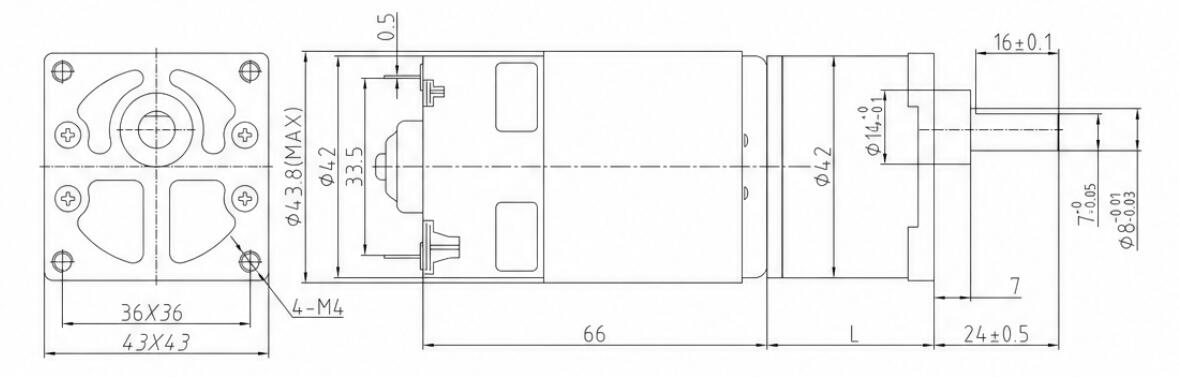

Dimensions(mm)
42GB775-6

Technical Data

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM Dia L Min-Max V V mA RPM mA N.m RPM
7000 5.4 2 42 25.7 TJP42FT5.4i-12V-1296.3R 3.0-18.0 12 760 1296.3 5800 0.34 1037
7000 6.8 2 42 25.7 TJP42FT6.8i-12V-1029.4R 3.0-18.0 12 760 1029.4 5800 0.42 823.5
7000 8.6 2 42 25.7 TJP42FT8.6i-12V-814R 3.0-18.0 12 760 814 5800 0.54 651.2
7000 9.7 3 42 29.3 TJP42FT9.7i-12V-721.6R 3.0-18.0 12 760 721.6 5800 0.55 577.3
7000 11.8 3 42 29.3 TJP42FT11.8i-12V-593.2R 3.0-18.0 12 760 593.2 5800 0.66 474.6
7000 14.6 3 42 29.3 TJP42FT14.6i-12V-479.5R 3.0-18.0 12 760 479.5 5800 0.82 383.6
7000 18.2 3 42 29.3 TJP42FT18.2i-12V-384.6R 3.0-18.0 12 760 384.6 5800 1.02 307.7
7000 25.9 4 42 29.3 TJP42FT25.9i-12V-270.3R 3.0-18.0 12 760 270.3 5800 1.31 216.2
7000 31.6 4 42 29.3 TJP42FT31.6i-12V-221.5R 3.0-18.0 12 760 221.5 5800 1.6 177.2
7000 38.9 4 42 29.3 TJP42FT38.9i-12V-179.9R 3.0-18.0 12 760 179.9 5800 1.97 144
7000 48.6 4 42 29.3 TJP42FT48.6i-12V-144R 3.0-18.0 12 760 144 5800 2.46 115.2
7000 62.2 4 42 29.3 TJP42FT62.2i-12V-112.5R 3.0-18.0 12 760 112.5 5800 2.5 90
7000 84.2 5 42 32.6 TJP42FT84.2i-12V-83.1R 3.0-18.0 12 760 83.1 5800 2.5 66.5
7000 104 5 42 32.6 TJP42FT104i-12V-67.3R 3.0-18.0 12 760 67.3 5800 2.5 53.8
7000 130 5 42 32.6 TJP42FT130i-12V-53.8R 3.0-18.0 12 760 53.8 5800 2.5 43.1
7000 170 5 42 32.6 TJP42FT170i-12V-41.2R 3.0-18.0 12 760 41.2 5800 2.5 32.9
7000 225 6 42 36 TJP42FT225i-12V-31.1R 3.0-18.0 12 760 31.1 5800 2.5 24.9
7000 346 6 42 36 TJP42FT346i-12V-20.2R 3.0-18.0 12 760 20.2 5800 2.5 16.2
7000 459 6 42 36 TJP42FT459i-12V-15.3R 3.0-18.0 12 760 15.3 5800 2.5 12.2

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
