50GB555 50mm Gear Motor

1. Get More Driving Force from a Compact Motor Solution
The integrated gearbox increases the motor’s usable output torque, helping equipment move loads more effectively without relying on a separate external reduction system.

2. Turn Fast Motor Rotation into Controlled Machine Movement
A geared output makes high-speed motor power easier to apply to real mechanisms, supporting smoother low-speed movement for actuators, feeders, conveyors and robotic systems.

3. Reduce the Need for Extra Transmission Components
With the motor and spur gearbox combined into one drive unit, equipment designers can simplify the transmission layout, save assembly work and reduce the number of separate components in the system.

4. Select the Right Balance between Speed and Torque
Multiple reduction ratios allow buyers to choose the output performance according to the application. Lower ratios support faster movement, while higher ratios provide stronger pulling force and slower controlled operation.

5. Designed for Practical Equipment Integration
The standard cylindrical motor body, front mounting structure and optional encoder support make this gear motor suitable for equipment development, motor replacement, automation upgrades and OEM projects.

CONTACT US 50GB555 50mm Gear Motor

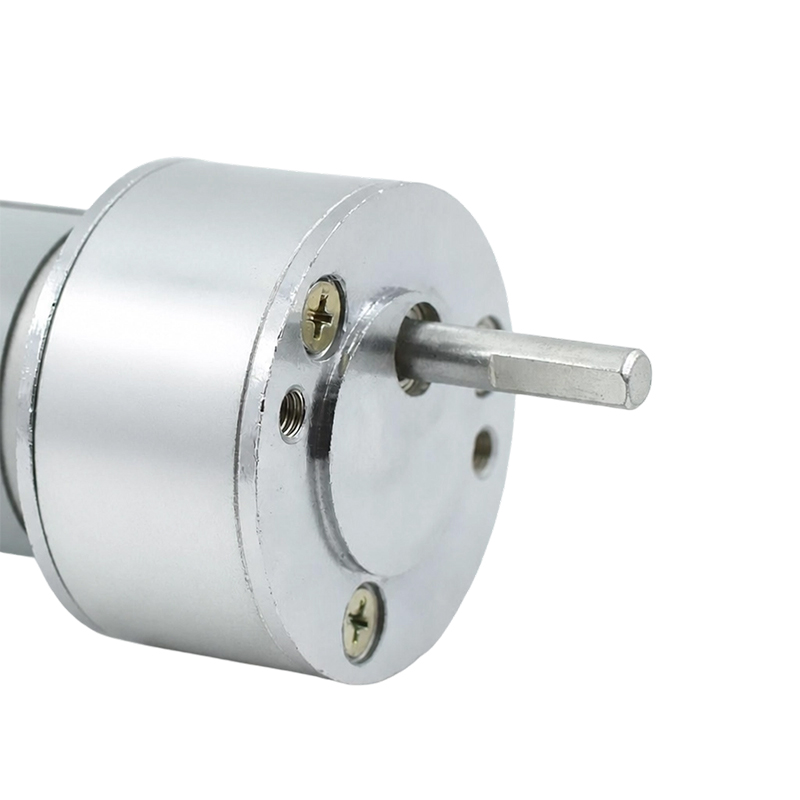

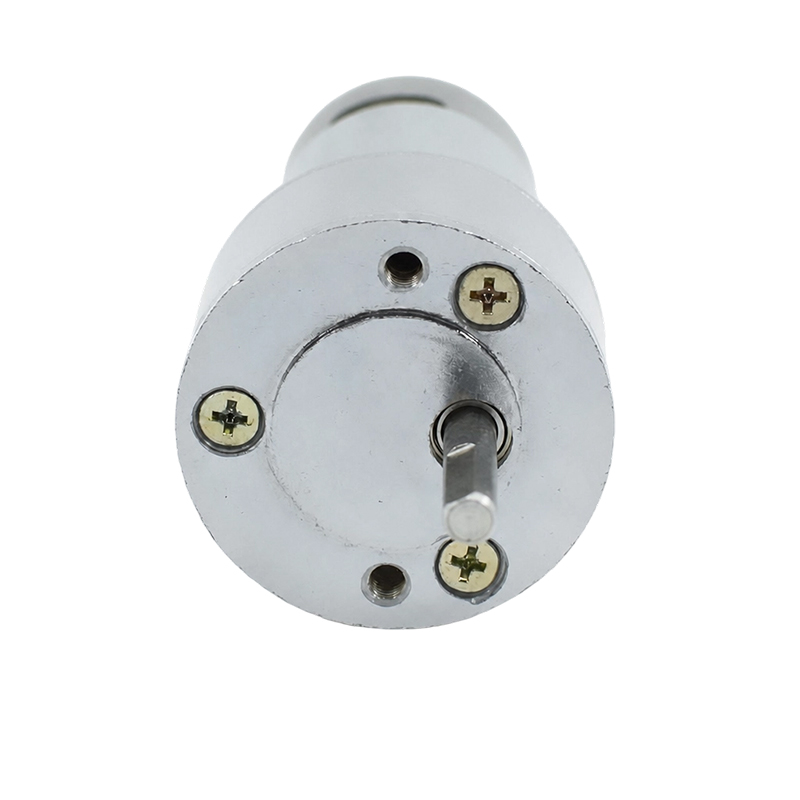

  • 50GB555 50mm Gear Motor
  • 50GB555 50mm Gear Motor
  • 50GB555 50mm Gear Motor

Specifications

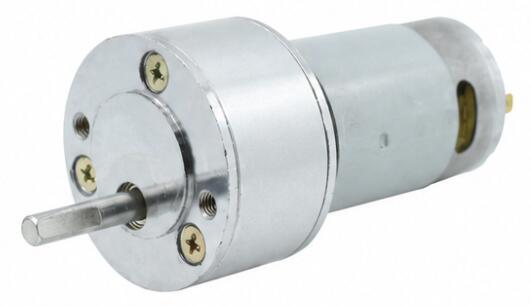

 50GB555-4 Housing material Zinc alloy Encoder Optional
Model TJP50RG 50GB555-5
A-B 2 channels
555Encoder-5V 12PPR
Bearing Ball bearing
Gear Modulus 0.7M
Commutator Brushed
Gear material 40Cr steel
Max pressure force on shaft ≤15kgf
Back lash ≤2°
Brake available No
Gear construction Spur gear

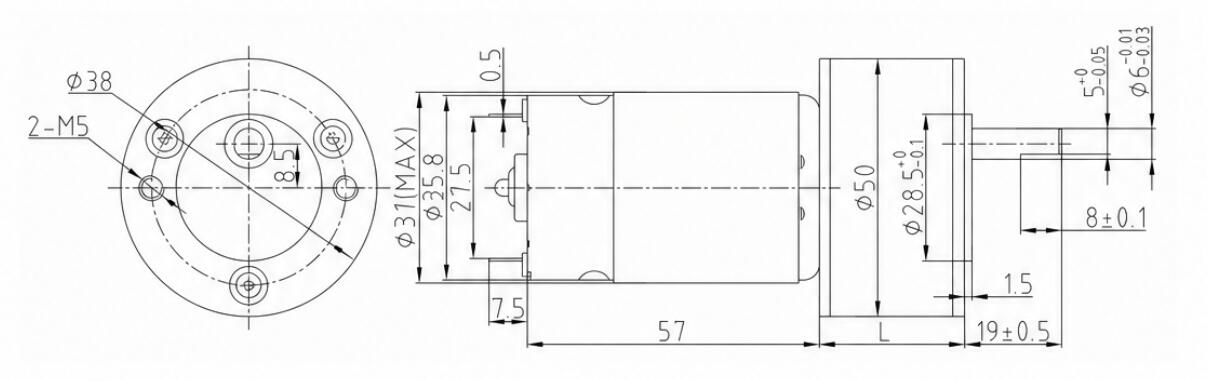

Dimensions(mm)
50GB555-6

Technical Data

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM Dia L Min-Max V V mA RPM mA N.m RPM
7600 15.5 3 50 24.3 TJP50RG15.5i-24V-490.3R 6.0-36.0 24 220 490.3 950 0.26 392.3
7600 19 3 50 24.3 TJP50RG19i-24V-400R 6.0-36.0 24 220 400 950 0.32 320
7600 23.9 3 50 24.3 TJP50RG23.9i-24V-318R 6.0-36.0 24 220 318 950 0.41 254.4
7600 30.5 3 50 24.3 TJP50RG30.5i-24V-249.2R 6.0-36.0 24 220 249.2 950 0.52 199.3
7600 44 4 50 28.3 TJP50RG44i-24V-172.7R 6.0-36.0 24 220 172.7 950 0.67 198.2
7600 68 4 50 28.3 TJP50RG68i-24V-111.8R 6.0-36.0 24 220 111.8 950 1.04 89.4
7600 86 4 50 28.3 TJP50RG86i-24V-88.4R 6.0-36.0 24 220 88.4 950 1.31 70.7
7600 109 4 50 28.3 TJP50RG109i-24V-69.7R 6.0-36.0 24 220 69.7 950 1.66 55.8
7600 134 4 50 28.3 TJP50RG134i-24V-56.7R 6.0-36.0 24 220 56.7 950 2.05 45.4
7600 158 5 50 32.3 TJP50RG158i-24V-48.1R 6.0-36.0 24 220 48.1 950 2.17 38.5
7600 199 5 50 32.3 TJP50RG199i-24V-38.2R 6.0-36.0 24 220 38.2 950 2.5 30.6
7600 253 5 50 32.3 TJP50RG253i-24V-30R 6.0-36.0 24 220 30 950 2.5 24
7600 311 5 50 32.3 TJP50RG311i-24V-24.4R 6.0-36.0 24 220 24.4 950 2.5 19.5
7600 481 5 50 32.3 TJP50RG481i-24V-15.8R 6.0-36.0 24 220 15.8 950 2.5 12.6
7600 567 6 50 35.8 TJP50RG567i-24V-13.4R 6.0-36.0 24 220 13.4 950 2.5 10.7
7600 876 6 50 35.8 TJP50RG876i-24V-8.7R 6.0-36.0 24 220 8.7 950 2.5 6.9
7600 1101 6 50 35.8 TJP50RG1101i-24V-6.9R 6.0-36.0 24 220 6.9 950 2.5 5.5
7600 1401 6 50 35.8 TJP50RG1401i-24V-5.4R 6.0-36.0 24 220 5.4 950 2.5 4.3
7600 1725 6 50 35.8 TJP50RG1725i-24V-4.4R 6.0-36.0 24 220 4.4 950 2.5 3.5

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
