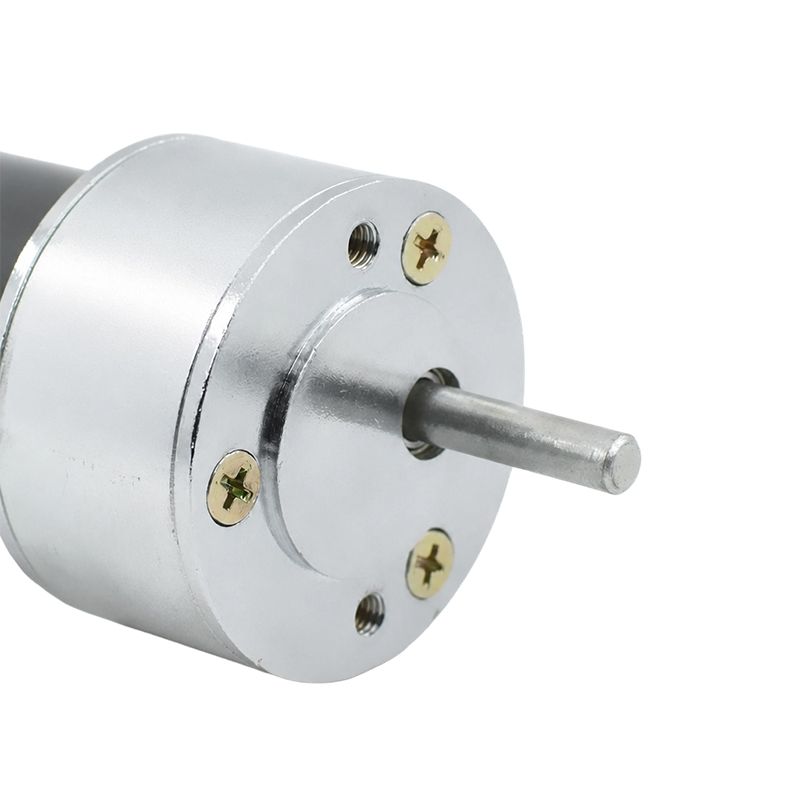

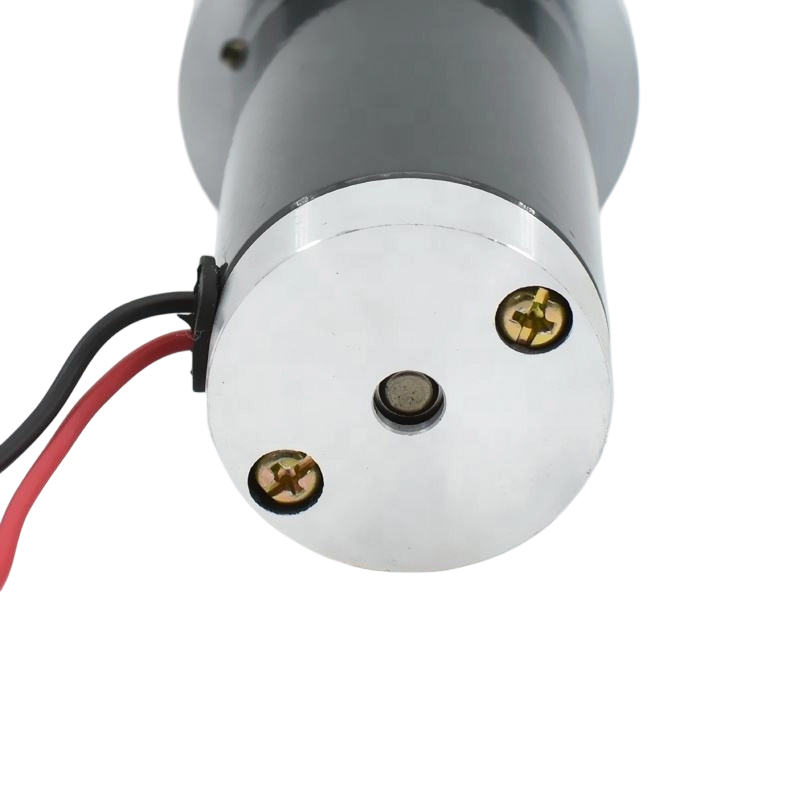

50GB38S 50mm Gear Motor

1. Convert High-Speed Rotation into Stronger Output
The integrated spur gearbox reduces the motor’s high-speed rotation and increases usable output torque, helping the motor handle pushing, lifting, feeding and load-moving tasks more effectively.

2. Improve Motion Control for Mechanical Equipment
Gear reduction makes the output speed easier to match with real machine movement, supporting smoother and more controlled operation in actuators, conveyors, robotic mechanisms and automation systems.

3. Choose the Right Speed and Torque for Your Application
Different reduction ratios are available within the same motor series. Select a faster output for feeding and conveying, or a slower and stronger output for lifting, pushing and load-handling mechanisms.

4. Simplify Machine Design and Assembly
The motor and gearbox are integrated into one drive unit, helping reduce the need for separate reducers, couplings and additional transmission parts. This can make equipment layout and installation more straightforward.

5. Suitable for Standard Drive and Intelligent Control Systems
Use it as a regular geared drive motor or add the optional 5V A/B two-channel encoder for speed and position feedback. The available brake option can also help control shaft movement when the motor stops.

CONTACT US 50GB38S 50mm Gear Motor
  • 50GB38S 50mm Gear Motor
  • 50GB38S 50mm Gear Motor
  • 50GB38S 50mm Gear Motor
  • 50GB38S 50mm Gear Motor

Specifications

 50GB38S-5 Housing material Zinc alloy Encoder Optional
Model TJP50RO 50GB38S-6
A-B 2 channels
D-Shape Encoder-5V 13PPR
Bearing Ball bearing
Gear Modulus 0.7M
Commutator Brushed
Gear material 40Cr steel
Max pressure force on shaft ≤15kgf
Back lash ≤2°
Brake available Yes
Gear construction Spur gear

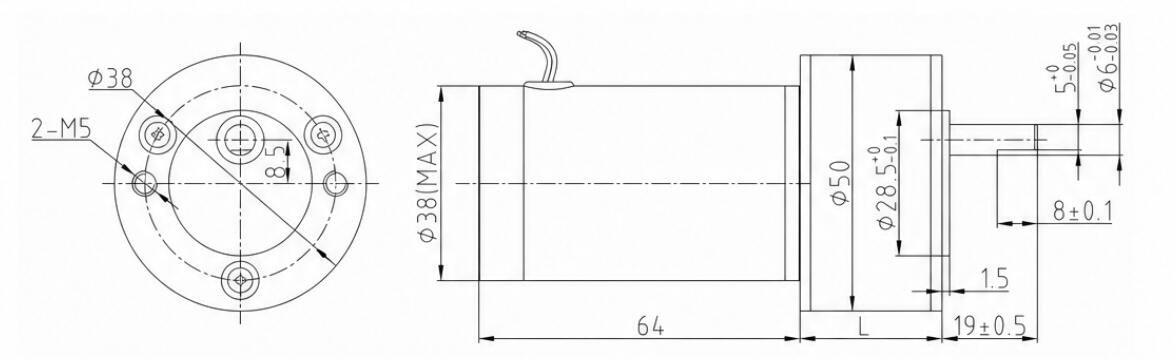

Dimensions(mm)
50GB38S-7

Technical Data

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM Dia L Min-Max V V mA RPM mA N.m RPM
5000 15.5 3 50 24.3 TJP50RO15.5i-12V-322.6R 3.0-18.0 12 300 322.6 1000 0.21 258.1
5000 19 3 50 24.3 TJP50RO19i-12V-263.2R 3.0-18.0 12 300 263.2 1000 0.26 210.5
5000 23.9 3 50 24.3 TJP50RO23.9i-12V-209.2R 3.0-18.0 12 300 209.2 1000 0.32 167.4
5000 30.5 3 50 24.3 TJP50RO30.5i-12V-163.9R 3.0-18.0 12 300 163.9 1000 0.41 131.1
5000 44 4 50 28.3 TJP50RO44i-12V-113.6R 3.0-18.0 12 300 113.6 1000 0.54 90.9
5000 68 4 50 28.3 TJP50RO68i-12V-73.5R 3.0-18.0 12 300 73.5 1000 0.83 58.8
5000 86 4 50 28.3 TJP50RO86i-12V-58.1R 3.0-18.0 12 300 58.1 1000 1.05 46.5
5000 109 4 50 28.3 TJP50RO109i-12V-45.9R 3.0-18.0 12 300 45.9 1000 1.33 36.7
5000 134 4 50 28.3 TJP50RO134i-12V-37.3R 3.0-18.0 12 300 37.3 1000 1.64 29.9
5000 158 5 50 32.3 TJP50RO158i-12V-31.6R 3.0-18.0 12 300 31.6 1000 1.74 25.3
5000 199 5 50 32.3 TJP50RO199i-12V-25.1R 3.0-18.0 12 300 25.1 1000 2.19 20.1
5000 253 5 50 32.3 TJP50RO253i-12V-19.8R 3.0-18.0 12 300 19.8 1000 2.5 15.8
5000 311 5 50 32.3 TJP50RO311i-12V-16.1R 3.0-18.0 12 300 16.1 1000 2.5 12.9
5000 481 5 50 32.3 TJP50RO481i-12V-10.4R 3.0-18.0 12 300 10.4 1000 2.5 8.3
5000 567 6 50 35.8 TJP50RO567i-12V-8.8R 3.0-18.0 12 300 8.8 1000 2.5 7.1
5000 876 6 50 35.8 TJP50RO876i-12V-5.7R 3.0-18.0 12 300 5.7 1000 2.5 4.6
5000 1101 6 50 35.8 TJP50RO1101i-12V-4.5R 3.0-18.0 12 300 4.5 1000 2.5 3.6
5000 1401 6 50 35.8 TJP50RO1401i-12V-3.6R 3.0-18.0 12 300 3.6 1000 2.5 2.9
5000 1725 6 50 35.8 TJP50RO1725i-12V-2.9R 3.0-18.0 12 300 2.9 1000 2.5 2.3

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
