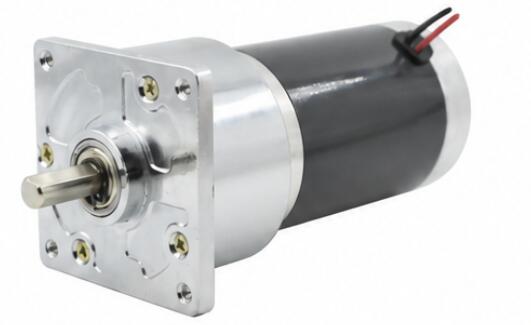

60GA50S 60mm Gear Motor

1. Strong Output for Load-Moving Applications
The geared drive converts motor speed into higher usable torque, helping equipment handle pushing, lifting, conveying and positioning tasks more effectively.

2. Load Holding When Stopping Matters
The available brake configuration helps control shaft movement when the motor stops, making this gear motor suitable for lifting mechanisms, electric actuators, positioning systems and other applications where load holding is important.

3. One Drive Assembly, Fewer Transmission Parts
The motor and spur gearbox are integrated into one compact drive unit, helping reduce the need for an external reducer, coupling or additional transmission stage during equipment design.

4. Flexible Output for Different Machine Speeds
With multiple reduction ratios, buyers can select a faster output for material feeding and conveying, or a slower and stronger output for lifting, pushing and load-handling mechanisms.

5. Easy to Integrate into OEM Equipment
The square mounting flange, metal gear construction and optional feedback configuration make this motor suitable for machinery development, equipment upgrades, replacement projects and customized OEM applications.

CONTACT US 60GA50S 60mm Gear Motor
  • 60GA50S 60mm Gear Motor
  • 60GA50S 60mm Gear Motor
  • 60GA50S 60mm Gear Motor

Specifications

 60GA50S60mmGearMotor Housing material Zinc alloy Encoder Optional

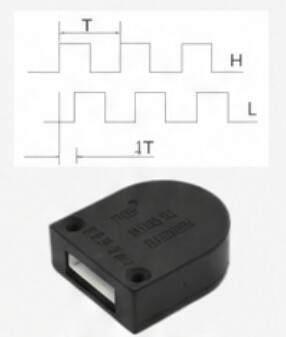

Model TJZ60FR 60GA50S60mmGearMotor-1
A-B 2 channels
D-Shape Encoder-5V 13PPR
Bearing Ball bearing
Gear Modulus 1.25M
Commutator Brushed
Gear material 40Cr steel
Max pressure force on shaft ≤20kgf
Back lash ≤2°
Brake available Yes
Gear construction Spur gear

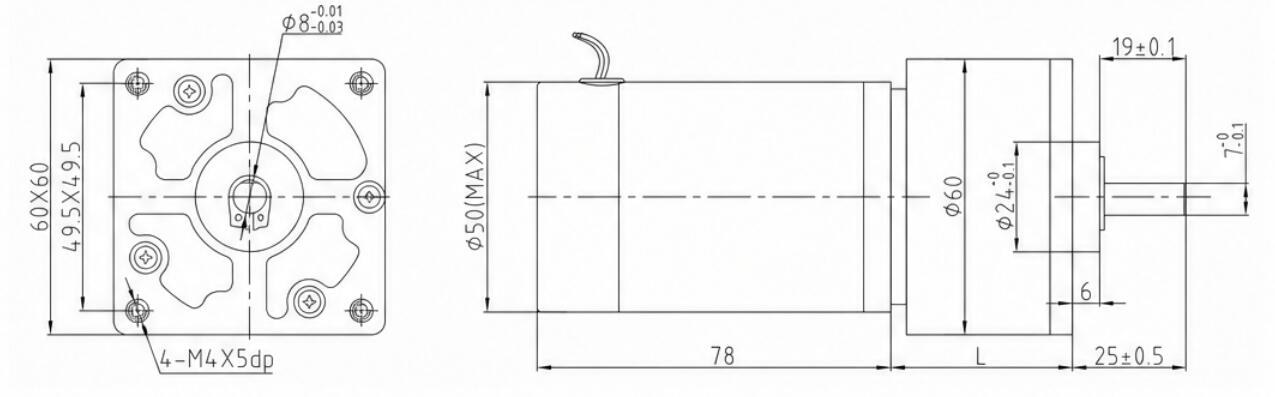

Dimensions(mm)
60GA50S60mmGearMotor-2

Technical Data

DC MOTOR SPEED
(RPM)		 Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Dia L Operating Range
(Min-Max V)		 Rated Voltage
(V)		 Current
(mA)		 Speed
(RPM)		 Current
(mA)		 Torque
(N.m)		 Speed
(RPM)
6000 6.8 2 60 28.5 TJZ60FR6.8i-24V-882.4R 6 36 24 1050 882.4 5500 0.94 705.9
6000 7.9 2 60 28.5 TJZ60FR7.9i-24V-759.5R 6 36 24 1050 759.5 5500 1.09 607.6
6000 9.8 2 60 28.5 TJZ60FR9.8i-24V-612.2R 6 36 24 1050 612.2 5500 1.36 489.8
6000 10.5 2 60 28.5 TJZ60FR10.5i-24V-571.4R 6 36 24 1050 571.4 5500 1.45 457.1
6000 11.6 2 60 28.5 TJZ60FR11.6i-24V-517.2R 6 36 24 1050 517.2 5500 1.6 413.8
6000 18.6 3 60 33.5 TJZ60FR18.6i-24V-322.6R 6 36 24 1050 322.6 5500 2.31 258.1
6000 24 3 60 33.5 TJZ60FR24i-24V-250R 6 36 24 1050 250 5500 2.99 200
6000 28 3 60 33.5 TJZ60FR28i-24V-214.3R 6 36 24 1050 214.3 5500 3.48 171.4
6000 33.6 3 60 33.5 TJZ60FR33.6i-24V-178.6R 6 36 24 1050 178.6 5500 4.18 142.9
6000 60 4 60 36 TJZ60FR60i-24V-100R 6 36 24 1050 100 5500 6.72 80
6000 83 4 60 36 TJZ60FR83i-24V-72.3R 6 36 24 1050 72.3 5500 9.3 57.8
6000 91 4 60 36 TJZ60FR91i-24V-65.9R 6 36 24 1050 65.9 5500 10 52.7
6000 100 4 60 36 TJZ60FR100i-24V-60R 6 36 24 1050 60 5500 10 48
6000 108 4 60 36 TJZ60FR108i-24V-55.6R 6 36 24 1050 55.6 5500 10 44.4
6000 191 5 60 40 TJZ60FR191i-24V-31.4R 6 36 24 1050 31.4 5500 10 25.1
6000 226 5 60 40 TJZ60FR226i-24V-26.5R 6 36 24 1050 26.5 5500 10 21.2
6000 265 5 60 40 TJZ60FR265i-24V-22.6R 6 36 24 1050 22.6 5500 10 18.1
6000 345 5 60 40 TJZ60FR345i-24V-17.4R 6 36 24 1050 17.4 5500 10 13.9
6000 379 5 60 40 TJZ60FR379i-24V-15.8R 6 36 24 1050 15.8 5500 10 12.7

Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
